01/02
4-33
8825/8830 Printer
REP 8.10
Repairs and Adjustments
6. (Figure 1): Remove the Media Transport Drive Motor Assembly.
7. (Figure 2): Remove the motor from the mounting plate.

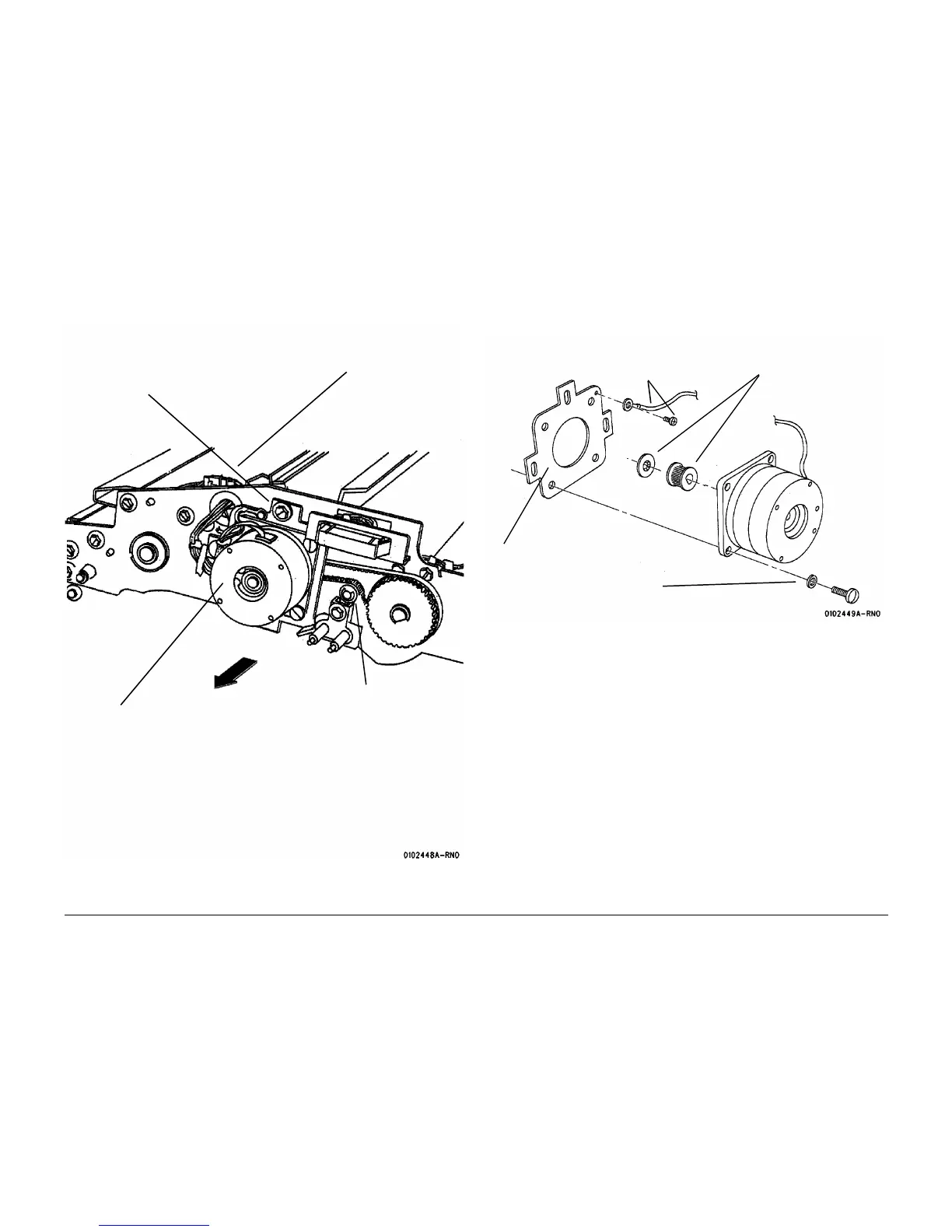

Figure 1 Removing the Motor
Replacement
1. Ensure that the belt is over the Idler Pulley.
2. (Figure 2): If a new motor is being installed, use the Drive Pulley from the old assembly.
Figure 2 Removing the Media Transport Drive Motor Assembly
1
Disconnect the
connector
2
Remove the
screws (3)
3
Remove the
Motor Assembly
Idler Pulley
1
Remove the ground
wire and the screw
2
Remove the retaining
clip and the Drive Pulley
3
Remove the screws
and washers (3)
4
Remove the
mounting plate
To Next Page
