8825/8830 Printer
REP 7.1
Repairs and Adjustments
REP 7.1 Media Supply Drawer
Parts List on PL 7.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: All three Roll Supply Drawer Assemblies are removed the same way. The 8825 comes
with Media Supply Drawer 1 or 2. The customer can order it with 2 drawers or have Drawer 2
retrofitted on site. (Drawer 2 is TAG 90.)
Removal
1. Open the Media Supply Drawer that is to be removed.
2. (Figure 1): Remove the Cover.

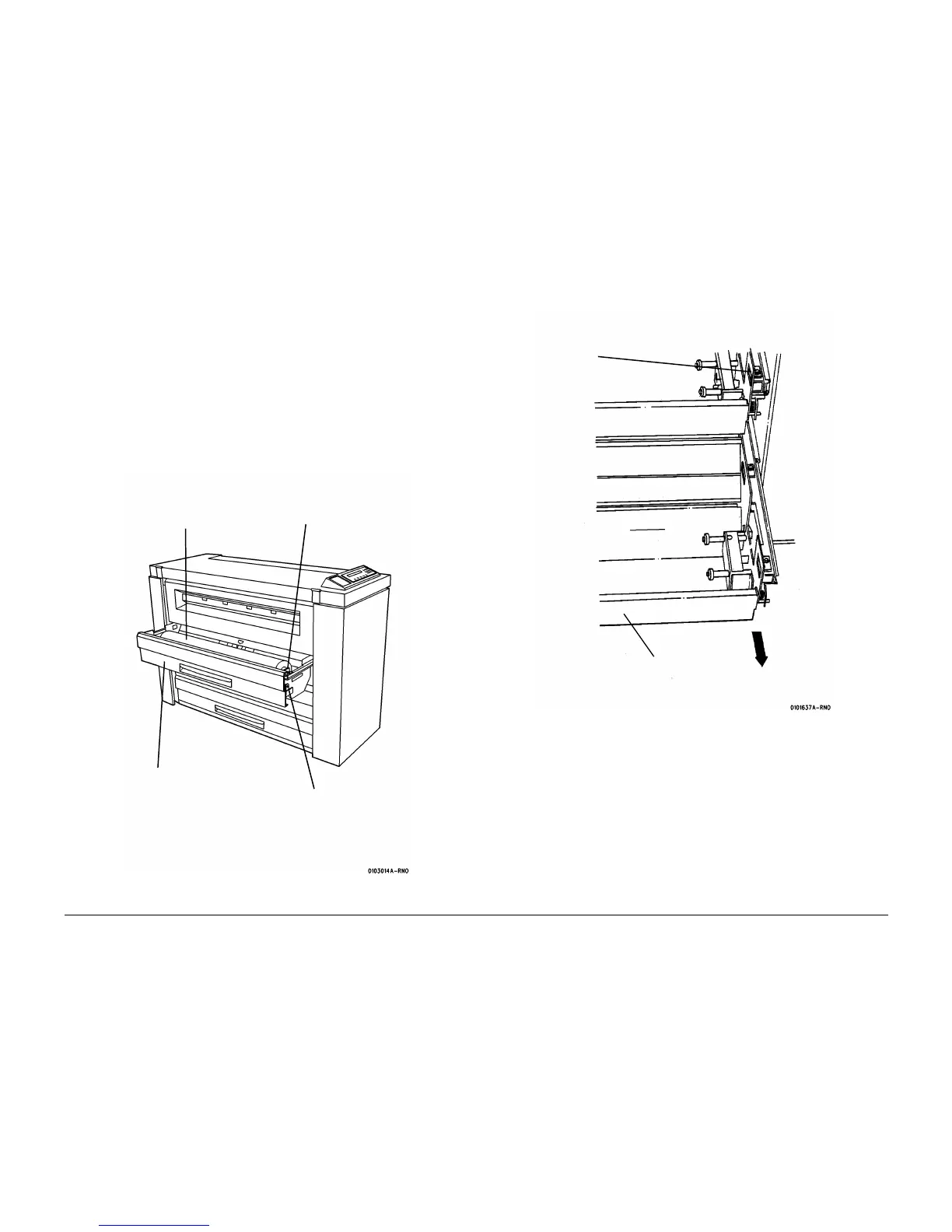

Figure 1 Removing the Cover
3. (Figure 2): Remove the Media Supply Drawer.
Figure 2 Removing the Media Supply Drawer
1
Remove the
Media Roll
4
Remove the
Cover
3
Remove the screws
(one each side)
2
Loosen the
screws (one each
side)
1
Remove the screws (one at
each end)
2
Remove the Media
Supply Drawer
To Next Page
