Xerox 8825 - PL 9.5 A Drum Cleaning (Part 1 of 3)

01/02
5-29
8825/8830 Printer
PL 9.5A
Parts Lists

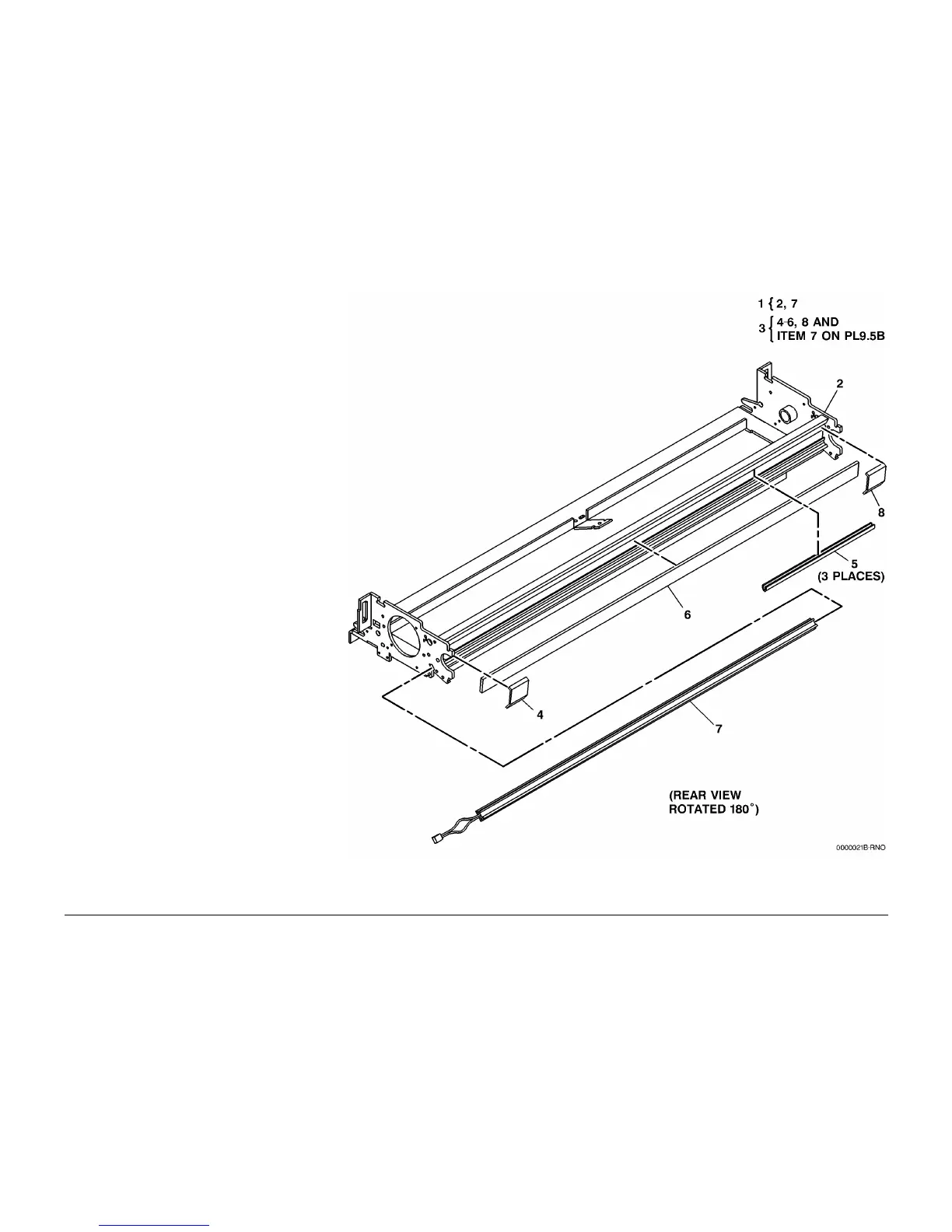

PL 9.5A Drum Cleaning (Part 1 of 3)
Item Part Description
1 – Part of Xerographic Module
Assembly (REF: PL 9.1 Item 4)
2 – Xerographic Frame (P/O PL 9.5A
Item 1)
3 600K59060 Cleaning Blade Kit (REP 9.4)
4 – Blade Seal (P/O PL 9.5A Item 3)
5 – Cleaner Blade Retainer (P/O PL
9.5A Item 3)
6 – Cleaner Blade (P/O PL 9.5A Item
3)
7 101K25780 Discharge LED
8 – Blade Seal (P/O PL 9.5A Item 3)
