Xerox 8825 - PL 9.5 B Drum Cleaning (Part 2 of 3)

01/02
5-30
8825/8830 Printer
PL 9.5B
Parts Lists

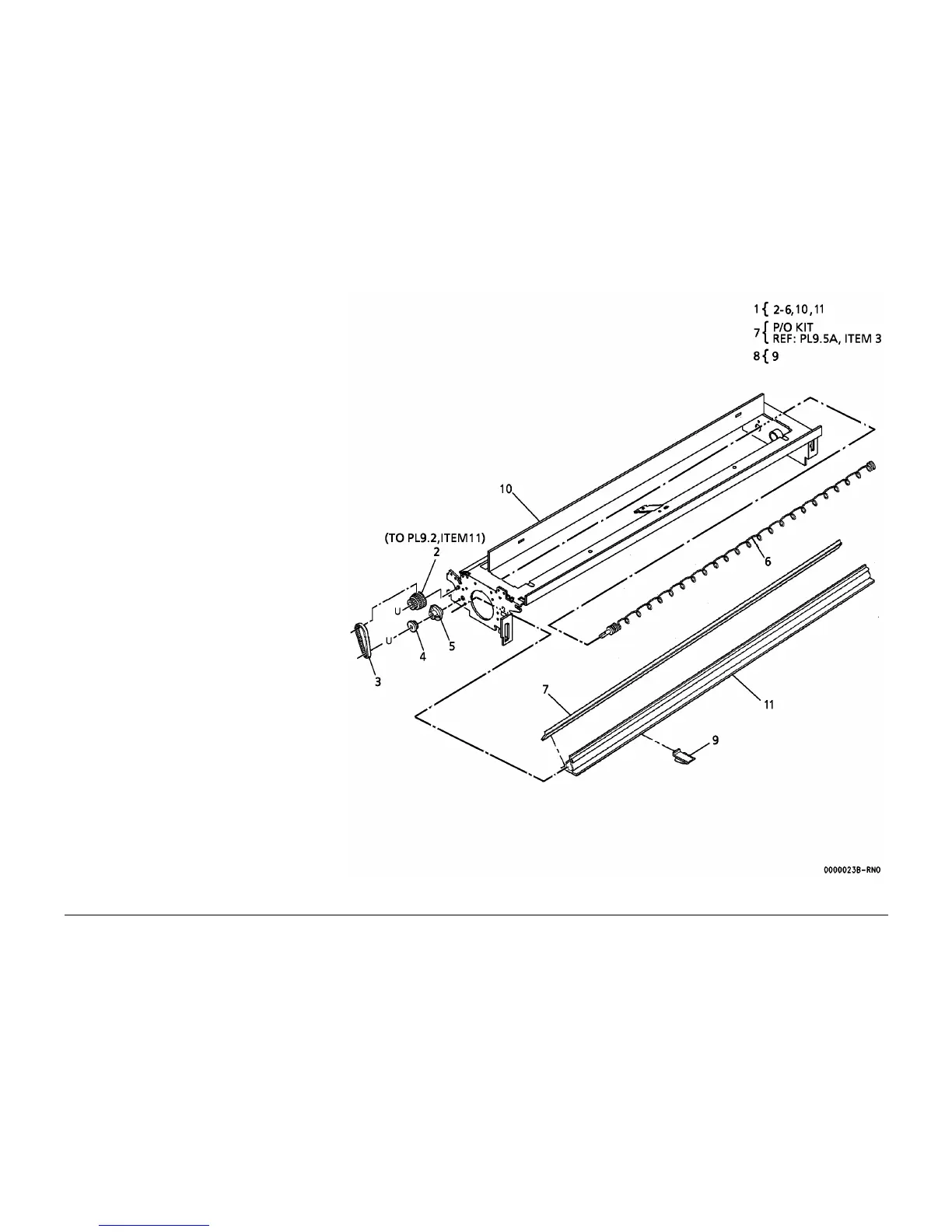

PL 9.5B Drum Cleaning (Part 2 of 3)
Item Part Description
1 – Part of Xerographic Module
Assembly (REF: PL 9.1 Item 4)
2 007E05221 Auger Gear Pulley
3 023E01620 Auger Drive Belt
4 020E04350 Auger Pulley
5 013E00803 Auger Bearing
6 094K00085 Waste Toner Auger
7 035K05790 Photoreceptor Seal (Part of
Cleaning Blade Kit) (REF: PL 9.5A
Item 3) (REP 9.17)
8 600K08481 Media Deflector Kit (7/Kit)
9 – Media Guide (P/O PL 9.5B Item 8)
10 – Xerographic Frame (P/O PL 9.5B
Item 1)
11 – Housing (P/O PL 9.5B Item 1)
