REP 7.3
Repairs and Adjustments
REP 7.3 Roll Feed Pinch Rolls
Parts List on PL 7.5
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: All three Roll Feed Pinch Roll Assemblies are removed the same way.
Removal
1. Open the Media Supply Drawer and remove the Media Roll.
2. (Figure 1): Remove the Roll Feed Pinch Rolls.

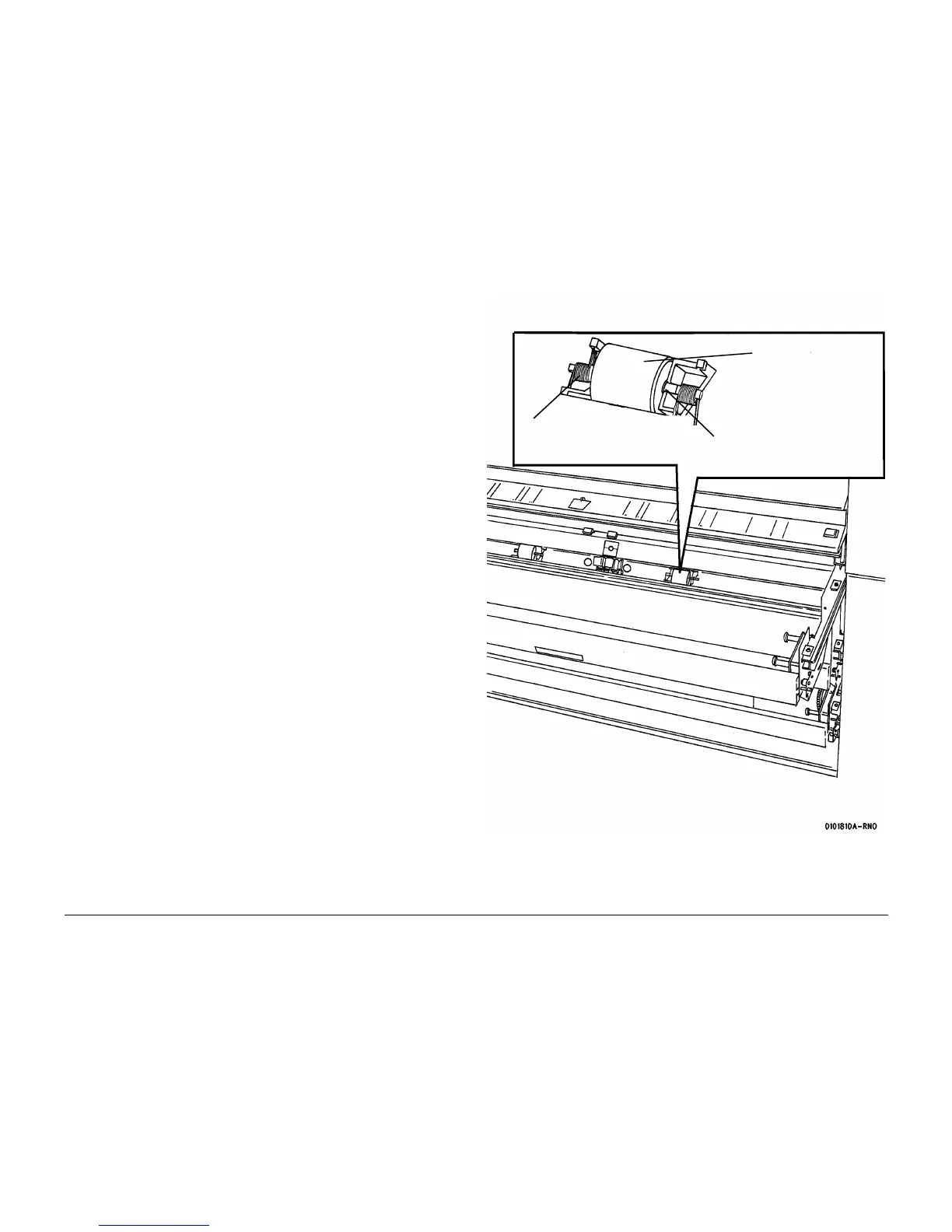

Figure 1 Removing the Roll Feed Pinch Rolls
1
Remove the springs (two
each Pinch Roll)
2
Remove the Pinch
Rolls
3
Remove the E-rings
and the shafts
