Xerox 8825 - Media Roll Feed; PL 7.1 Roll Supply Feed Assembly

01/02
5-13
8825/8830 Printer
PL 7.1
Parts Lists

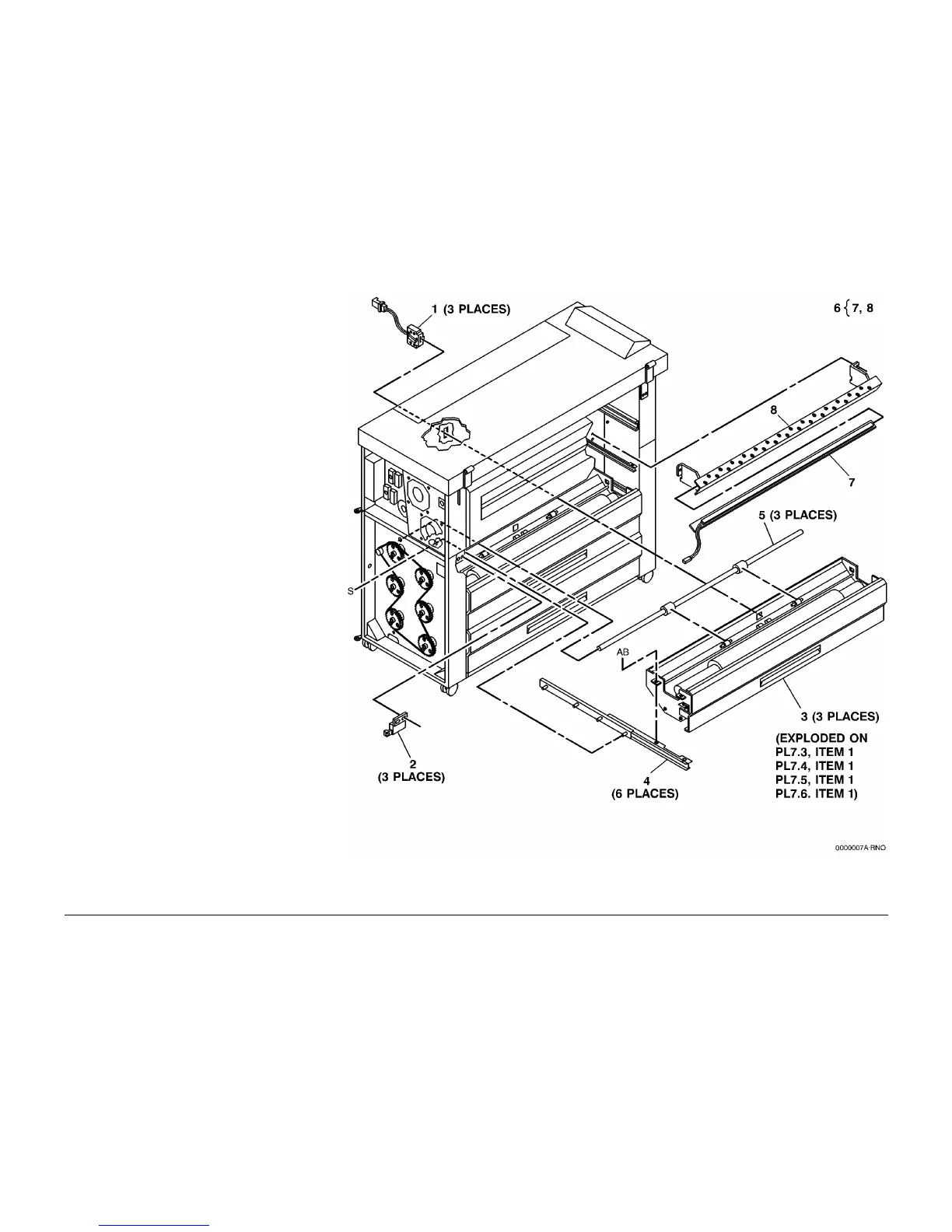

PL 7.1 Roll Supply Feed Assembly
Item Part Description
1 130K51801 Position Sensor
2 130E02271 Drawer Interlock Switch
3 050K53080 Roll Supply Drawer Assembly
(Sealed) (REP 7.1)
– 050K19612 Roll Supply Drawer Assembly
(REP 7.1)
4 010K01351 Slide
5 022K28930 Roll Feed Drive Roll (REP 7.4)
6 – Heater Assembly (Not Spared)
7 126K07330 Heater
8 – Heater Housing (P/O PL 7.1 Item
6)
