01/02
4-46
8825/8830 Printer
REP 9.1, REP 9.2
Repairs and Adjustments
11. (Figure 6): Carefully remove the Drum Assembly from the Printer and place it, Gear Box
down, in a safe place on the floor.

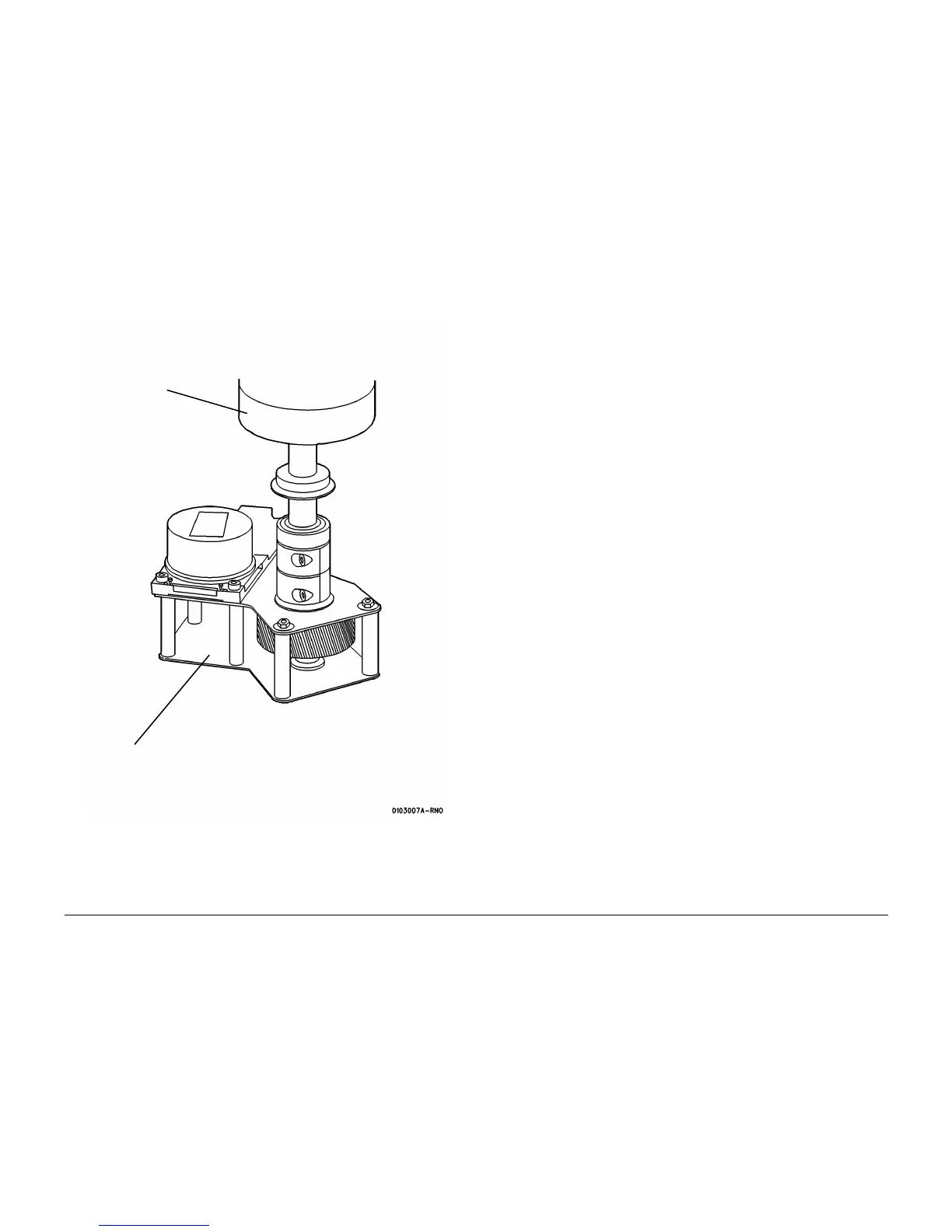

Figure 6 Removing the Drum Assembly
12. Using the Handles, lift the Xerographic Module out of the Printer and place it on a stable,
flat surface.
REP 9.2 Drum Assembly
Parts List on PL 9.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. Raise and latch the Top Cover.
3. Lift and rotate the Image Module to the Service Position.
4. Lower the Media Transport Cover.
NOTE: Figure 1 shows only the Front Support Bracket.
Gear Box
Drum Assembly
To Next Page
