01/02

4-45

8825/8830 Printer

REP 9.1

Repairs and Adjustments

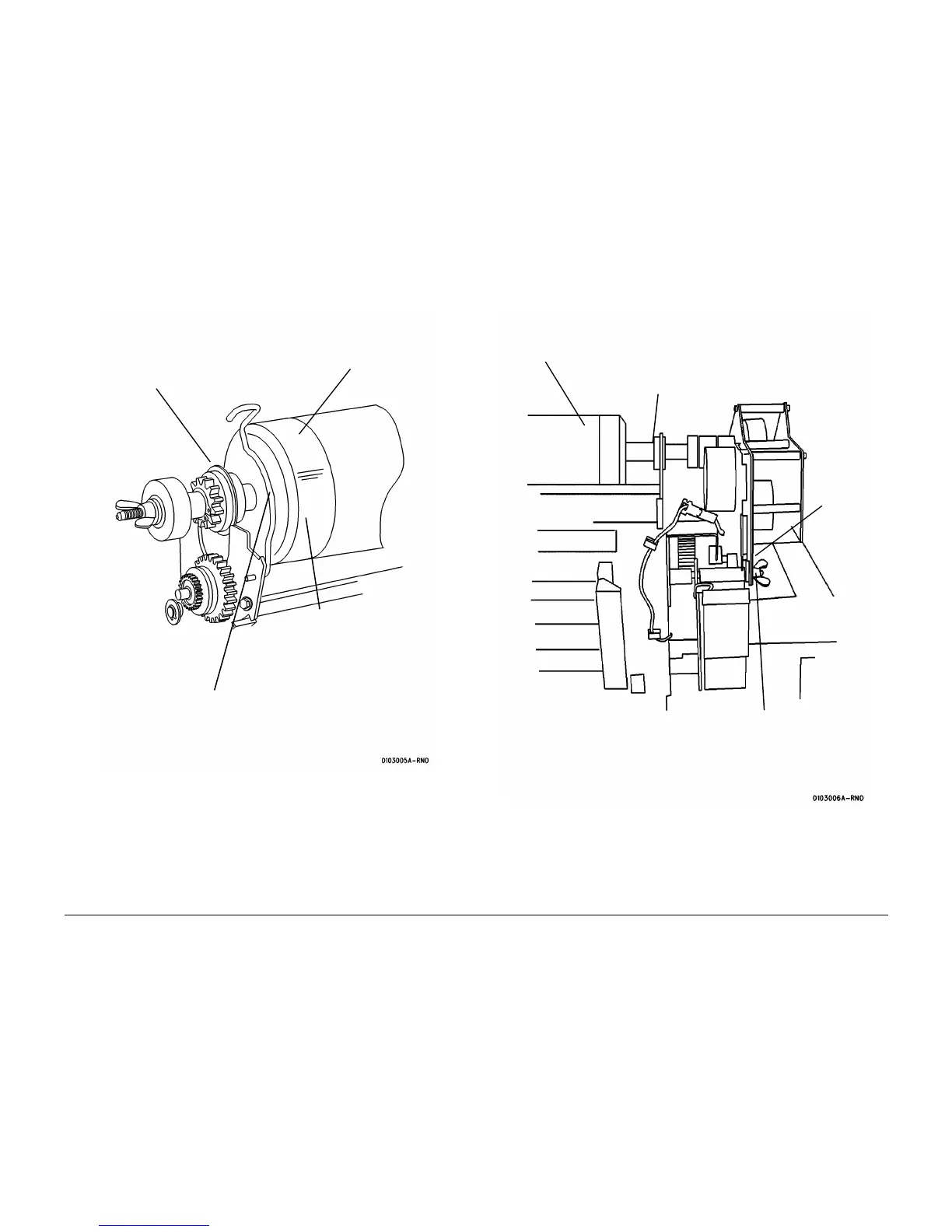

9. (Figure 4): Move the bearing out of the Xerographic Module Frame (Left Side).

Figure 4 Moving the Bearing (Left Side)

10. (Figure 5): Move the bearing out of the Xerographic Module Frame (Right Side).

Figure 5 Moving the Bearing (Right Side)

Lift the Drum Assembly and

move the bearing to the right

Carefully lower the

Drum Assembly

Disconnect the retain-

ing clip that holds the

bearing and rotate the

clip out of the way

Drum Assembly

Loosen the wing nut

and rotate the gearbox

to disengage the

bracket from the grom-

Discon-

nect P/J 1

Holding the gearbox out of the grommet, move the

Drum Assembly to the right while moving the bearing

out of the frame (Without Tag 8)

Drum Assembly
