8825/8830 Printer
PL 8.1
Parts Lists

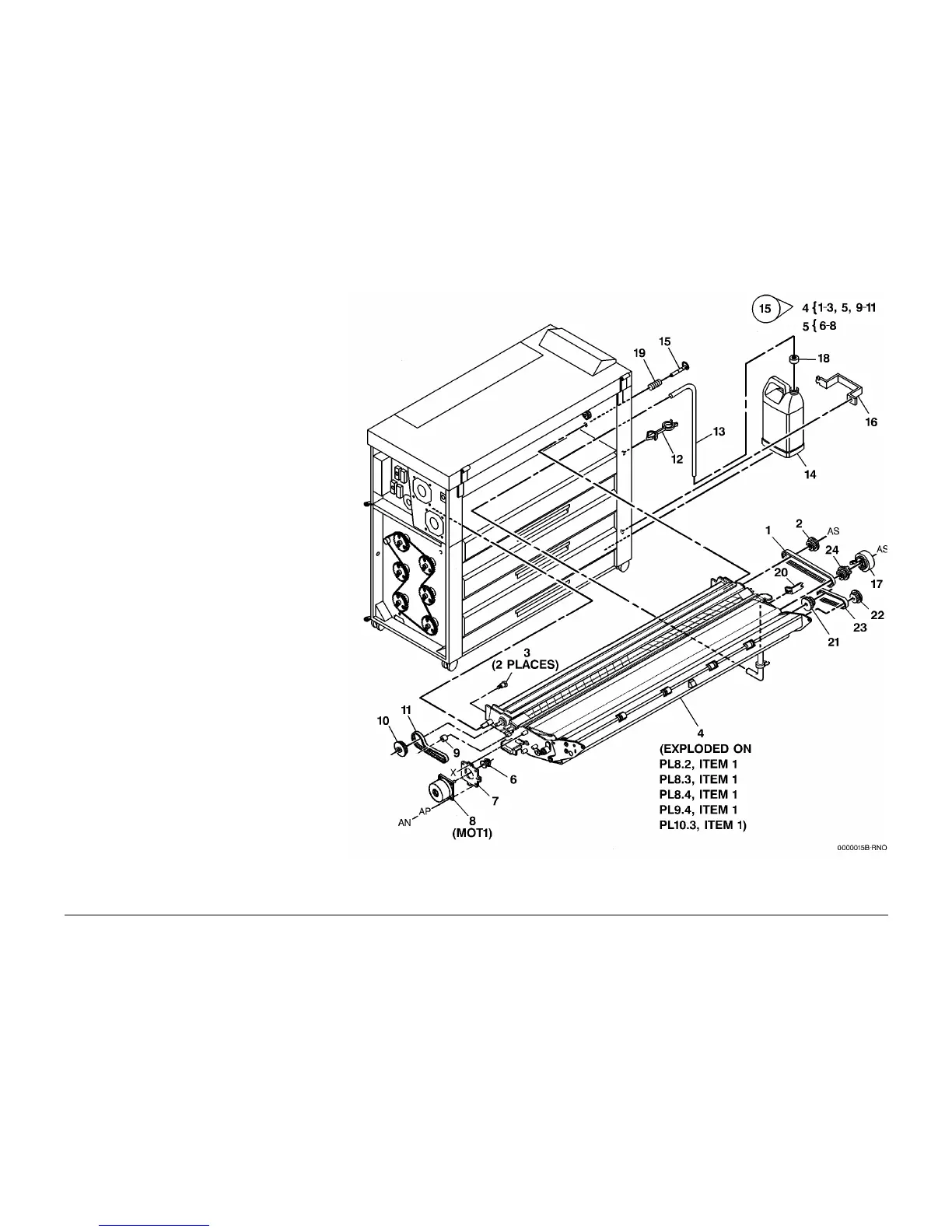

PL 8.1 Media Transport Assembly
Item Part Description
1 423W72201 Sheet Drive Belt
2 020E13853 Sheet Drive Pulley
3 026E11970 Shoulder Screw
4 022K63750 Media Transport Assembly (8825)
(W/O TAG 89) (REP 8.1,ADJ 8.1)
– 022K49205 Media Transport Assembly (8830)
(W/TAG 15), Media Transport
Assembly (8825) (W/TAG 89) (REP
8.1,ADJ 8.1)
5 – Transport Drive Motor Assembly
(Not Spared)
6 020E13603 Drive Motor Pulley
7 – Motor Mounting Plate (P/O PL 8.1
Item 5)
8 127K04293 Transport Drive Motor (MOT1)
(REP 8.10)
9 022E11441 Idler Roller
10 020E12353 Registration Drive Pulley
11 423W64001 Registration Drive Belt (REP 8.13)
12 120E02160 Twist Clamp
13 052E07910 Moisture Collection Tube
14 093E01501 Moisture Collection Bottle
15 029K01111 Pin
16 – Bracket (Not Spared)
17 121K10612 Clutch (REP 8.4)
18 – Bottle Cap (Not Spared)
19 009E32510 Compression Spring
20 017E07221 Clutch Brake
21 020E26340 Gear Pulley
22 020E26350 Exit Drive Pulley
23 423W59001 Belt
24 020K08080 Clutch Pulley
