Xerox 8825 - REP 7.4 Roll Feed Drive Rolls

01/02
4-11
8825/8830 Printer
REP 7.4
Repairs and Adjustments
REP 7.4 Roll Feed Drive Rolls
Parts List on PL 7.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: All three Roll Feed Drive Roll assemblies are removed the same way.
Removal
1. Remove the appropriate Media Supply Drawer (REP 7.1).
2. Remove the Feed Clutch (REP 7.5).
3. Remove the Toner Waste Container.
4. (Figure 1): Remove the Roll Feed Drive Rolls.

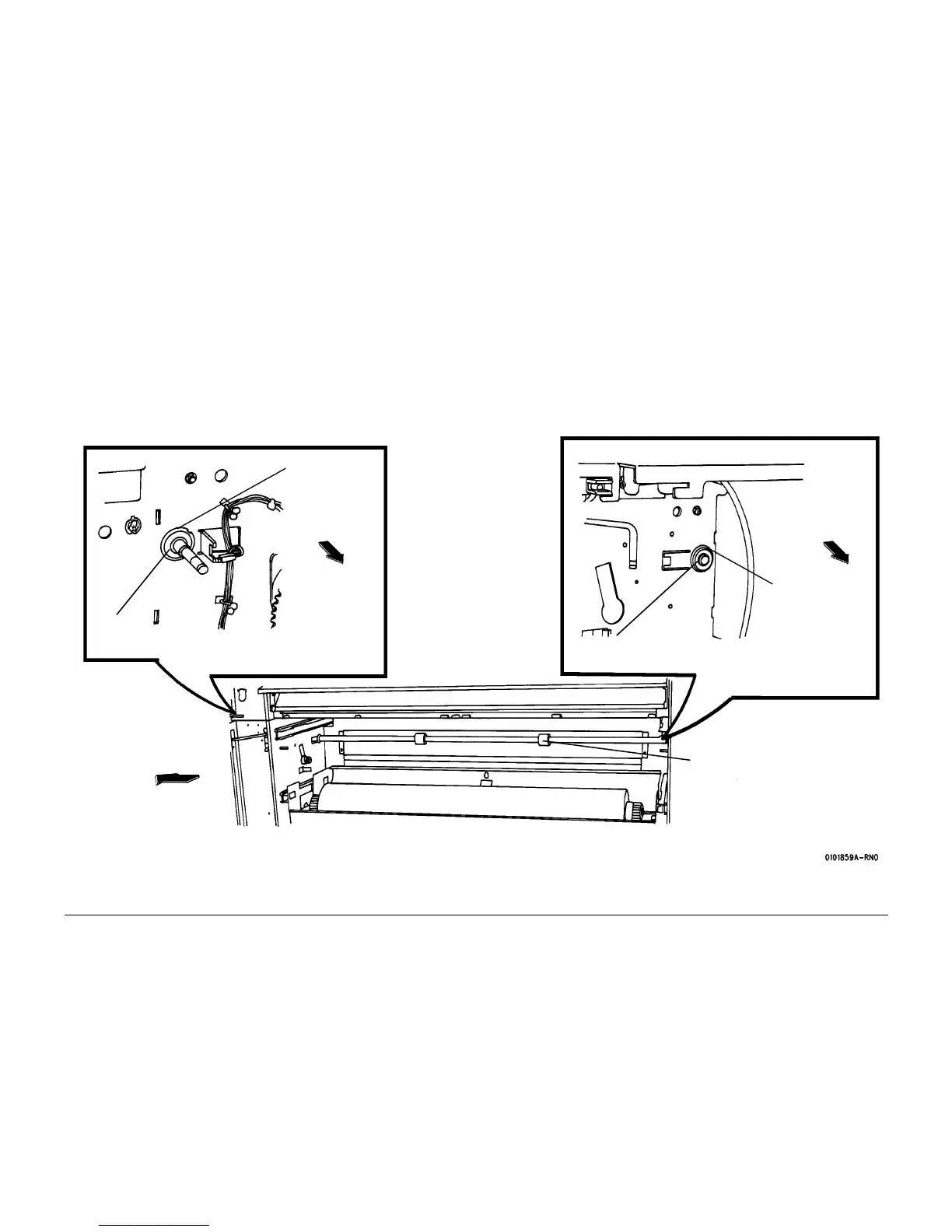

Figure 1 Removing the Roll Feed Drive Rolls
5
Remove the Drive
Rolls
4
Remove the bearing
3
Remove the E-Ring
2
Remove the bearing
1
Remove the E-
ring
