01/02
5-8
8825/8830 Printer
PL 1.1B
Parts Lists

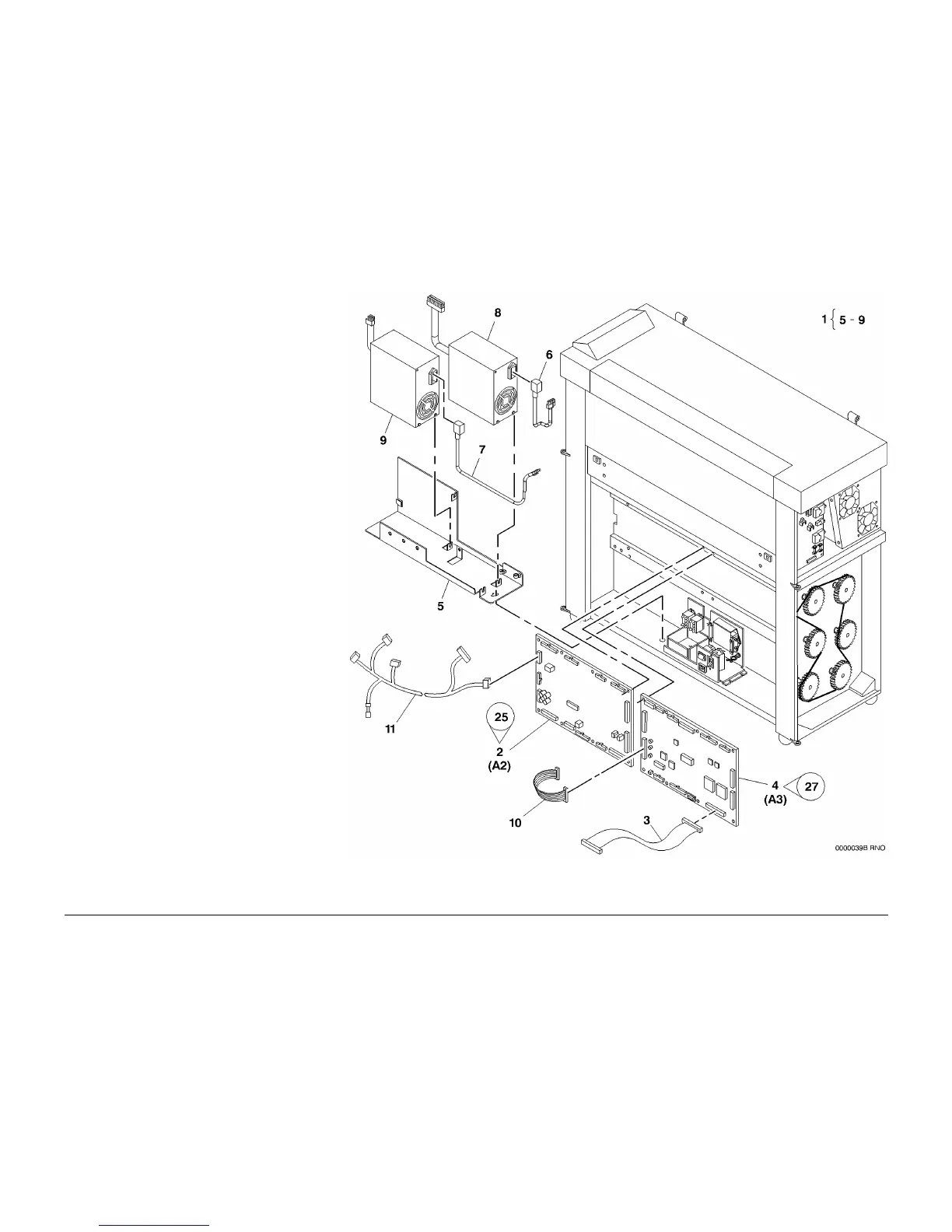

PL 1.1B Electrical Control
Components/DC Power Generation
(W/TAG 27)
Item Part Description
1 105K18273 DC Low Voltage Power Supply
Assembly (W/TAG 25)
2 160K33322 Driver PWB (A2) (W/O TAG 25)
– 600K75311 Driver PWB Kit (A2) (W/TAG 25)
3 162K29730 Controller Connector (See Note)
4 600K75321 Main PWB Kit (A3) (W/TAG 27)
5 – Power Module Mounting Bracket
(P/O PL 1.1B Item 1)
6 – Power Cord (5V PS) (P/O PL 1.1B
Item 1)
7 117K32660 Power Cord (25V PS)
8 105E13850 Power Supply (5V)
9 105E13863 Power Supply (25V)
10 152K36231 Jumper Harness (14 Conductor)
11 162K23453 Motor Control Harness
NOTE: 1: Note cable supplied for non-imbeded controllers
only.
To Next Page
