01/02

5-23

8825/8830 Printer

PL 8.3

Parts Lists

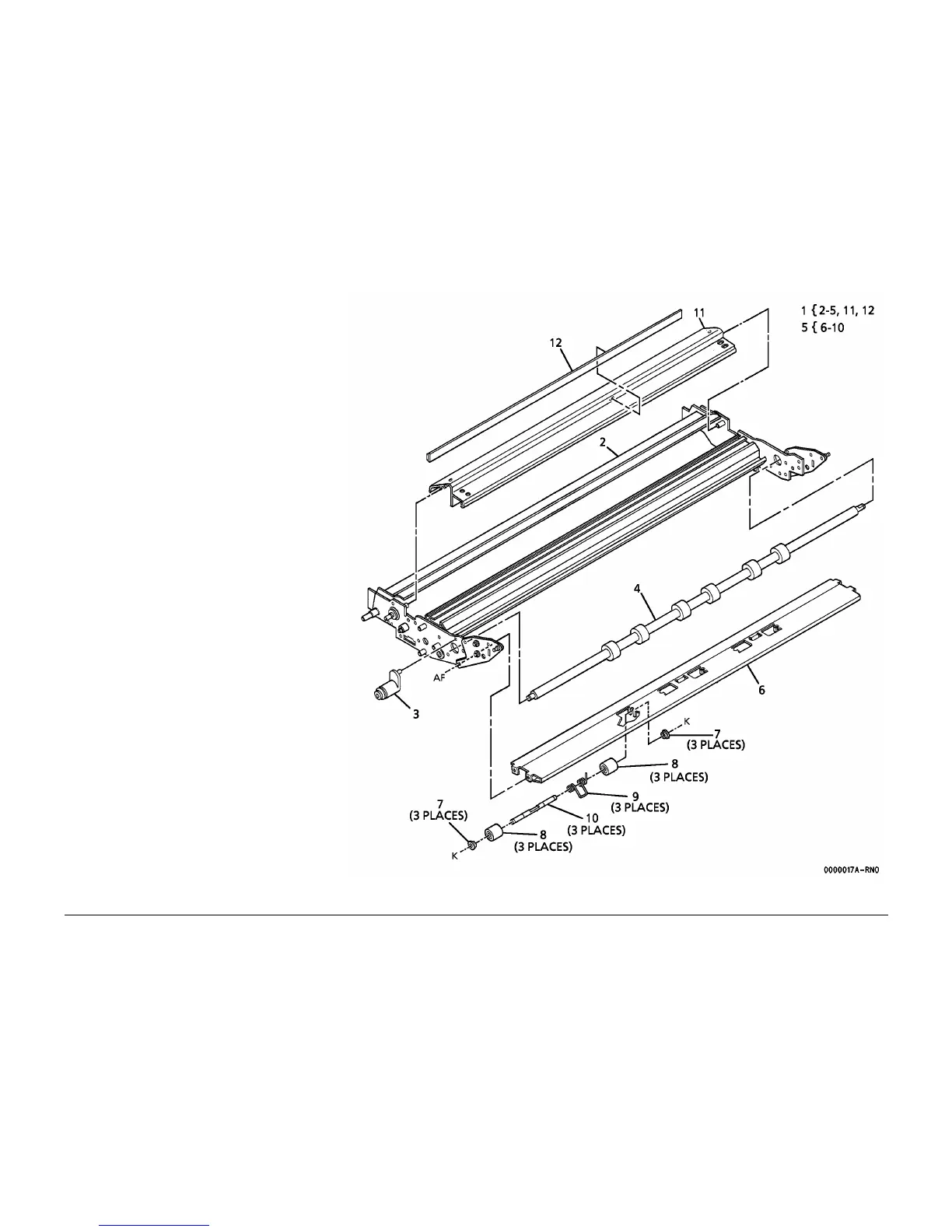

PL 8.3 Cut Sheet Feed Components

Item Part Description

1 – Part of Media Transport Assembly

(REF: PL 8.1 Item 4)

2 – Media Transport Frame (P/O PL

8.3 Item 1)

3 019E14350 Drag Brake (8830), Drag Brake

(8825) (W/TAG 90)

4 006K15682 Sheet Drive Roll (8830) (REP 8.7),

Sheet Drive Roll (8825) (W/TAG

90) (REP 8.7)

5 – Sheet Support Assembly (P/O PL

8.3 Item 1)

6 – Sheet Lower Baffle (P/O PL 8.3

Item 5)

7 016E06020 Bushing (8830), Bushing (8825)

(W/TAG 90)

8 022E09390 Sheet Pinch Roll (8830) (REP 8.6),

Sheet Pinch Roll (8825) (W/TAG

90) (REP 8.6)

9 009E32490 Sheet Pinch Spring (8830), Sheet

Pinch Spring (8825) (W/TAG 90)

10 006E23540 Sheet Pinch Shaft (8830), Sheet

Pinch Shaft (8825) (W/TAG 90)

11 – Top G ui de (P/ O PL 8.3 Item 1)

12 – Shield (P/O PL 8.3 Item 1)
