01/02
4-79
8825/8830 Printer
REP 9.18
Repairs and Adjustments
REP 9.18 Air Pressure Tubes
Parts List on PL 9.9, PL 9.10
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
CAUTION
Do not rotate the Auger Gears individually more than the slight amount required for removal or
to mesh the teeth during reinstallation. If the factory setting of the augers is changed during the
procedure, perform the adjustment procedure, Augers (ADJ 9.6).
2. (Figure 1): Remove the Air Pressure Tubes.
3. Using a vacuum cleaner, remove the impacted Developer Material from the Housing
where the Air Pressure Tubes are attached. Pay special attention to the inside of the bot-
tom channel.

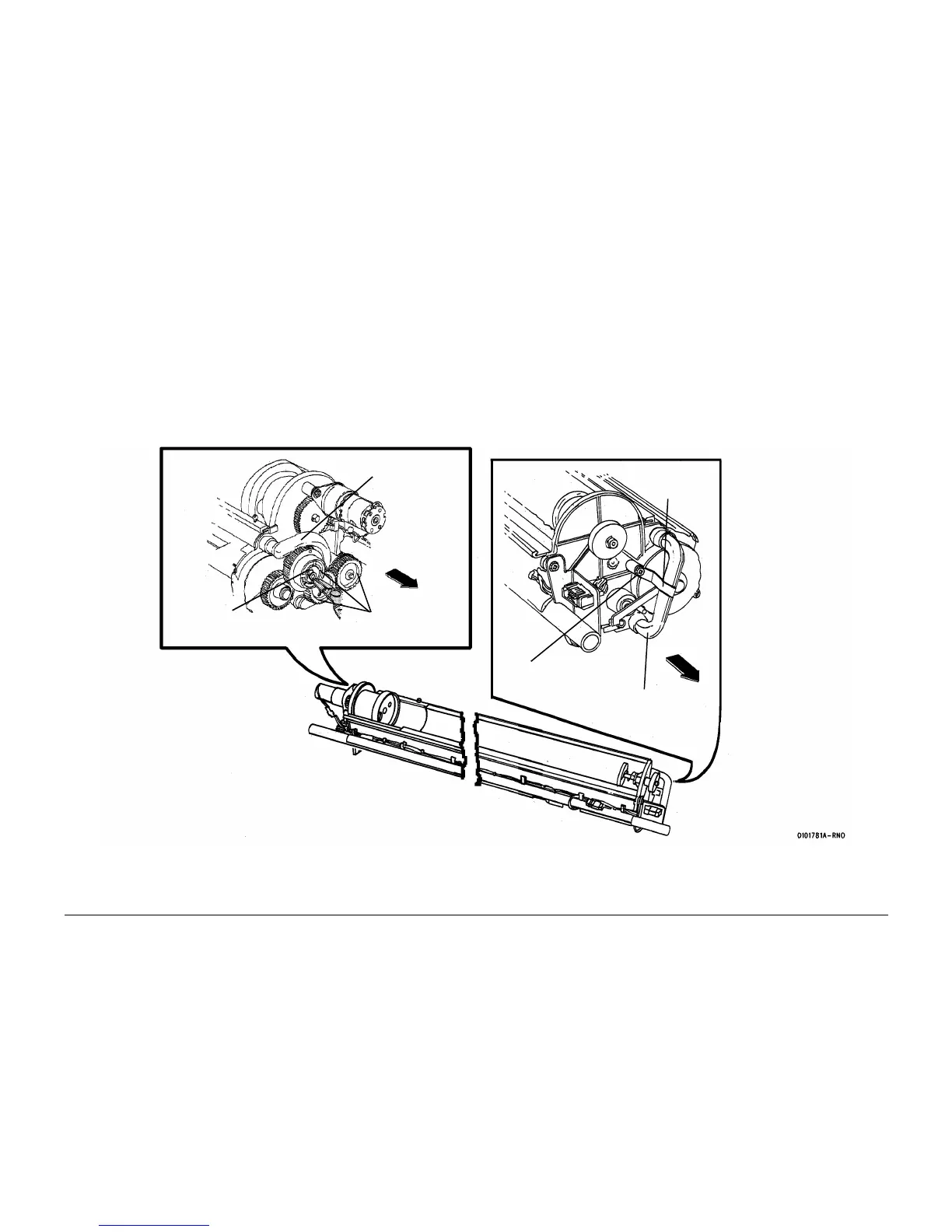

Figure 1 Removing the Air Pressure Tubes
1
Remove the Grip
Ring
2
Remove the gears (3)
3
Remove the Air
Pressure Tube
4
Remove the screw
5
Remove the
retainer
6
Remove the Air
Pressure Tube
To Next Page
