01/02
5-7
8825/8830 Printer
PL 1.1A
Parts Lists

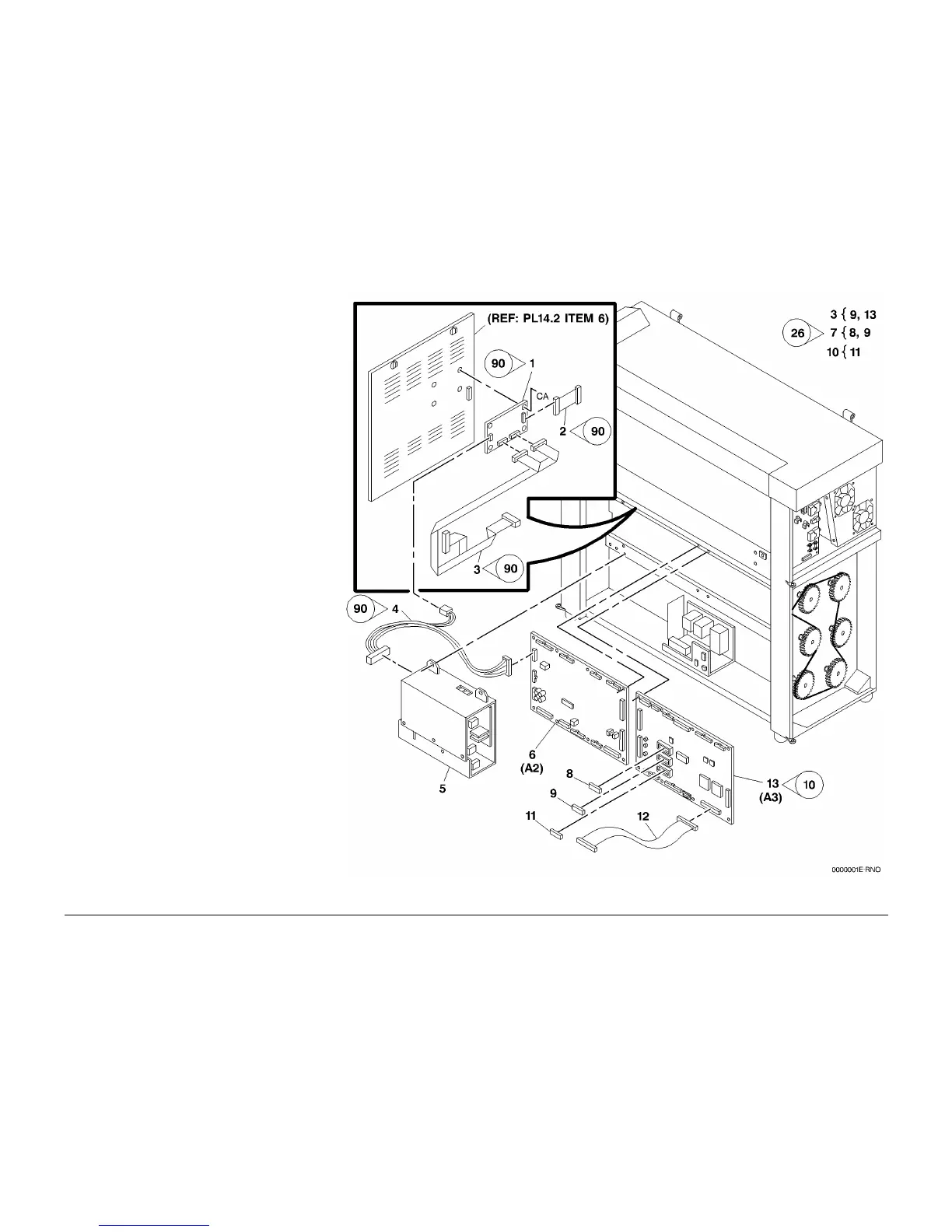

PL 1.1A Electrical Control
Components/DC Power Generation
(W/O TAG 27)
Item Part Description
1 160K37310 A/B Switch PWB (8830) (W/TAG
90)
2 162K28840 VPI Harness (8830) (W/TAG 90)
3 162K41460 A/B Switch to IOT Harness (8830)
(W/TAG 90)
4 162K41440 Power Driver Harness (8830) (W/
TAG 90)
5 105K15863 DC Low Voltage Power Supply
6 160K33322 Driver PWB (A2) (W/O TAG 25)
– 600K75311 Driver PWB (A2) (W/TAG 25)
7 600K81881 Circuit Assembly Kit (EO) (W/TAG
4, TAG 16, TAG 17, TAG 26, (W/O
TAG 53)
– 600K81882 Circuit Assembly Kit (EO) (W/TAG
4, TAG 16, TAG 17, TAG 26, TAG
53, )
– 600K81873 Circuit Assembly Kit (NACO) (W/
TAG 4, TAG 16, TAG 17, TAG 26,
TAG 53, TAG 87)
8 600K88890 Control Eprom Kit
9 – Language Eprom No. 1 (P/O PL
1.1A Item 3)
10 – Language Eprom No.2 Kit (Not
Spared)
11 537K51151 AO Portuguese Language Eprom
– 537K51161 AO Spanish Language Eprom
12 162K29730 Controller Connector (See Note 1)
13 – Main PWB (A3) (Not Spared) (See
Note 2) (W/TAG 3, TAG 10) (W/O
TAG 27) (REP 3.1)
NOTE: 1:- Cable supplied for non-imbeded controllers only.
NOTE: 2:- See PL1.1B Item 4.
