01/02
4-116
8825/8830 Printer
ADJ 10.1, ADJ 10.2
Repairs and Adjustments

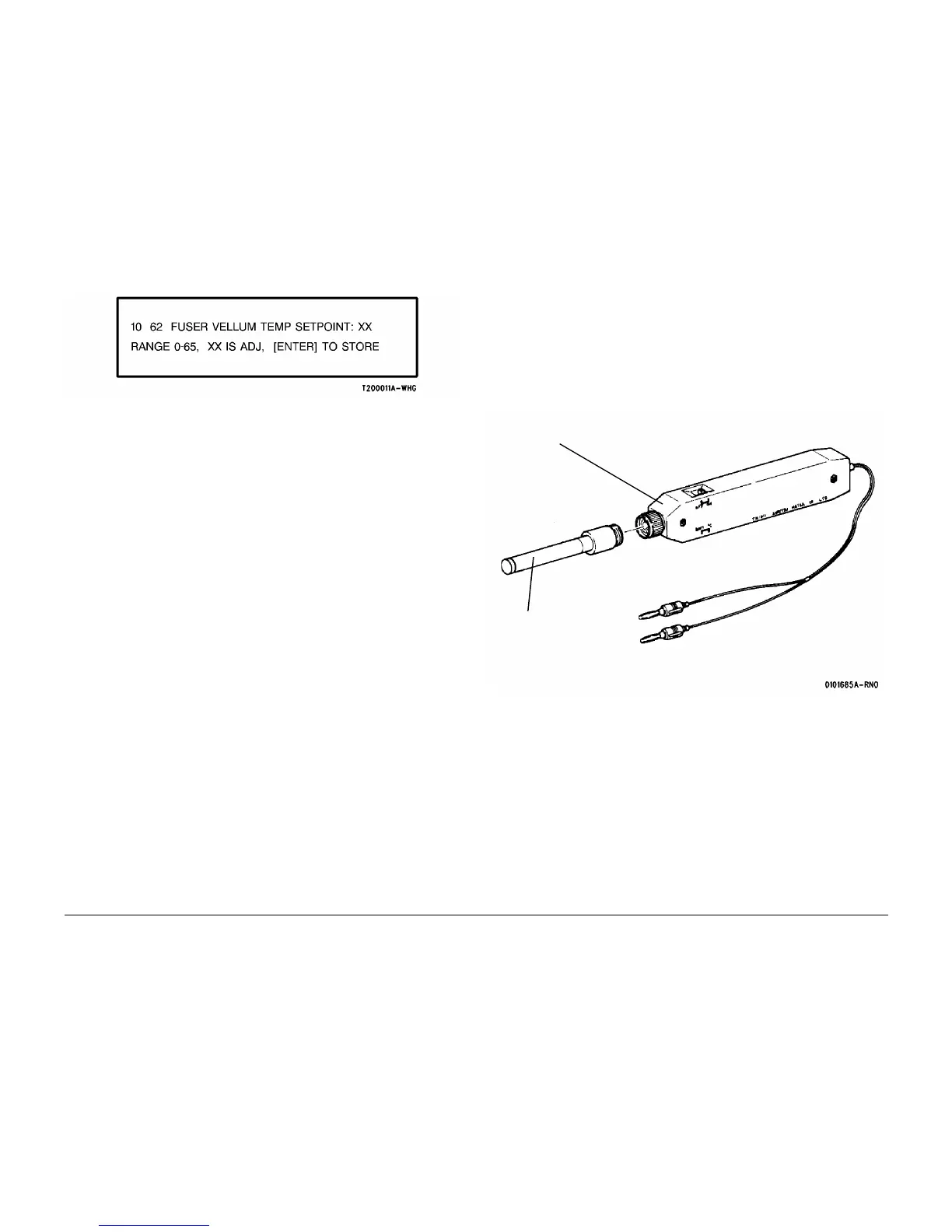

Figure 5 Film Temperature
NOTE: The default Set Point for film media is 30. Adjust for 300 degrees F.
7. Adjust the film fusing temperature using the Previous / Next buttons.
a. Use the Previous button to decrease the Set Point, lowering the fusing tempera-
ture.
b. Use the Next button to increase the Set Point, raising the fusing temperature.
c. Press the Enter button in order to store the value in NVM.
d. Press the Exit button two times.
8. Check the following:
a. Vertical Magnification ( ADJ 8.1)
b. Lead Edge Registration ( ADJ 8.2)
c. Cut Length ( ADJ 8.3)
ADJ 10.2 Fuser Temperature (with Probe)
Purpose
The purpose is to check the temperature of the Heat Roll, using the Temperature Probe, in
order to obtain the correct fusing.
Check
1. Ensure that the Fuser Thermistor is in positive contact with the Heat Roll.
2. ( Figure 1): Connect the Thermal Sensor to the Temperature Probe.
Figure 1 Connecting the Thermal Sensor to the Temperature Probe
Temperature Probe
Thermal Sensor
