8825/8830 Printer
PL 9.7
Parts Lists

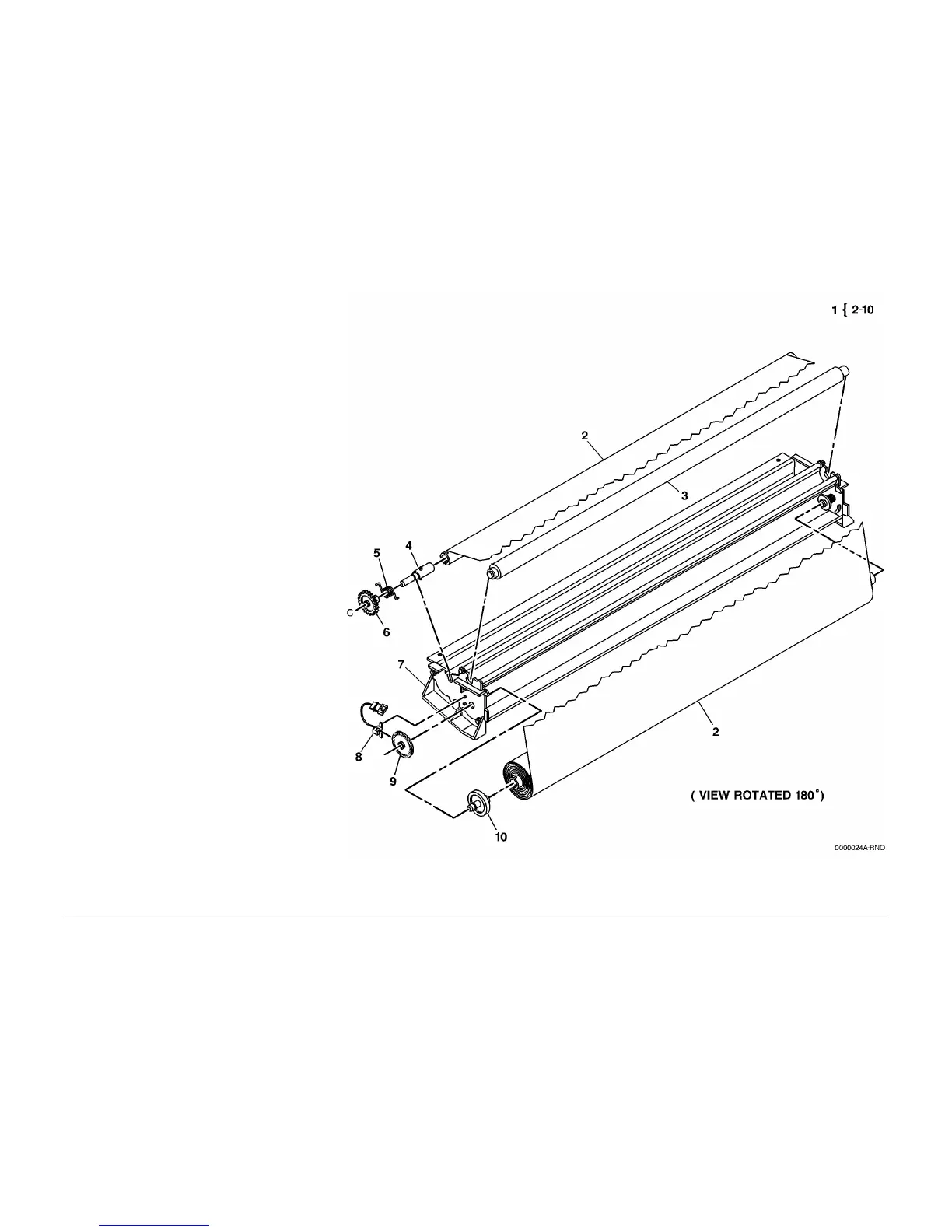

PL 9.7 Web Oiler Components
Item Part Description
1 – Part of Web Oiler Assembly (REF:
PL 9.6 Item 2)
2 022K49131 Web Oiler (REP 10.9)
3 022K49380 Pinch Roll
4 – Take Up Shaft (P/O PL 9.7 Item 1)
5 009E75260 Spring
6 007E42580 Take Up Gear
7 – Web Frame (P/O PL 9.7 Item 1)
8 130K55130 Web Motion Sensor
9 146K00461 Encoder Wheel
10 005E11130 Brake
To Next Page
