Xerox 8825 - PL 1.2 A AC Electrical Components (W;O TAG 25)

01/02
5-9
8825/8830 Printer
PL 1.2A
Parts Lists

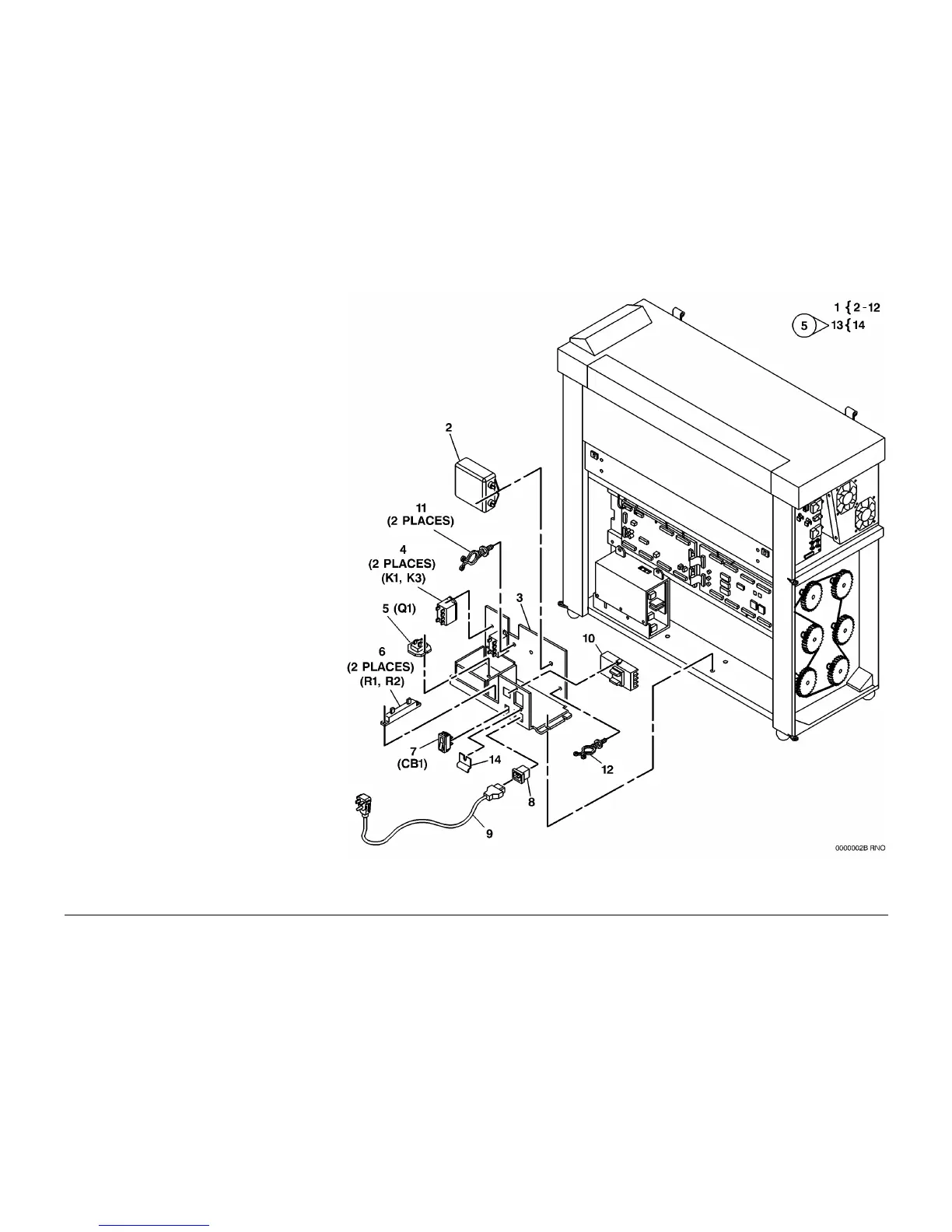

PL 1.2A AC Electrical Components
(W/O TAG 25)
Item Part Description
1 – AC Module Assembly (Not Spared)
(50/60 Hz)
2 142K01540 Filter
3 – AC Module Housing (P/O PL 1.2A
Item 1) (50/60 Hz)
4 109E01040 AC Relay (K1/K3)
5 707W01652 Fuser Triac (Q1) (REP 10.3)
6 103E02721 Ballast Resistor (R1/R2) (60HZ)
– 103E02731 Ballast Resistor (R1/R2) (50HZ)
7 – Main Power Switch (CB1) (P/O PL
1.2A Item 1)
8 – Inlet Connector (P/O PL 1.2A Item
1)
9 117K22761 Power Cord (60HZ)
– 117K27550 Power Cord (50HZ)
10 108E01762 Ground Fault Panel
11 120E02160 Twist Clamp
12 120E02150 Twist Clamp
13 600K60610 AC Module Kit (TAG 5)
14 – Support Bracket (P/O PL 1.2A Item
13)
