Xerox 8825 Service Manual

01/02
5-12
8825/8830 Printer
PL 1.4
Parts Lists

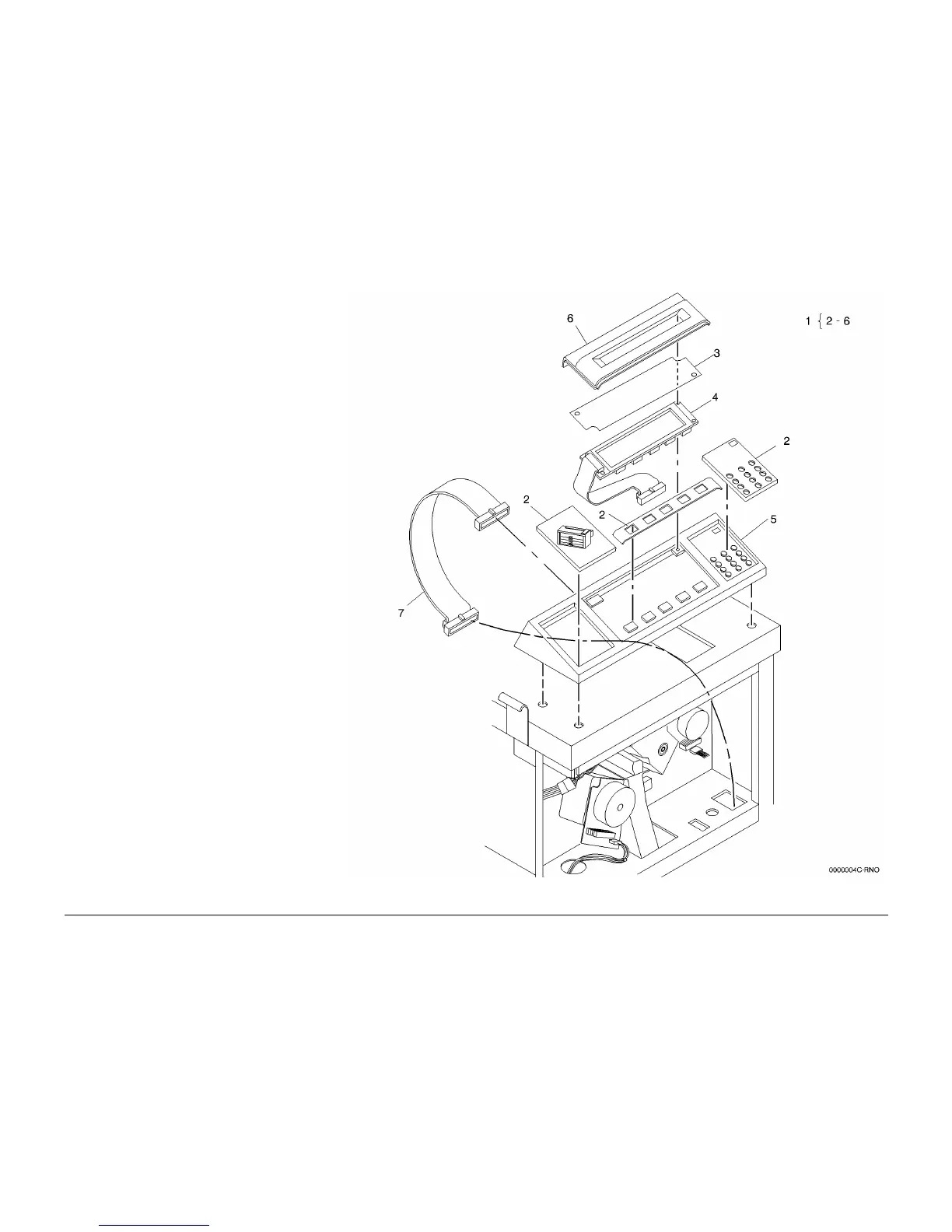

PL 1.4 Control Console
Item Part Description
1 101K26083 Control Console Assembly (8830)
(W/TAG 32)
– 101K40051 Control Console Assembly (8825)
(W/TAG 32)
2 096E78251 Control Console Label (8830) (W/
O TAG 32)
– 891E70531 Control Console Label (8825) (W/
TAG 32)
– 891E70530 Control Console Label (8825) (W/
O TAG 32)
– 096E78252 Control Console Label (8830) (W/
TAG 32)
3 – ESD Insulator (P/O PL 1.4 Item 1)
4 – Display (P/O PL 1.4 Item 1)
5 – Control Console Housing (P/O PL
1.4 Item 1)
6 101E12281 Display Housing
7 162K23421 Control Console To Controller
Harness
