Xerox 8825 - REP 8.13 Media Feed Drive Belt

01/02
4-37
8825/8830 Printer
REP 8.12, REP 8.13
Repairs and Adjustments

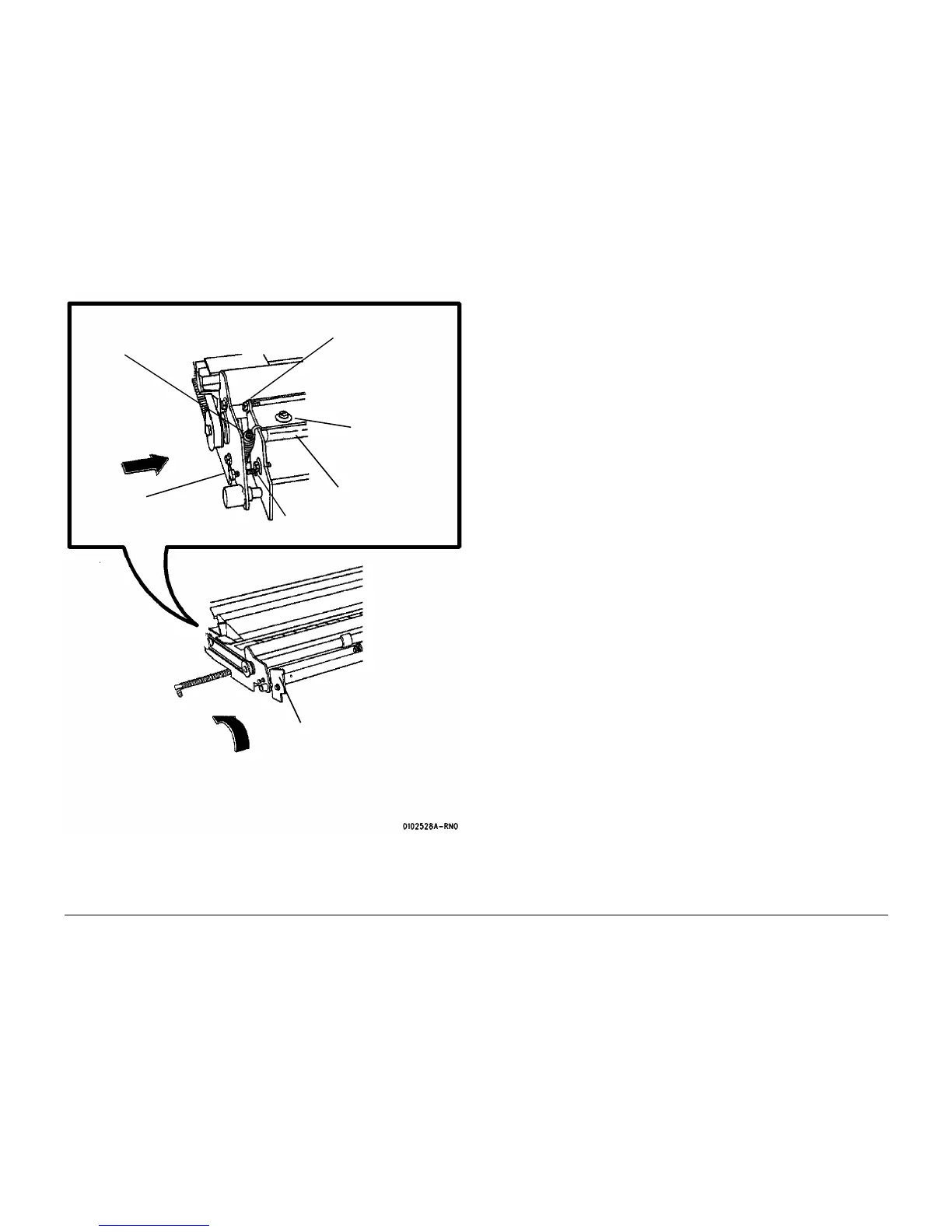

Figure 4 Reinstalling the Springs
REP 8.13 Media Feed Drive Belt
Parts List on PL 8.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Turn the Media Transport Assembly over.
1
Rotate Assembly
2
Rotate the screw
until it engages the
slot
3
Reinstall the Baffle
4
Reinstall screws (5)
5
Reinstall the two
screws (one at each
end)
6
Reinstall the two
springs (one at each
end)
Frame Slot
