8825/8830 Printer
REP 8.1
Repairs and Adjustments
REP 8.1 Media Transport Assembly
Parts List on PL 8.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Open the Cutter Drawer.
3. (Figure 1): Disconnect the connectors at the rear of the printer.

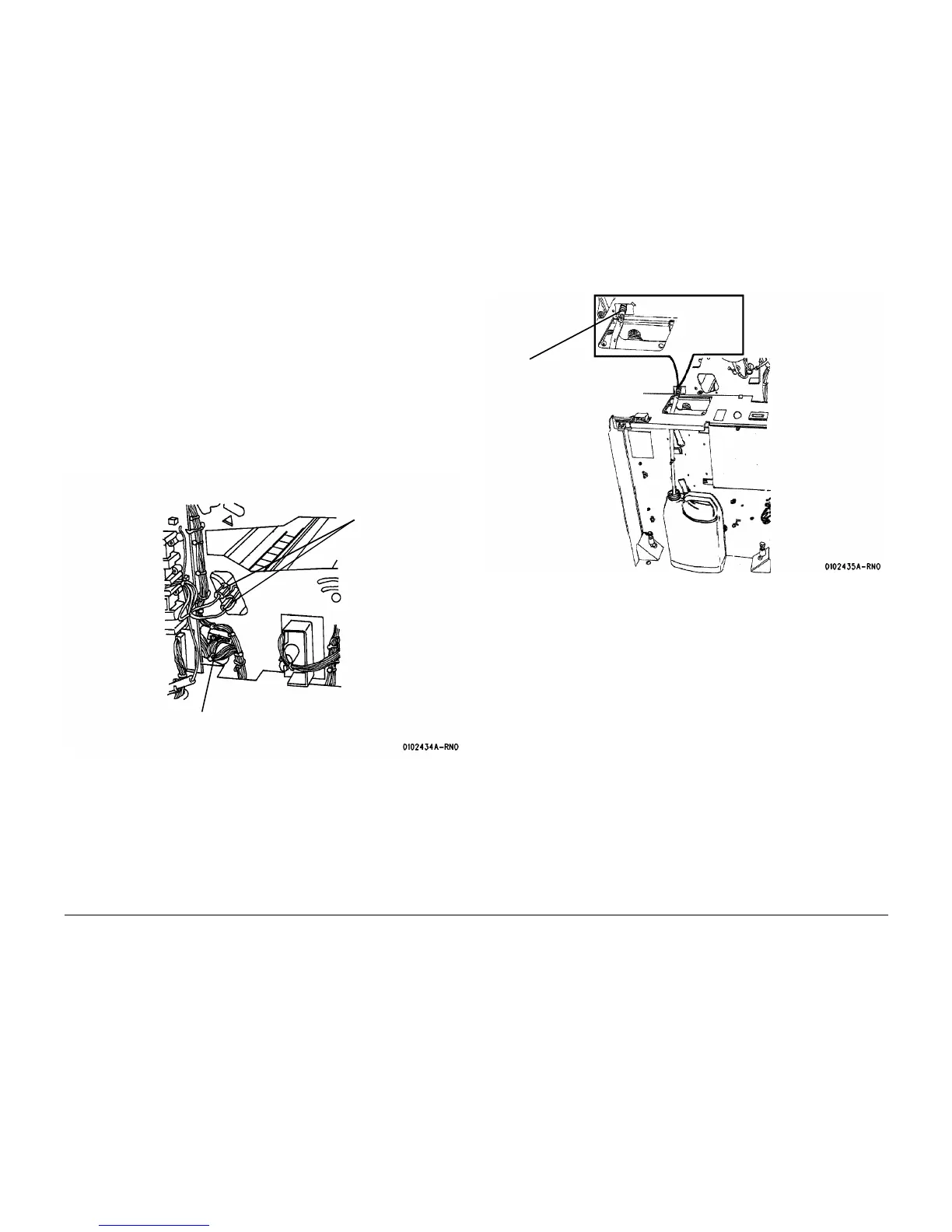

Figure 1 Disconnecting the Connectors
4. (Figure 2): Disconnect the Moisture Collection Tube.
Figure 2 Disconnecting the Moisture Collection Tube
1
Disconnect the
Transfer and
the Detack
Corotron leads
2
Disconnect A21P1
Disconnect
the tube
To Next Page
