8825/8830 Printer

PL 9.3

Parts Lists

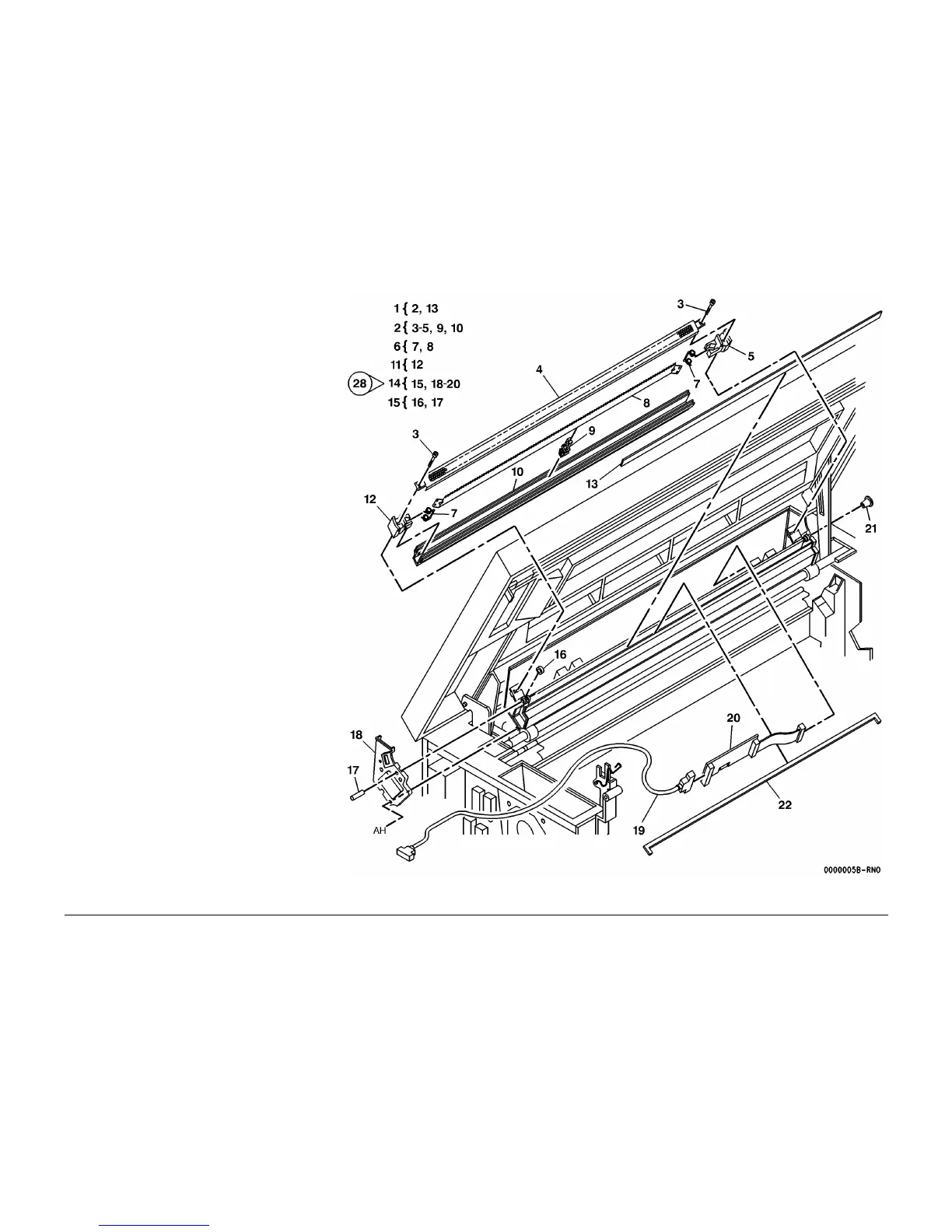

PL 9.3 Image Module Assembly

Item Part Description

1 – Part of Xerographic Module

Assembly (REF: PL 9.1 Item 4)

2 125K02220 Scorotron Assembly

3 026E57690 Screw (M4 X 30)

4 062E08051 Screen

5 – Right End Block (P/O PL 9.3 Item

6 600K58750 Pin Array Kit (REP 9.8)

7 – Spring (P/O PL 9.3 Item 6)

8 – Pin Array (P/O PL 9.3 Item 6)

9 – Center Support (P/O PL 9.3 Item 2)

10 – Scorotron Extrusion (P/O PL 9.3

Item 2)

11 600K58730 Left End Block Kit

12 – Left End Block (P/O PL 9.3 Item

11)

13 035E41210 Seal

14 600K58761 Image Module Assembly Kit (W/

TAG 28)

15 600K58740 Roller Kit

16 – Roller (P/O PL 9.3 Item 15)

17 – Pin (P/O PL 9.3 Item 15)

18 – Cover (P/O PL 9.3 Item 14)

19 – Harness (P/O PL 9.3 Item 14)

20 160K30980 Circuit Board (W/O TAG 28)

– 160K63410 Circuit Board (W/TAG 28)

21 021E07660 Cap Plug

22 035E37240 Gasket
