ADJ 10.3 Fuser Temperature (with Tape)
Purpose
The purpose is to check the temperature of the Heat Roll, using Temperature Sensitive Tape,
in order to obtain the correct fusing.
Check
1. Ensure that the Fuser Thermistor is in positive contact with the Heat Roll.
2. ( Figure 1): Prepare one strip of tape from the Temperature Sensitive Tape Kit.

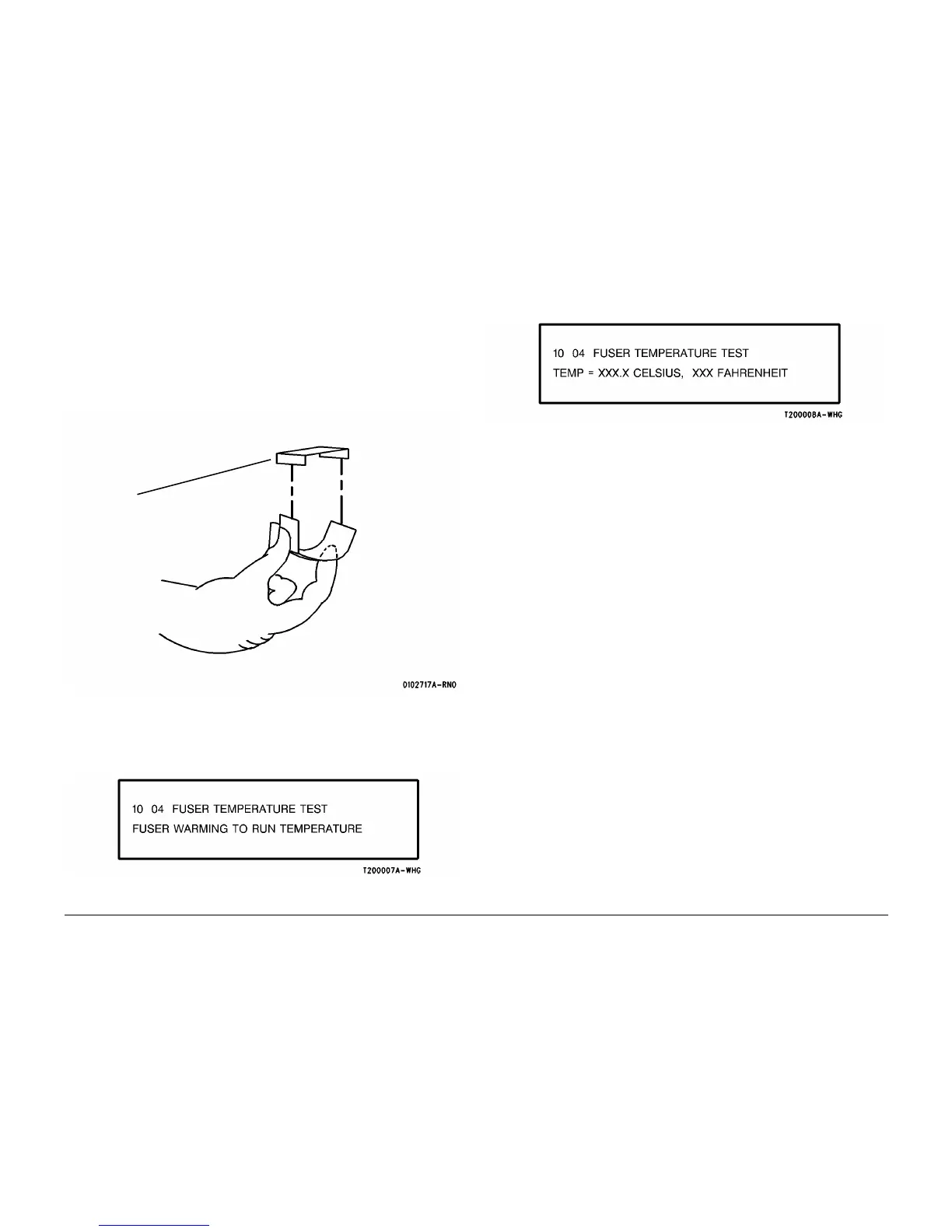

Figure 1 Preparing the Tape
3. Enter diagnostics.
4. ( Figure 2): Enter code [ 1004 in order to turn on the Heat Rod and bring the Heat Roll to
the run temperature. The following message is displayed .
Figure 2 Fuser Warm Up Screen
5. ( Figure 3): Check the bond paper fusing temperature, using the Temperature Sensitive
Tape, when the following message is displayed.
Figure 3 Fuser Temperature Test Screen
6. Open the Media Transport Latching Cover and press the tape firmly to the surface of the
Heat Roll.
7. Press the Exit button three times.
Attach a strip of tape
to the holder
