Xerox 8825 - REP 8.8 Media Registration Sensor

01/02
4-30
8825/8830 Printer
REP 8.8
Repairs and Adjustments
REP 8.8 Media Registration Sensor
Parts List on PL 8.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. (Figure 1): Remove the Media Registration Sensor.

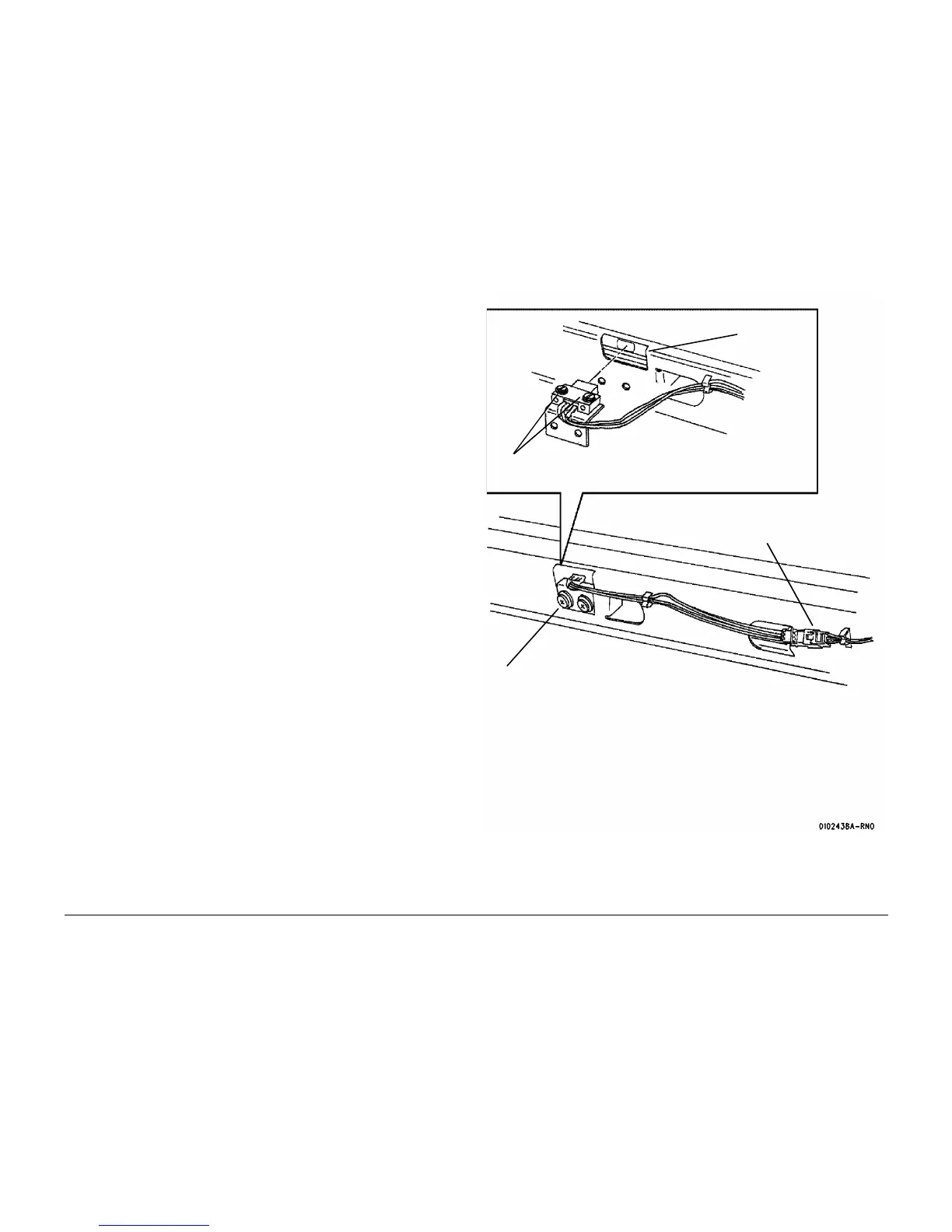

Figure 1 Removing the Media Registration Sensor
1
Push down the tab and
disconnect the connector
2
Remove the two screws
and the assembly
3
Remove the two screws and the Media Registration Sensor
Sensor Window
