01/02
5-38
8825/8830 Printer
PL 10.2
Parts Lists

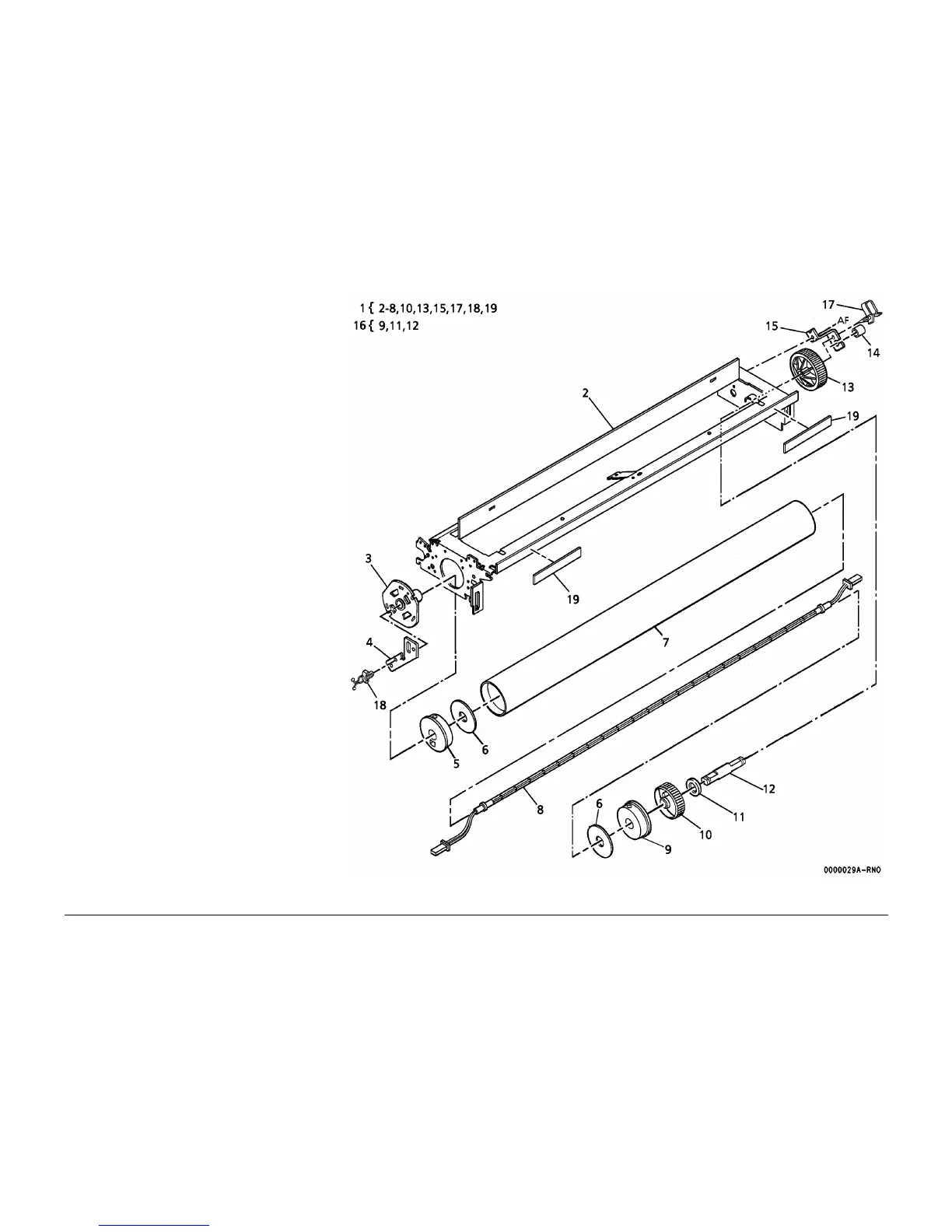

PL 10.2 Fuser Components
Item Part Description
1 – Part of Xerographic Module
Assembly (REF: PL 10.1 Item 1)
2 – Xerographic Frame (P/O PL 10.2
Item 1)
3 005K03430 Fuser Hub
4 – LH Lamp Bracket (P/O PL 10.2
Item 1)
5 005K02613 LH Fuser Bearing
6 062E05461 Reflector
7 022K40050 Fuser Heat Roll (REP 10.2)
8 126E00492 Fuser Heat Rod (60 Hz) (REP 10.1)
– 126E00821 Fuser Heat Rod (50 Hz) (REP
10.1)
9 – RH Fuser Bearing (P/O PL 10.2
Item 16)
10 007E42570 Exit Drive Gear
11 115E02231 Ground Ring
12 006E23471 Fuser Drive Shaft
13 007E42780 Fuser Gear (80t)
14 016E08080 Grommet
15 049E06460 RH Lamp Bracket
16 600K45270 Fuser Drive Shaft Kit
17 120E05440 Clip
18 120E06510 Twist Tie Clamp
19 121E01402 Magnet
To Next Page
