8825/8830 Printer
ADJ 9.6
Repairs and Adjustments
ADJ 9.6 Augers
Purpose
The purpose is to set the Developer Auger and the Mix Auger to the correct angles in order to
ensure proper operation of the Developer Module.
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Check
NOTE: In order to see the flats on the augers, remove the Sump Shield using the Developer
Material removal procedure ( REP 9.7).
1. Remove the Sump Shield.
2. ( Figure 1): Check the flats on the augers.
a. The flats are at the end opposite the gears, approximately one inch from the ends of
the augers.
b. Expose the flats using a brush to move the Developer Material.
c. Looking down on the augers, check that the Developer Auger is pointing toward the
Magnetic Roll at an approximate 45 degree angle.
d. Check that the Mix Auger is pointing away from the Magnetic Roll and is approxi-
mately horizontal.

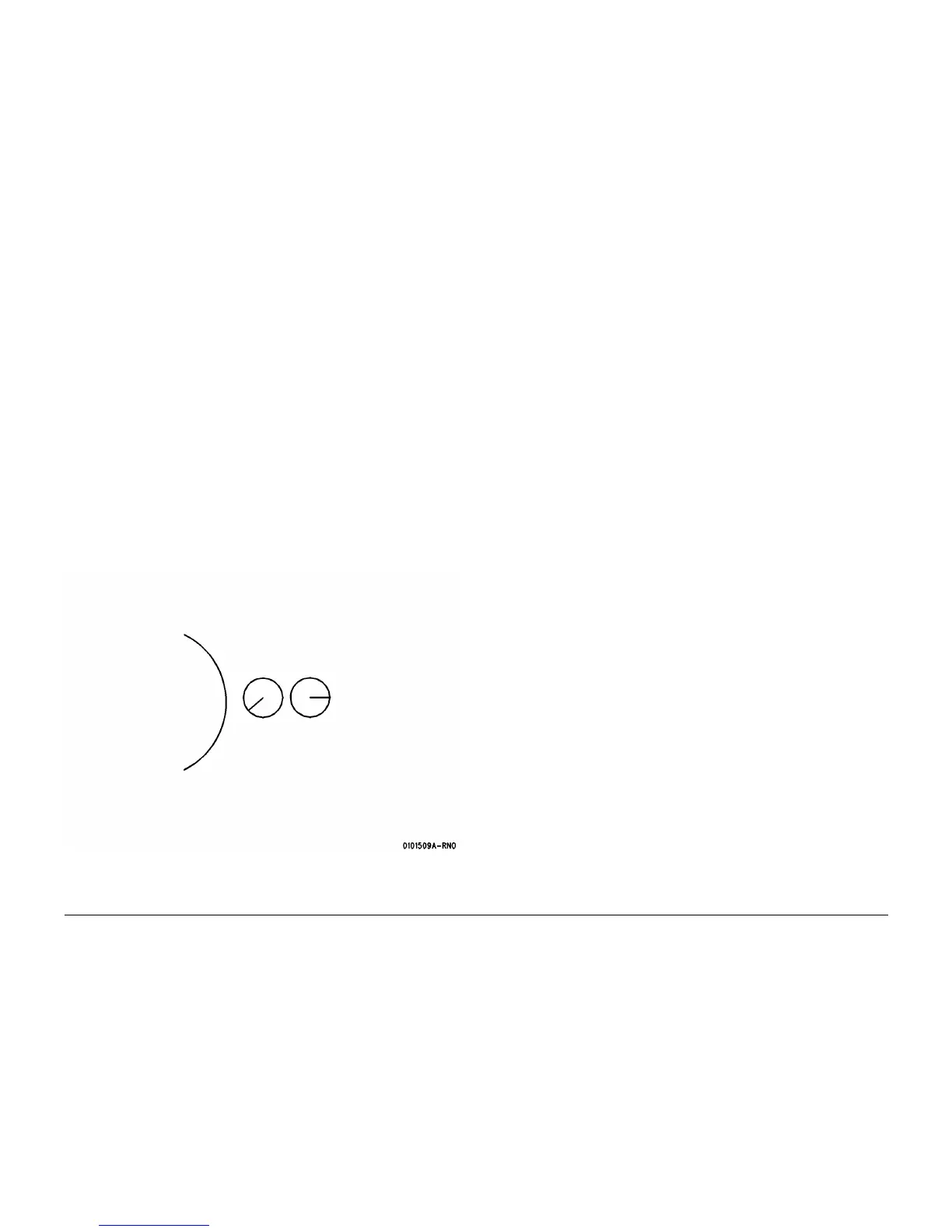

Figure 1 The Correct auger Orientation
Adjustment
NOTE: In order to position the flats on the augers, the Developer Material must be removed. In
order to rotate the augers individually, the gears at the drive end of the Developer Module must
be removed.
1. Remove the Developer Material ( REP 9.7).
2. ( Figure 1): Position the flats on the augers by rotating the appropriate gear at the drive
end of the Developer Module.
a. The flats are at the end opposite the gears, approximately one inch from the ends of
the augers.
b. Looking down on the augers, position the Developer Auger to point toward the Mag-
netic Roll at an approximate 45 degree angle.
c. Position the Mix Auger to point away from the Magnetic Roll, approximately horizon-
tal.
Magnetic Roll
Mix Auger
Developer
Auger
