8825/8830 Printer
REP 9.6
Repairs and Adjustments
REP 9.6 Cartridge Drive Motor
Parts List on PL 9.10
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
2. (Figure 1): Remove the Cartridge Drive Motor.

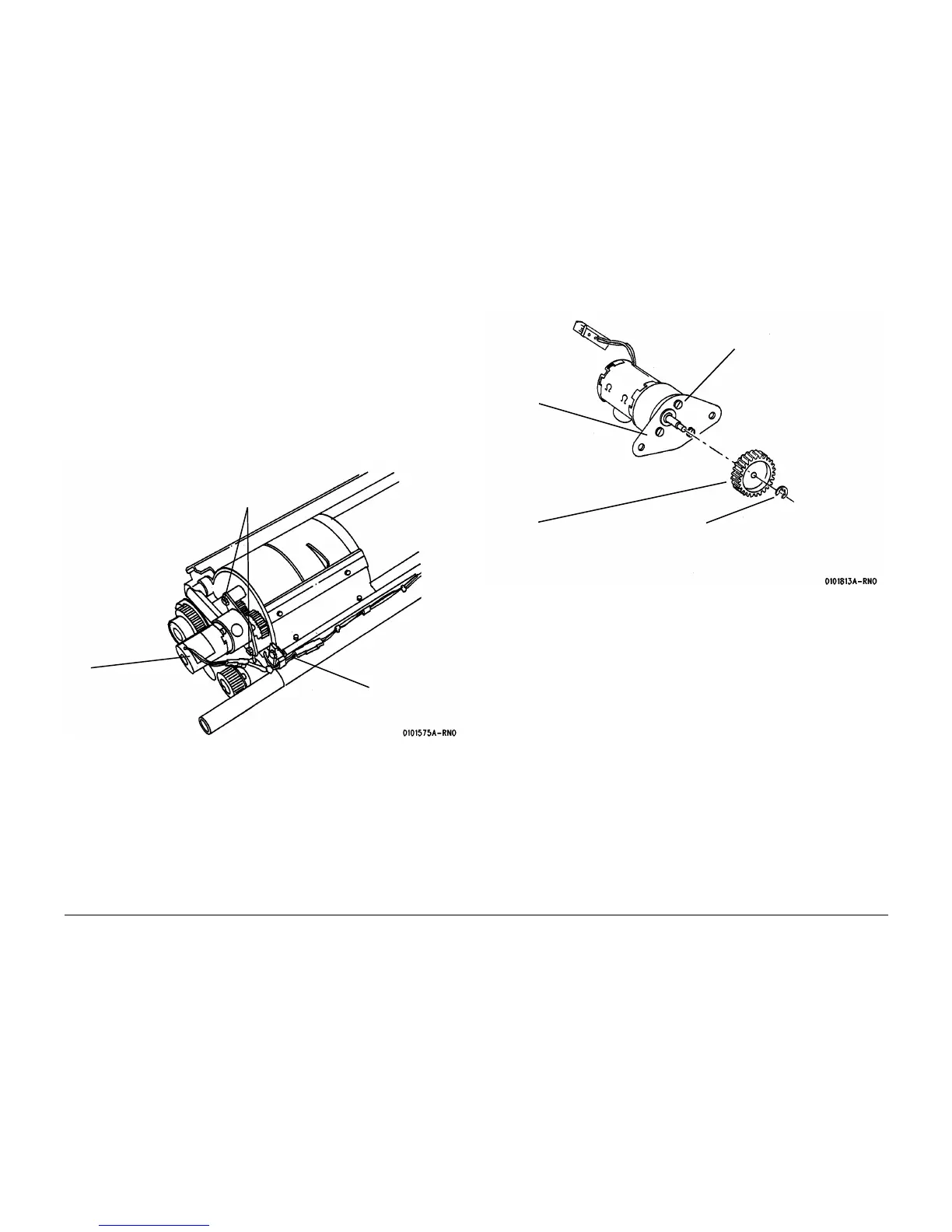

Figure 1 Removing the Cartridge Drive Motor
3. (Figure 2): Remove the Cartridge Drive Motor from the Mounting Plate.
Figure 2 Removing the Cartridge Drive Motor from the Mounting Plate
1
Remove screws
(2) and Ground
2
Remove the Car-
tridge Drive Motor
Ground Wire
4
Remove the Mount-
ing Plate
3
Remove the screws
(3)
2
Remove the gear
1
Remove the E-ring
To Next Page
