Xerox 8825 Service Manual

01/02
5-34
8825/8830 Printer
PL 9.8
Parts Lists

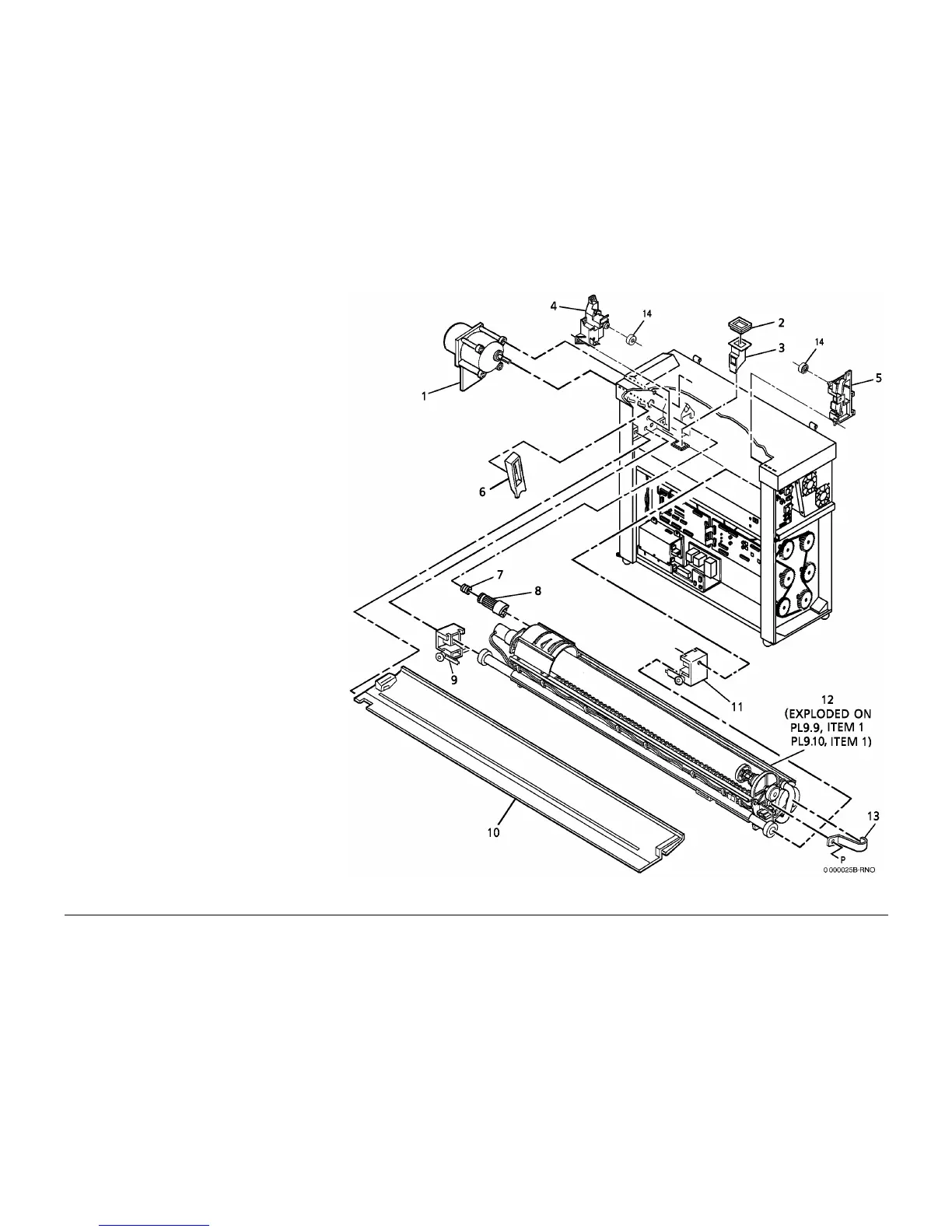

PL 9.8 Developer Module Assembly
Item Part Description
1 127E10341 Drum/Developer Drive Motor
2 035K05900 Gasket
3 010E04190 Trickle Slide
4 014K04740 Developer Support (Drive Side)
5 014K04730 Developer Support
6 028E07771 Retainer
7 009E41251 Coupling Spring
8 007E15351 Drive Gear/Coupling
9 030K56160 Developer Support (Drive Side)
10 050E12851 Developer Baffle
11 030K56150 Developer Support
12 121K10422 Developer Module Assembly (REP
9.5)
13 019E21480 Clip
14 604K00520 Roller Kit (2/Kit) (W/TAG 52)
