01/02
4-101
8825/8830 Printer
ADJ 8.4
Repairs and Adjustments
ADJ 8.4 Media Transport
Purpose
The purpose is to set the correct spacing between the Media Transport and the Drum when a
new Media Transport is installed. The correct spacing is obtained by adjusting the position of
the Lower Turnaround Baffle.
NOTE: The art used for this procedure was developed for previous products and may not
match the printer configuration exactly.
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Check
1. Remove the Developer Module ( REP 9.5).
2. Remove the white toner shield.
3. Prepare two strips of 0.030 inch (coral) shimstock 0.75 inches (20 mm) wide.
4. Ensure that the Media Transport Cover is closed.
5. ( Figure 1): Check that the Media Transport to Drum spacing is 0.030 +/- 0.005 inches
(0.76 +/- 0.1
µµ).

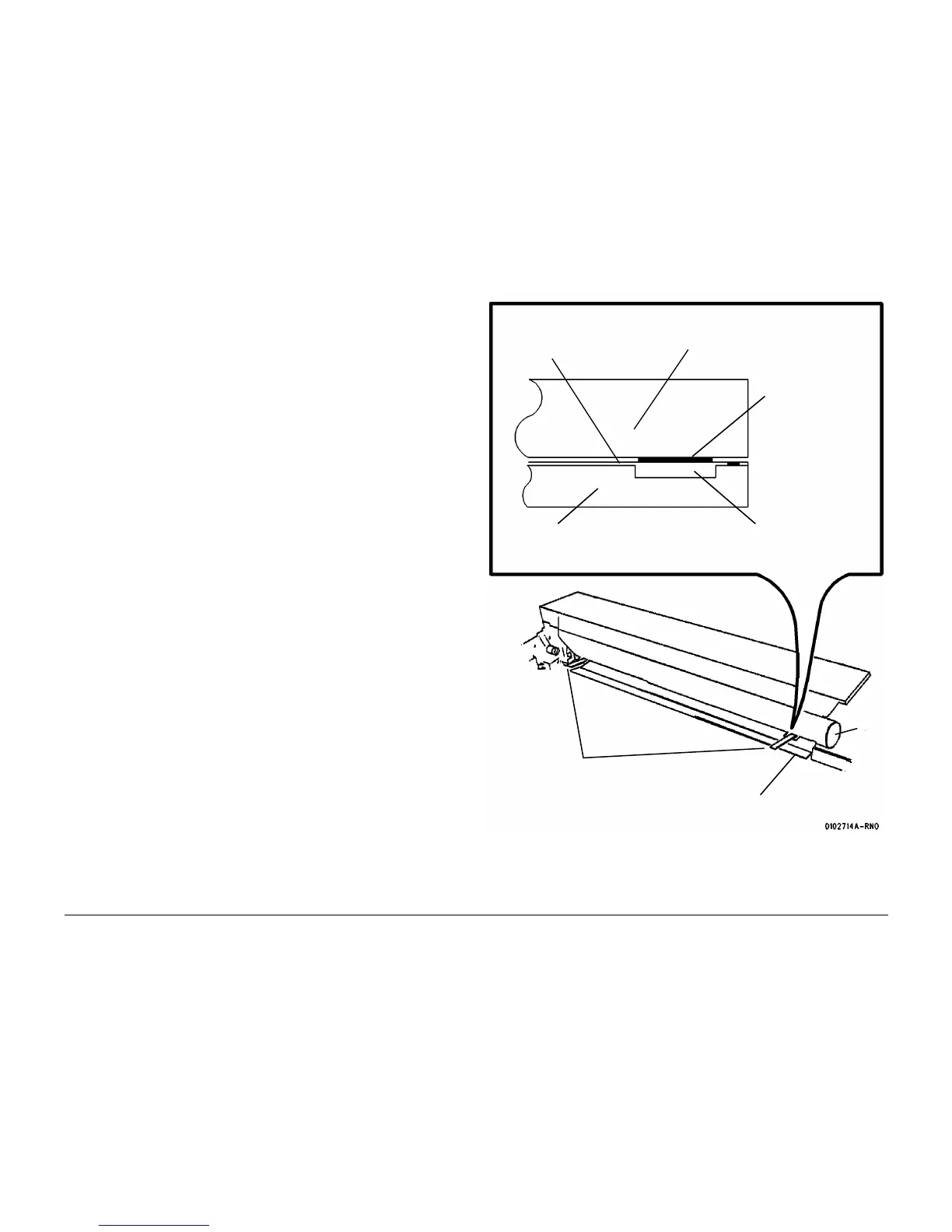

Figure 1 Checking the Media Transport to Drum Spacing
2
Shim should just fit in
the Lower Baffle to
Drum gap
1
Position shims in
notches of Turn-
around Baffle
Turnaround Baffle
Notch
Upper Baffle
Lower Baffle
Drum
Turnaround Baffle
Drum
iew from Right
ide of Printer
View from Top
To Next Page
