8825/8830 Printer

PL 14.1

Parts Lists

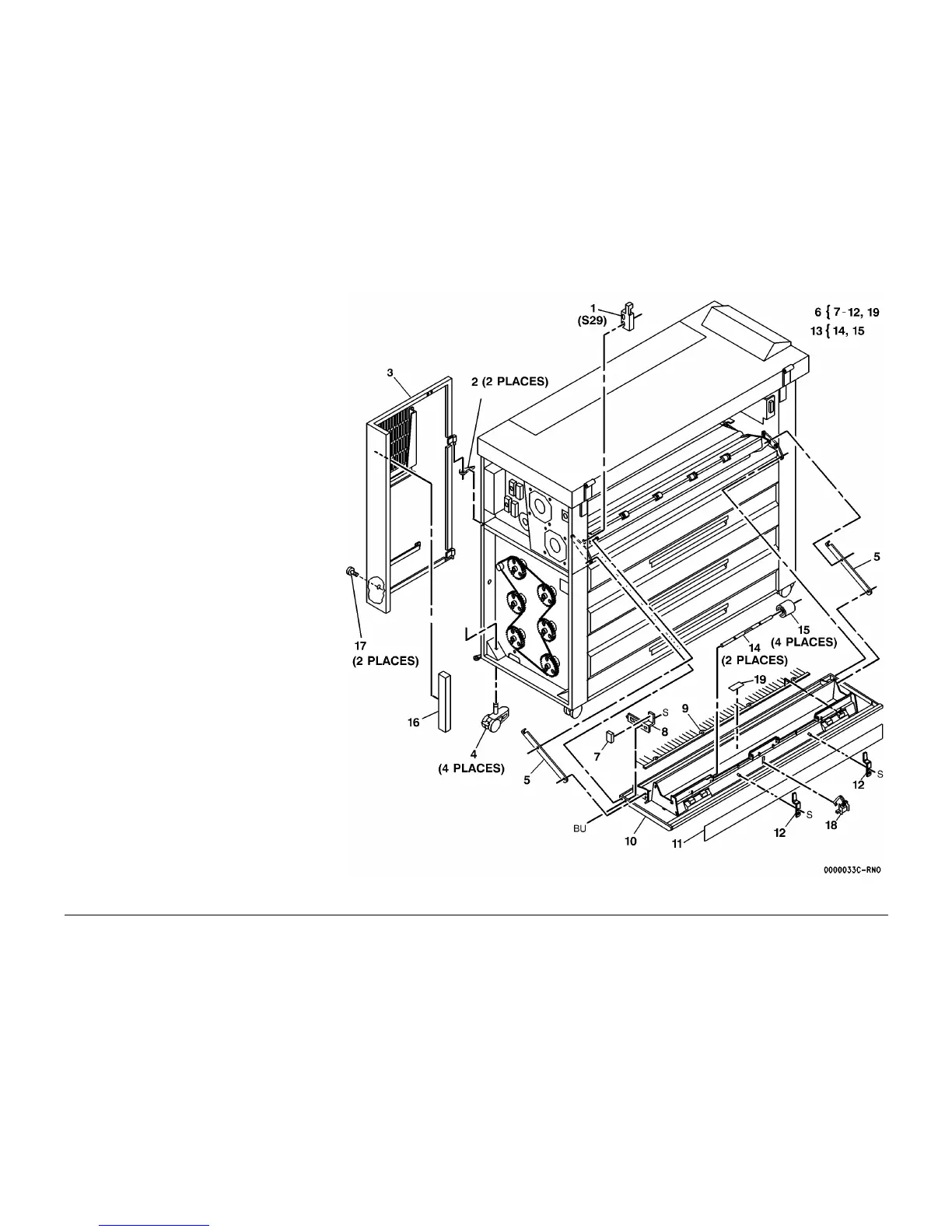

PL 14.1 Transport Latching Cover

And Rear Door

Item Part Description

1 130E02271 Feed Shelf Interlock Switch (S29)

2 014E20541 Left Hinge Spacer

3 048K47700 Rear Door

4 017K01120 Caster

5 – Bracket (Not Spared)

6 030K55634 Transport Latching Cover

Assembly (8830) (W/TAG 32),

Transport Latching Cover

Assembly (8825) (W/TAG 90)

– 030K64020 Transport Latching Cover

Assembly (8825) (W/O TAG 90)

7 121E07680 Magnet

8 019E33441 Ground Retainer

9 115E01410 Static Brush

10 – Transport Latching Cover (P/O PL

14.1 Item 6)

11 096E72590 Label

– 096E72591 Label

12 809E02290 Shaft Spring

13 600K59260 Exit Idler Roll Kit

14 – Shaft (P/O PL 14.1 Item 13)

15 – Roll (P/O PL 14.1 Item 13)

16 035E41160 Gasket

17 029E28060 Fastener

18 110K09430 Switch

19 – Label (P/O PL 14.1 Item 6)
