8825/8830 Printer
REP 8.6
Repairs and Adjustments
REP 8.6 Sheet Drive Roll - 8830 and 8825 with Tag/MOD 90
Parts List on PL 8.3
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825\8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Remove the Cut Sheet Media Feed Clutch (REP 8.4).
6. (Figure 1): Remove the Timing Belt and the bearings.

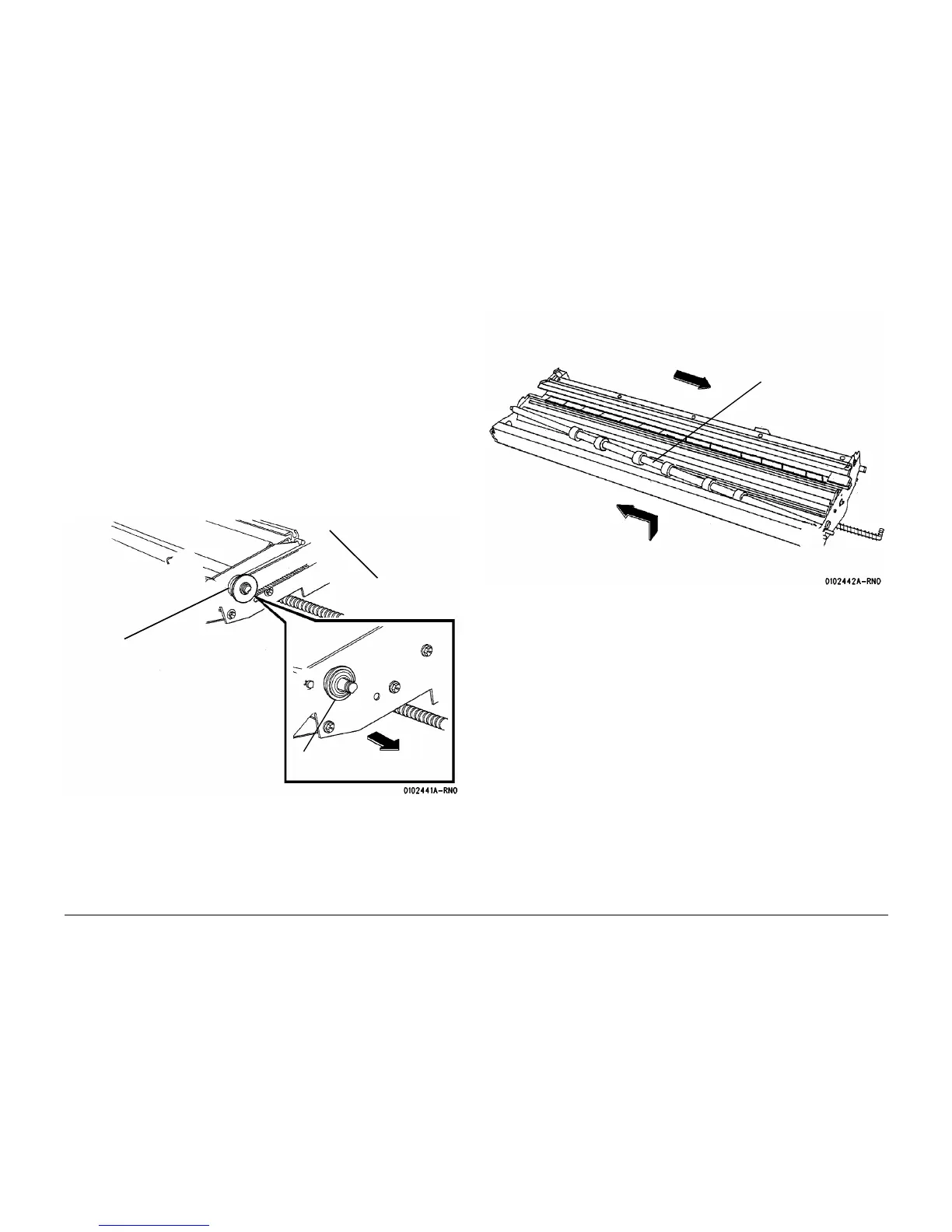

Figure 1 Removing the Bearings
7. (Figure 2): Remove the Sheet Drive Roll.
Figure 2 Removing the Sheet Drive Roll
2
Remove the Pulley
Clutch and Timing Belt
3
Remove the E-ring and bearing
4
Remove the E-ring, Drag Brake, E-ring
and bearing at the opposite end of the
Drive Roll (not shown)
1
Remove the E-ring and
pulley (not shown)
Remove the Sheet Drive Roll
To Next Page
