01/02
4-9
8825/8830 Printer
REP 7.2
Repairs and Adjustments
REP 7.2 Rewind Gear and Rewind Internal Gear
Parts List on PL 7.3
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: All three Rewind Gears and Rewind Internal Gear Assemblies are removed the same
way.
Removal
1. Pull out the Media Supply Drawer.
2. Remove the roll of media.
3. (Figure 1): Remove the Rewind Gear and the Rewind Internal Gear.

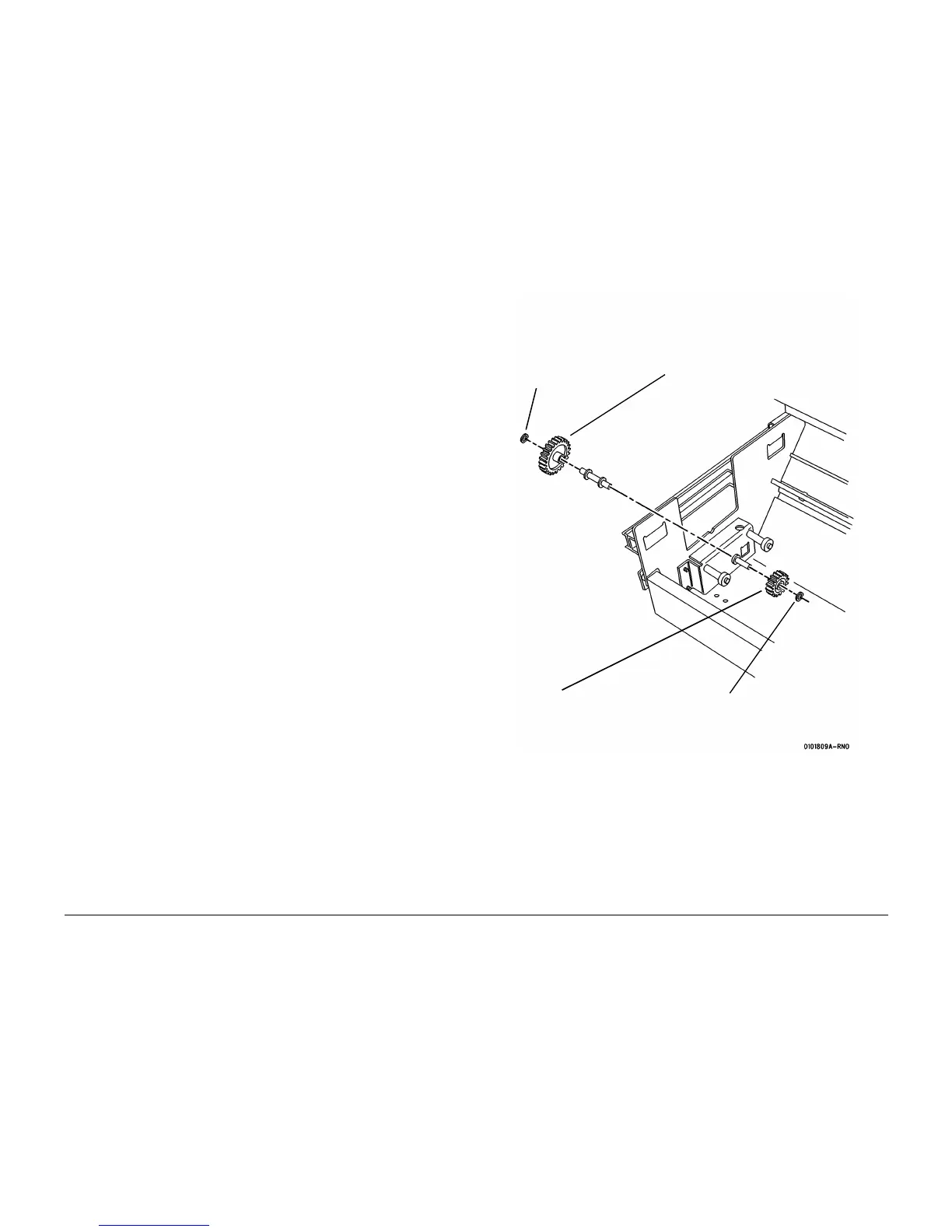

Figure 1 Removing the Rewind Gears
4
Remove the
Rewind Gear
3
Remove the E-ring
2
Remove the Rewind
Internal Gear
1
Remove the E-ring
To Next Page
