01/02
5-10
8825/8830 Printer
PL 1.2B
Parts Lists

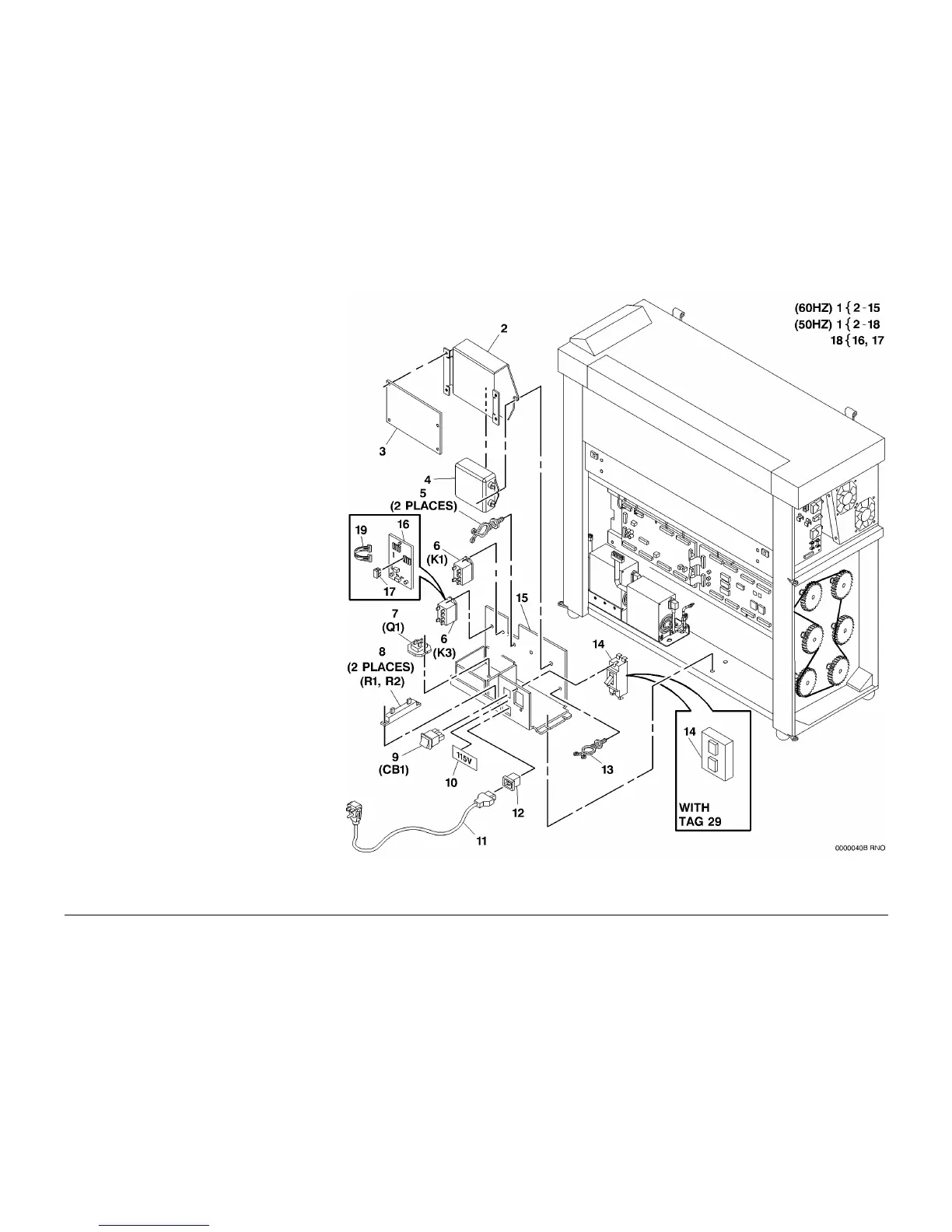

PL 1.2B AC Electrical Components
(W/TAG 25)
Item Part Description
1 – AC Module Assembly (Not Spared)
(50/60 Hz)
2 – PWB Bracket (Not Spared)
3 160K59660 PWB
4 142K01540 Filter
5 120E02160 Twist Clamp
6 109E01040 AC Relay (K1) (50/60 Hz), AC
Relay (K3) (60 Hz) (K1/K3)
7 707W01652 Fuser Triac (Q1) (REP 10.3)
8 103E02721 Ballast Resistor (R1/R2) (60HZ)
– 103E02731 Ballast Resistor (R1/R2) (50HZ)
9 – Main Power Switch (CB1) (P/O PL
1.2B Item 1)
10 891E25140 Label (60HZ Only)
11 117K22761 Power Cord (60 Hz)
– 117K27550 Power Cord (50 Hz)
12 – Inlet Connector (P/O PL 1.2B Item
1)
13 120E02150 Twist Clamp
14 108E02282 Residual Current Breaker (20A) (W/
TAG 29)
– 108E05310 Ground Fault Panel (20A) (W/O
TAG 29)
15 – AC Module Housing (P/O PL 1.2B
Item 1) (50/60 Hz)
16 – Heat Rod Control PWB (P/O PL
1.2B Item 18) (W/TAG 50)
17 604K04430 Fuser Control Kit (PIC) (W/TAG 50)
18 160K73561 Heat Rod Control PWB Assembly
(50 Hz) (W/TAG 50)
19 162K68390 Interconnect Harness
To Next Page
