Xerox 8825 - REP 8.4 Cut Sheet Media Feed Clutch - 8830 and 8825 with Tag;Mod 90

01/02
4-25
8825/8830 Printer
REP 8.4
Repairs and Adjustments
REP 8.4 Cut Sheet Media Feed Clutch - 8830 and 8825 with
Tag/MOD 90
Parts List on PL 8.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. (Figure 1): Remove the Cut Sheet Media Feed Clutch.

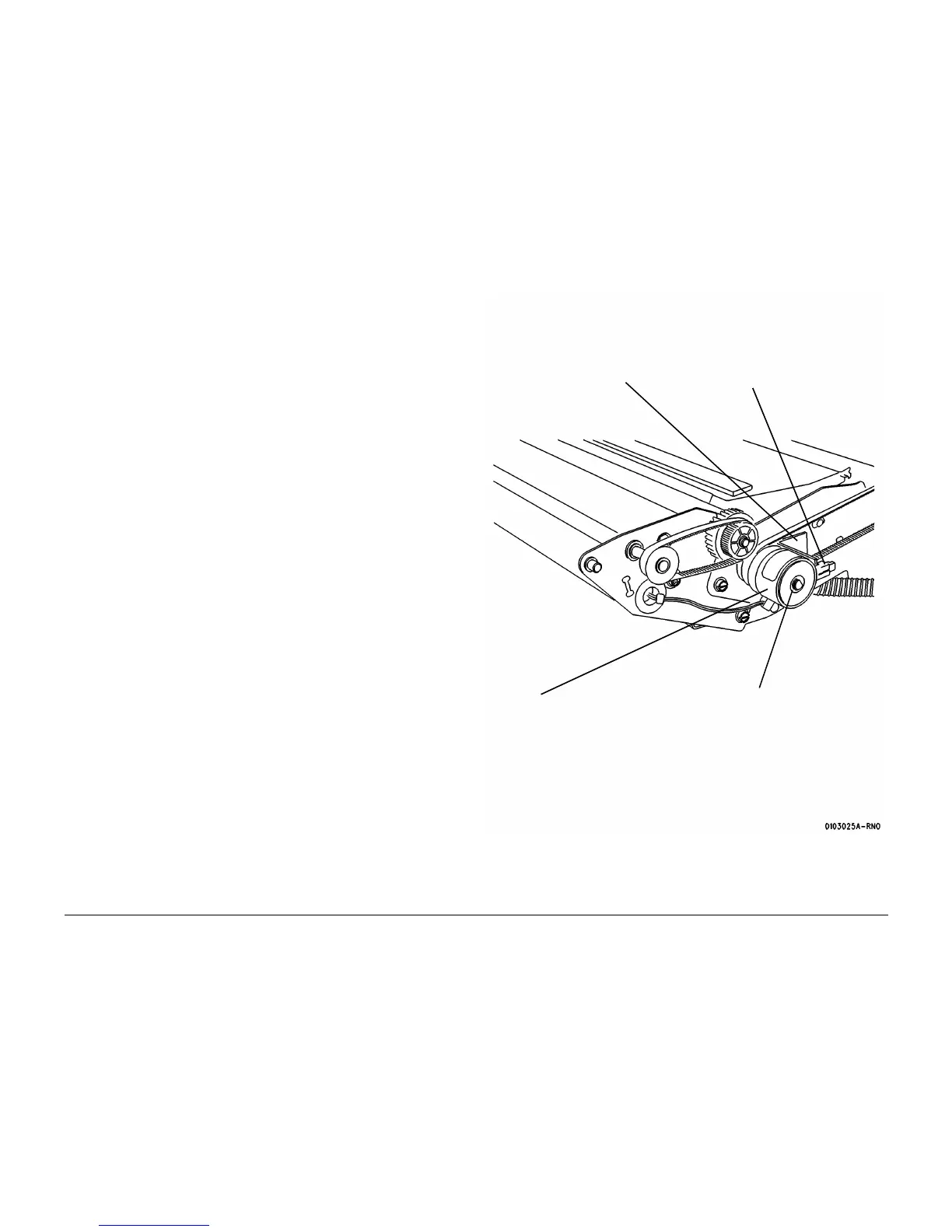

Figure 1 Removing the Cut Sheet Media Feed Clutch
4
Pull the clutch off the
shaft
3
Remove the E-ring
2
Remove the screw and
the bracket
1
Disconnect the connec-
tor from the clutch
