01/02
4-26
8825/8830 Printer
REP 8.5
Repairs and Adjustments
REP 8.5 Pressure Plates
Parts List on PL 10.3
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Fabric Guide (REP 8.9).
CAUTION
Be sure to push the Buckle Switch Actuator down while starting to remove the Upper Pressure
Plate in order to prevent damage to the actuator.
4. (Figure 1): Remove the Upper and Lower Pressure Plates.

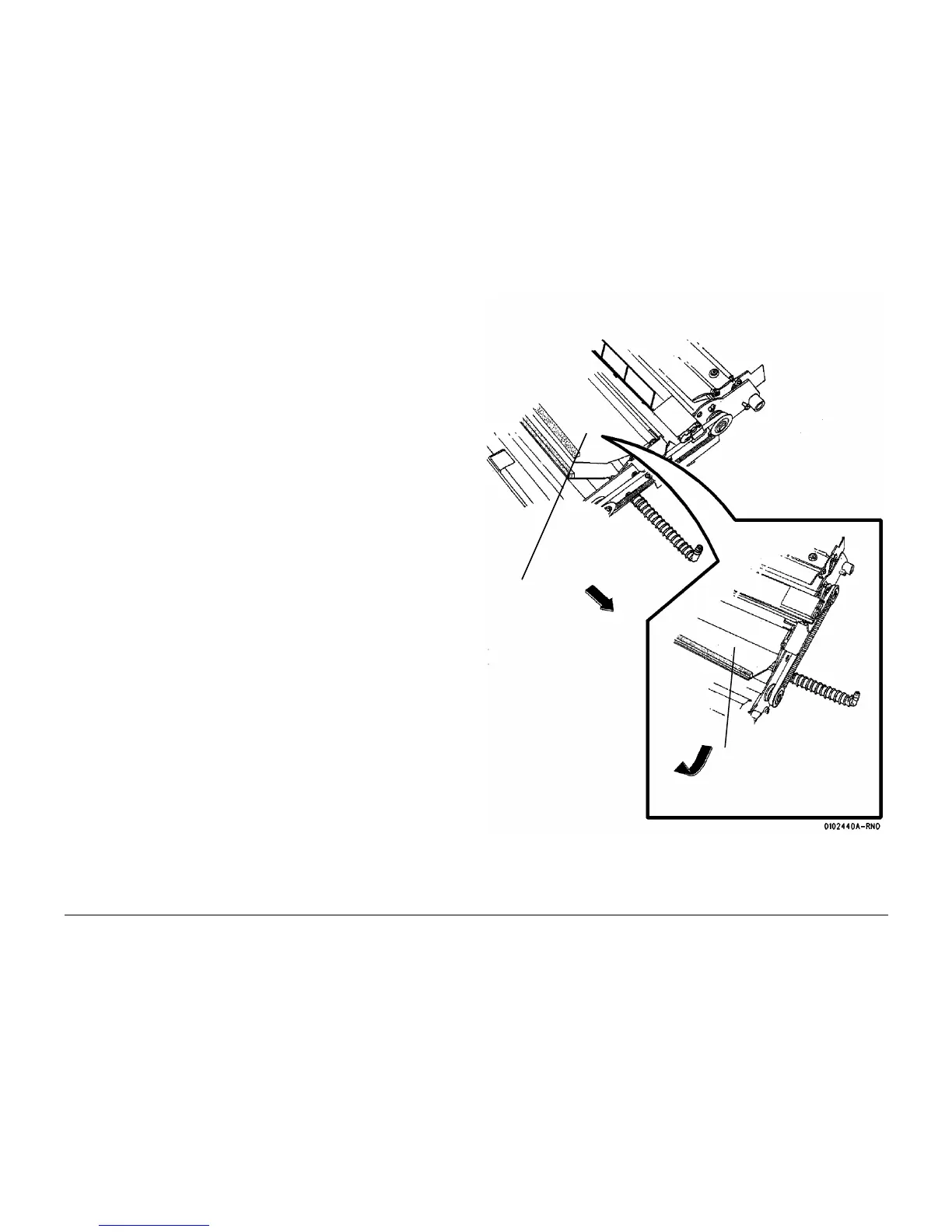

Figure 1 Removing the Pressure PLates
1
Push the Buckle
Switch Actuator
down (not shown)
2
Remove the Upper
Pressure Plate
3
Remove the Lower
Pressure Plate
To Next Page
