01/02
4-27
8825/8830 Printer
REP 8.5
Repairs and Adjustments
Replacement
CAUTION
Be careful not to damage the Sheet Media Switch Actuator while reinstalling the Lower Pres-
sure Plate.

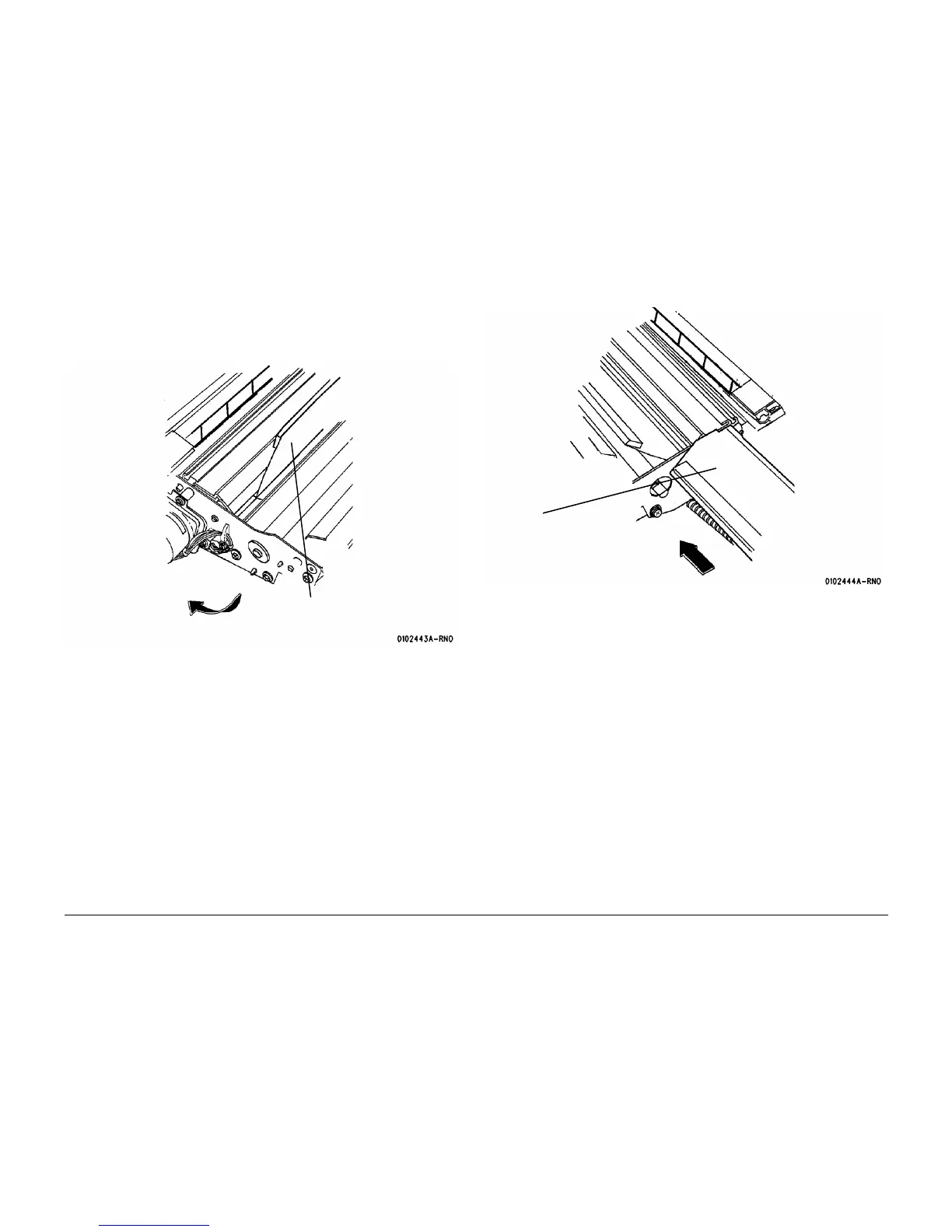

1. (Figure 2): Reinstall the Lower Pressure Plate.
Figure 2 Reinstalling the Lower Pressure Plate
CAUTION
Be sure to push the Buckle Switch Actuator down while reinstalling the Upper Pressure Plate in
order to prevent damage to the actuator.
2. (Figure 3): Reinstall the Upper Pressure Plate.
Figure 3 Reinstalling the Upper Pressure Plate
Reinstall the Lower
Pressure Plate
1
Push the Buckle Switch
Actuator down (not
shown)
2
Reinstall the Upper
Pressure Plate
To Next Page
