01/02
4-94
8825/8830 Printer
REP 10.8, REP 10.9
Repairs and Adjustments
Replacement
CAUTION
Do not bend the Stripper Finger too far or it will break.
1. (Figure 2): Reinstall the Stripper Fingers.

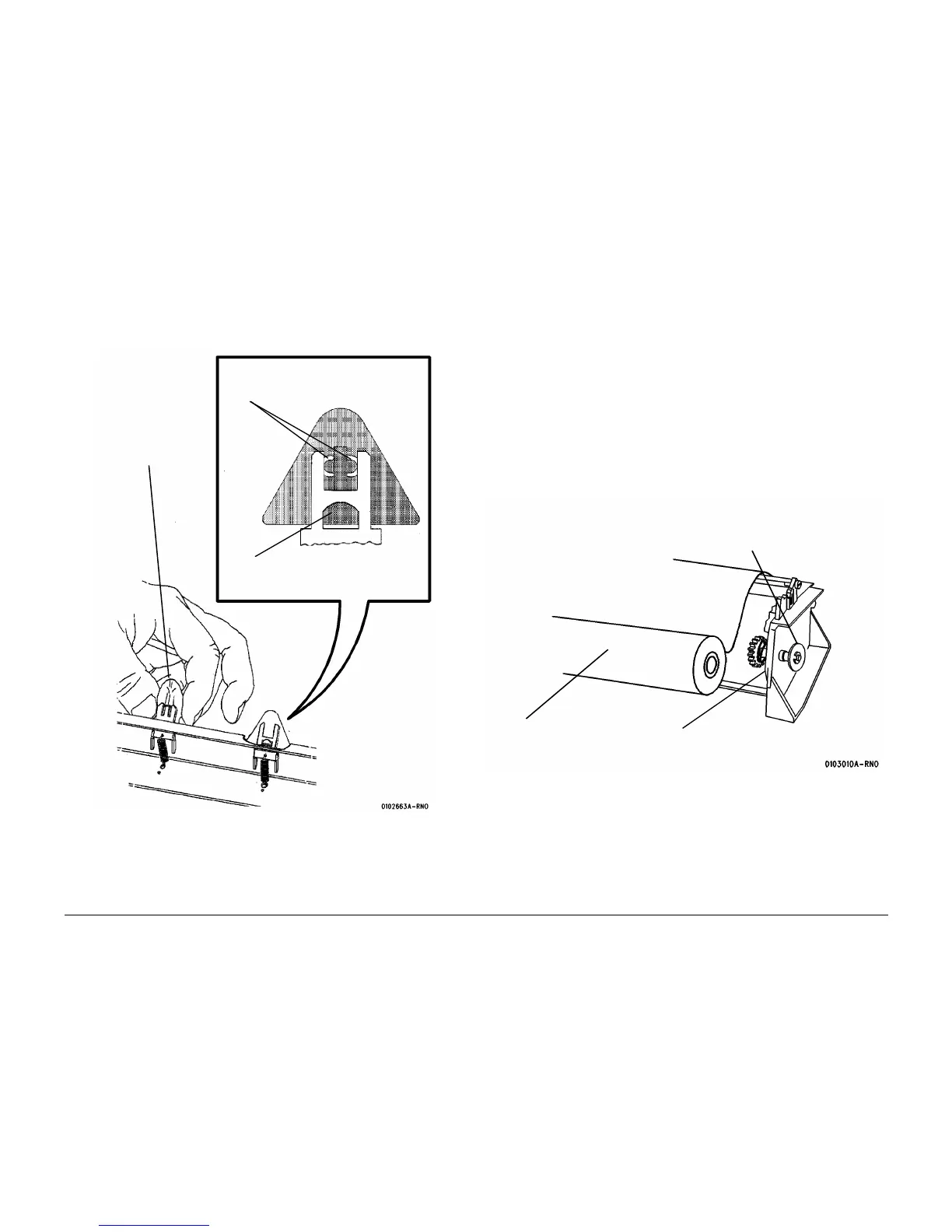

Figure 2 Reinstalling the Stripper Fingers
REP 10.9 Web Oiler
Parts List on PL 9.7
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
WARNING
Wear protective gloves when handling parts with silicone oil on them. Do not allow sili-
cone oil to contact your eyes. Silicone oil can cause severe eye irritation. Wash your
hands immediately after handling any component covered with silicone oil.
Removal
1. Remove the Web Oiler Assembly and place it top down, resting on the handles, on a flat
surface (REP 10.7).
2. (Figure 1): Remove the Supply Roll.
Figure 1 Removing the Supply Roll
1
Squeeze the
Stripper Finger
3
Align the tabs to
straighten the finger
2
Push the Stripper Finger on until the
tab snaps up
1
Pull the knob to release the Sup-
ply Roll (rotate to lock)
RH Side Plate
Supply Roll
To Next Page
