Xerox 8825 - ADJ 9.5 Toner Cartridge Home Sensor

01/02
4-113
8825/8830 Printer
ADJ 9.5
Repairs and Adjustments
ADJ 9.5 Toner Cartridge Home Sensor
Purpose
The purpose is to set the Toner Cartridge Home Sensor to the correct distance from the mag-
net on the Toner Cartridge.
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Check
1. Remove the Developer Module ( REP 9.5).
2. Remove the Cartridge Drive Plate ( REP 9.14).
3. ( Figure 1): Check that the tip of the Toner Cartridge Home Sensor is 2.5 0.5 mm from
the plate.

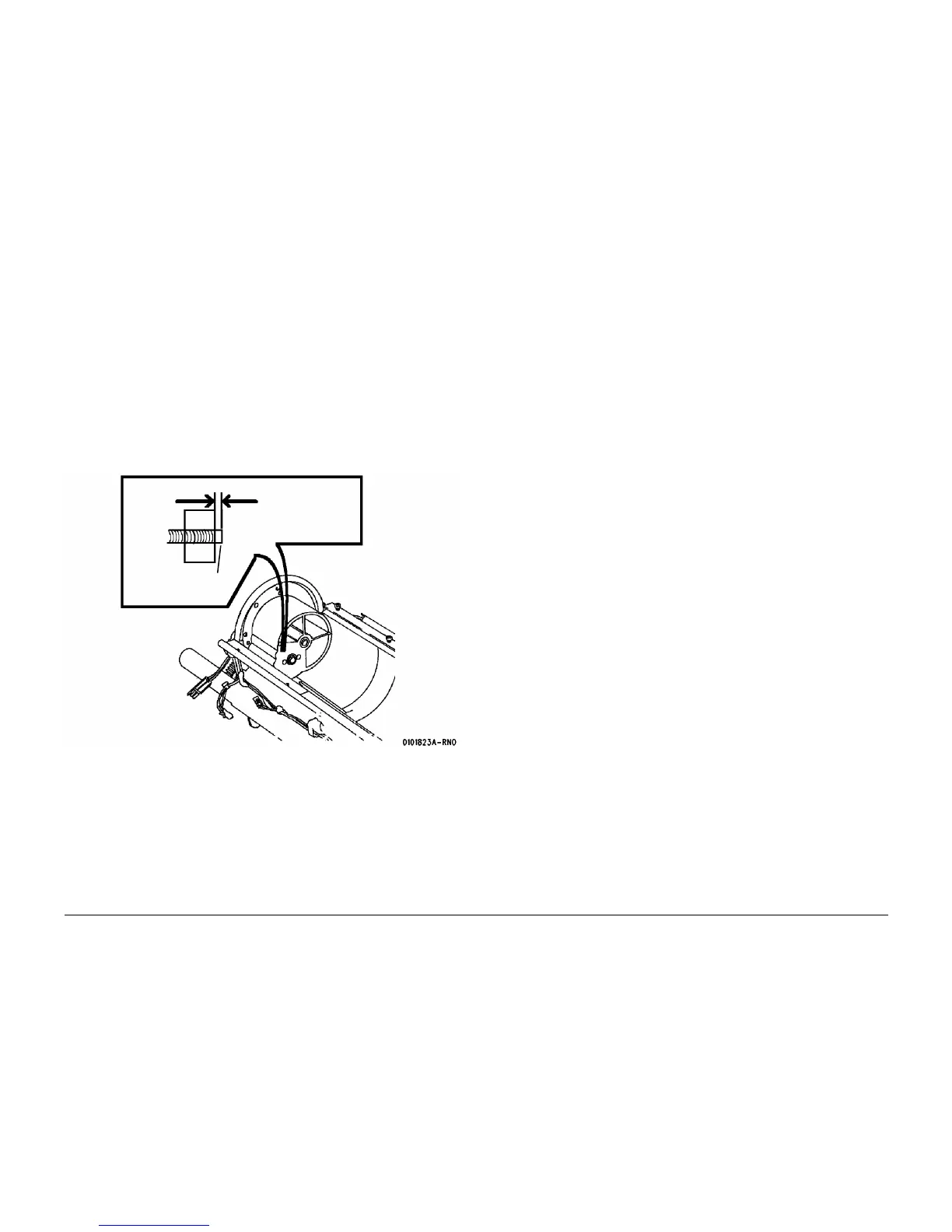

Figure 1 Checking the Position of the Toner Cartridge Home Sensor
Adjustment
1. Perform the check.
NOTE: The Toner Cartridge Home Sensor is threaded. The wires must be disconnected and
straightened in order to rotate the sensor for adjustment.
2.5 +/- 0.5 mm
Toner Cartridge
Home Sensor
