Xerox 8825 Service Manual

01/02
4-114
8825/8830 Printer
ADJ 9.5
Repairs and Adjustments
2. ( Figure 2): Adjust the Toner Cartridge Home Sensor to 2.5
± 0.5 mm from the plate.

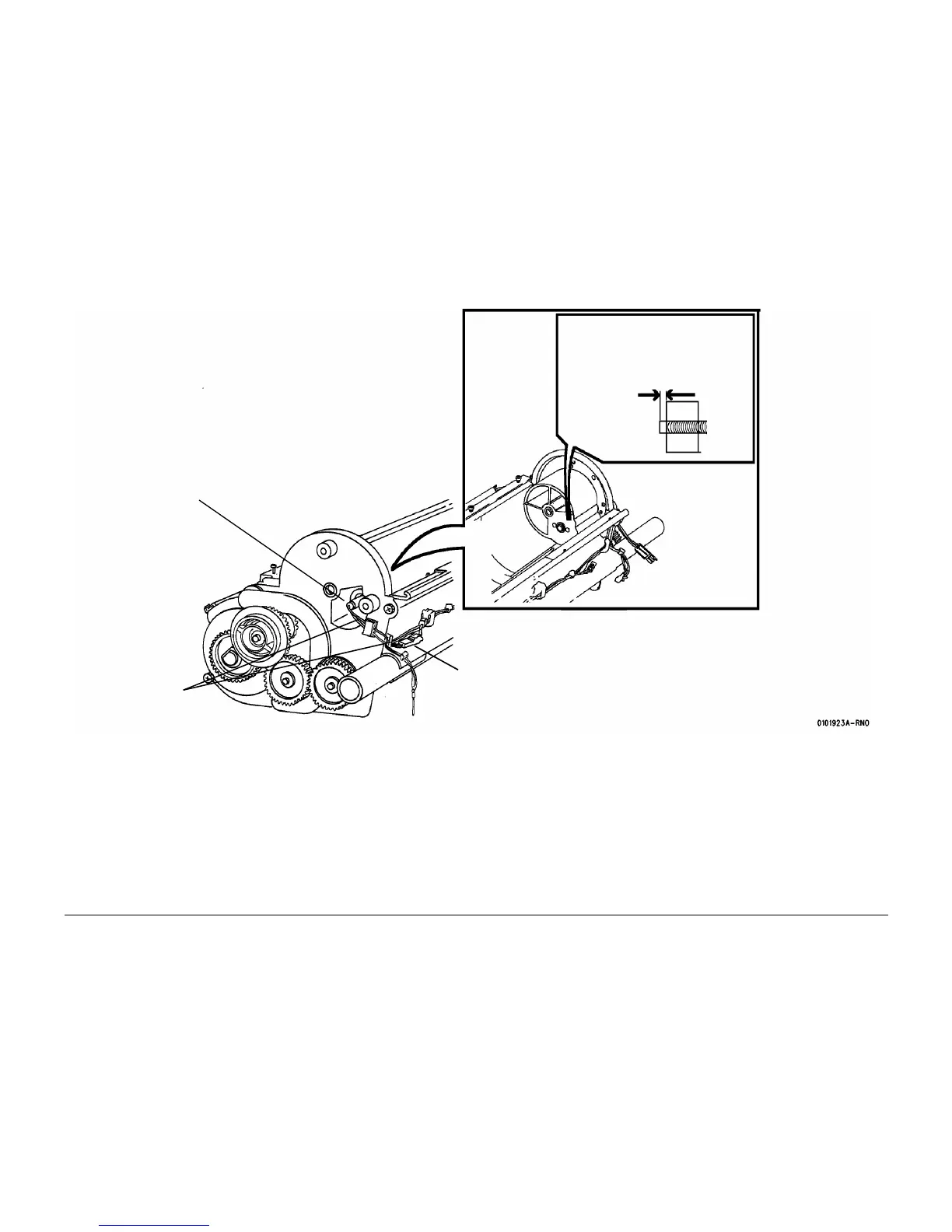

Figure 2 Adjusting the Toner Cartridge Home Sensor
2.5 +/- 0.5 mm
1
Disconnect Q2
3
Straighten the wires and adjust the
sensor
2
Remove the wires
from the clamps (2
places)
