01/02
4-32
8825/8830 Printer
REP 8.9, REP 8.10
Repairs and Adjustments
Replacement
1. (Figure 2): Reinstall the Fabric Guide.

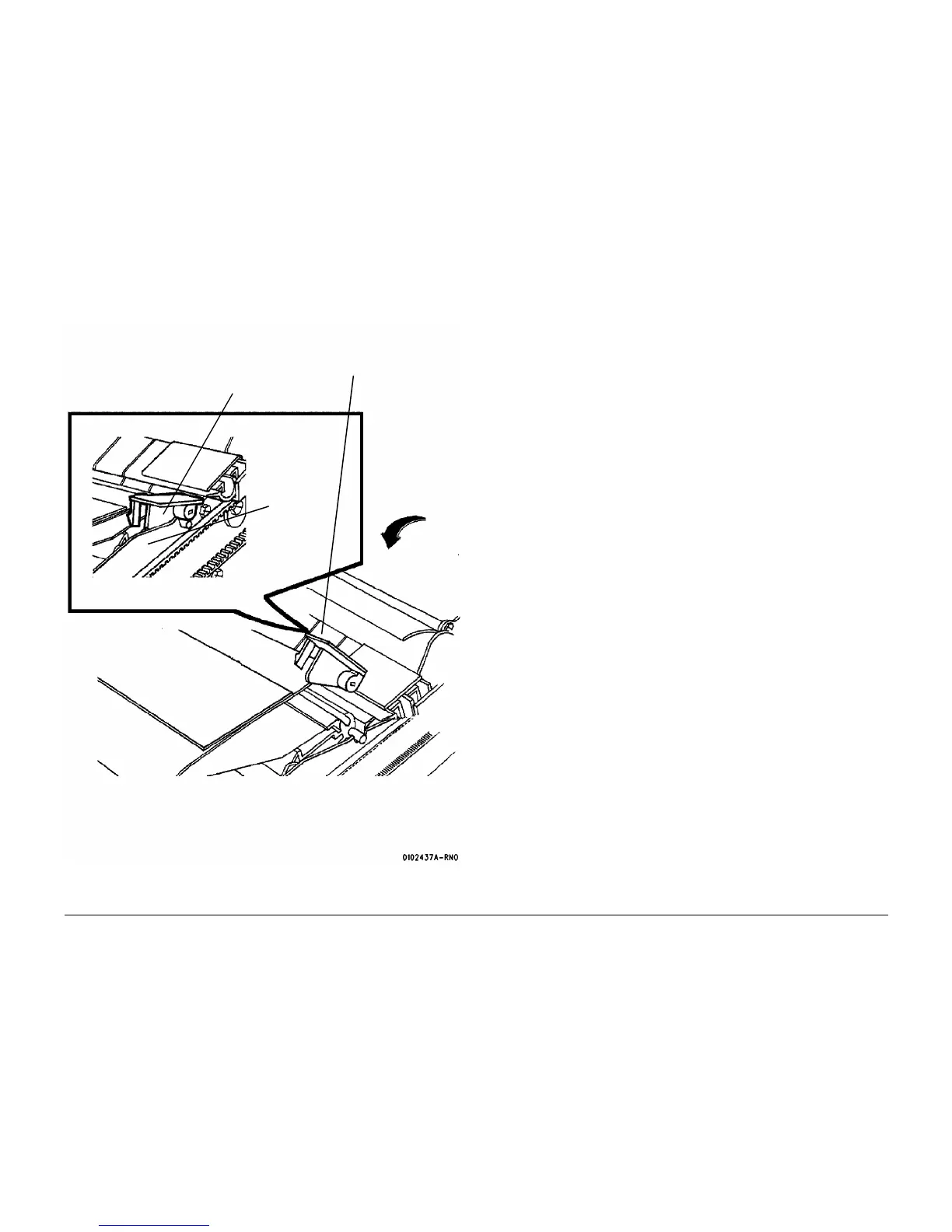

Figure 2 Reinstalling the Fabric Guide
REP 8.10 Media Transport Drive Motor
Parts List on PL 8.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Turn the Media Transport Assembly over.
1
Ensure that the edge of
the handle is inside the
edge of the frame
2
Latch the Retainer Bar
Frame
To Next Page
