01/02
5-14
8825/8830 Printer
PL 7.2
Parts Lists

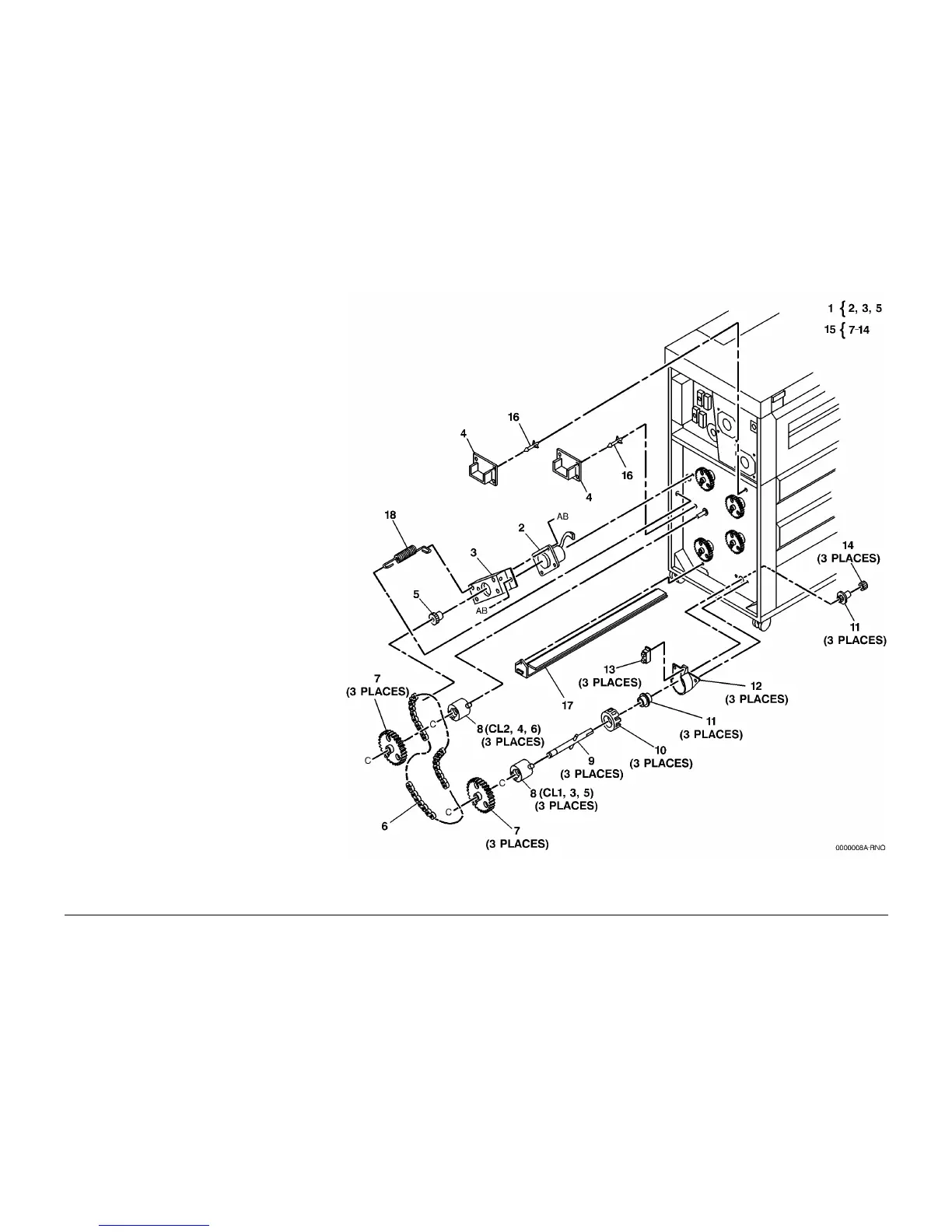

PL 7.2 Roll Supply Drives
Item Part Description
1 007K07561 Roll Drive Motor Assembly
2 127K04293 Roll Drive Motor (REP 7.9)
3 – Bracket (P/O PL 7.2 Item 1)
4 160K23870 Drive Motor PWB
5 007E16410 Main Drive Sprocket (10T)
6 023E06750 Chain (8830)
– 023E17510 Chain (8825)
7 007E19071 Sprocket (50T)
8 121E07510 Clutch (Feed, Rewind) (REP 7.5
REP 7.6)
9 – Rewind Shaft (P/O PL 7.2 Item 15)
10 005E06810 Encoder Disk (REP 7.11)
11 413W30854 Bearing
12 – Rewind Housing (P/O PL 7.2 Item
15)
13 130E03250 Motion Sensor (REP 7.7)
14 007E14610 Rewind Drive Gear (12T)
15 007K05760 Rewind Drive Assembly
16 – Standoff (Not Spared)
17 – Media Roll Heater (Not Spared)
(50/60 Hz) (REP 7.10A)
18 009E43260 Motor Spring
To Next Page
