Xerox 8825 - Xerographic Module; PL 9.2 Photoreceptor

01/02
5-26
8825/8830 Printer
PL 9.2
Parts Lists

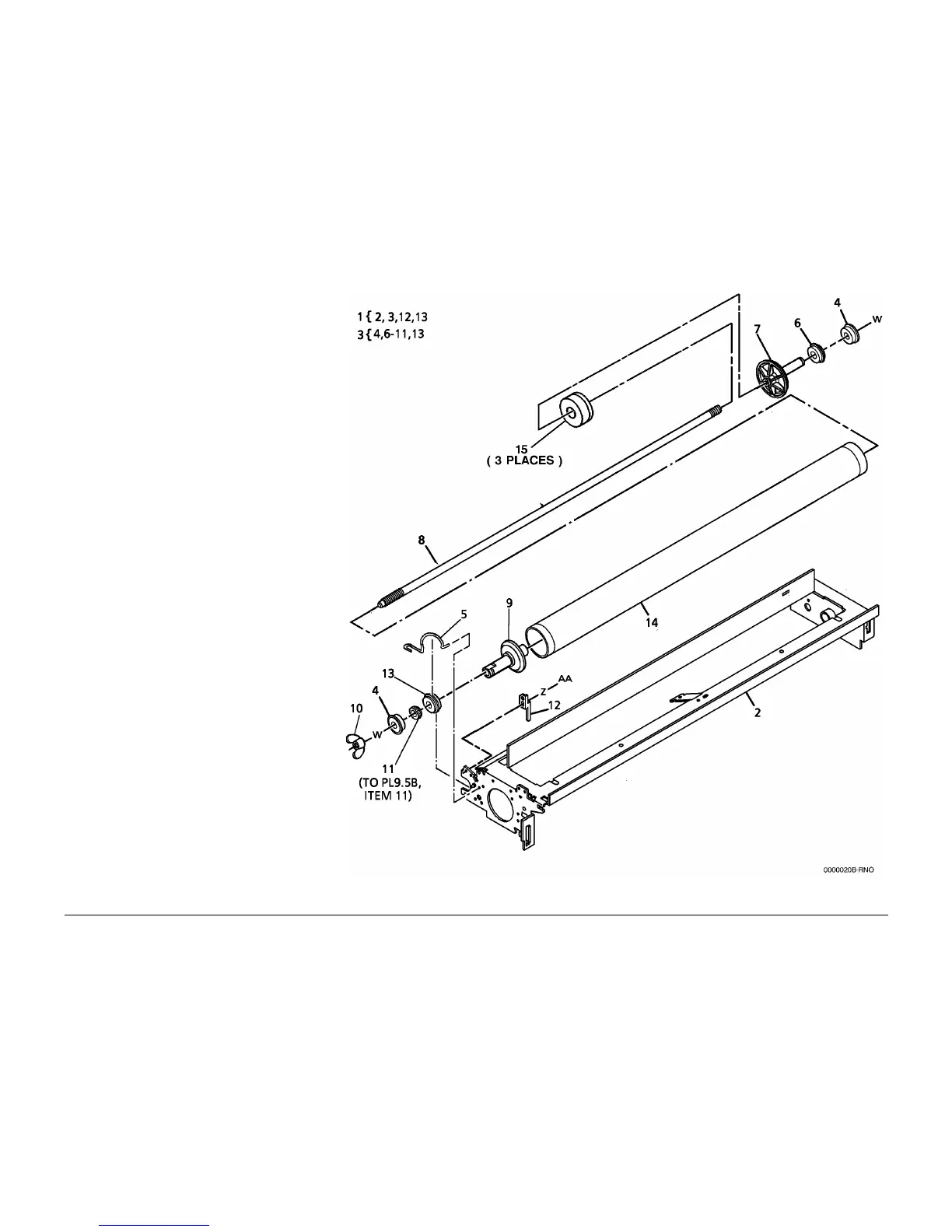

PL 9.2 Photoreceptor
Item Part Description
1 – Part of Xerographic Module
Assembly (REF: PL 9.1 Item 4)
2 – Xerographic Frame (P/O PL 9.2
Item 1)
3 006K15640 Shaft Assembly
4 013K00380 Bearing
5 028E11470 Bearing Retainer
6 – Bearing (P/O PL 9.2 Item 3)
7 005K04131 RH End Cap
8 – Shaft (P/O PL 9.2 Item 3)
9 005K04201 LH Hub
10 230W00652 Wing Nut
11 007E01340 Toner Auger Drive Gear
12 030E16161 Ground Clip
13 – Bearing (P/O PL 9.2 Item 1)
14 001R00535 Photoreceptor (REP 9.3)
15 604K00440 Foam Damper Kit (3/Kit)
