01/02
5-25
8825/8830 Printer
PL 9.1
Parts Lists

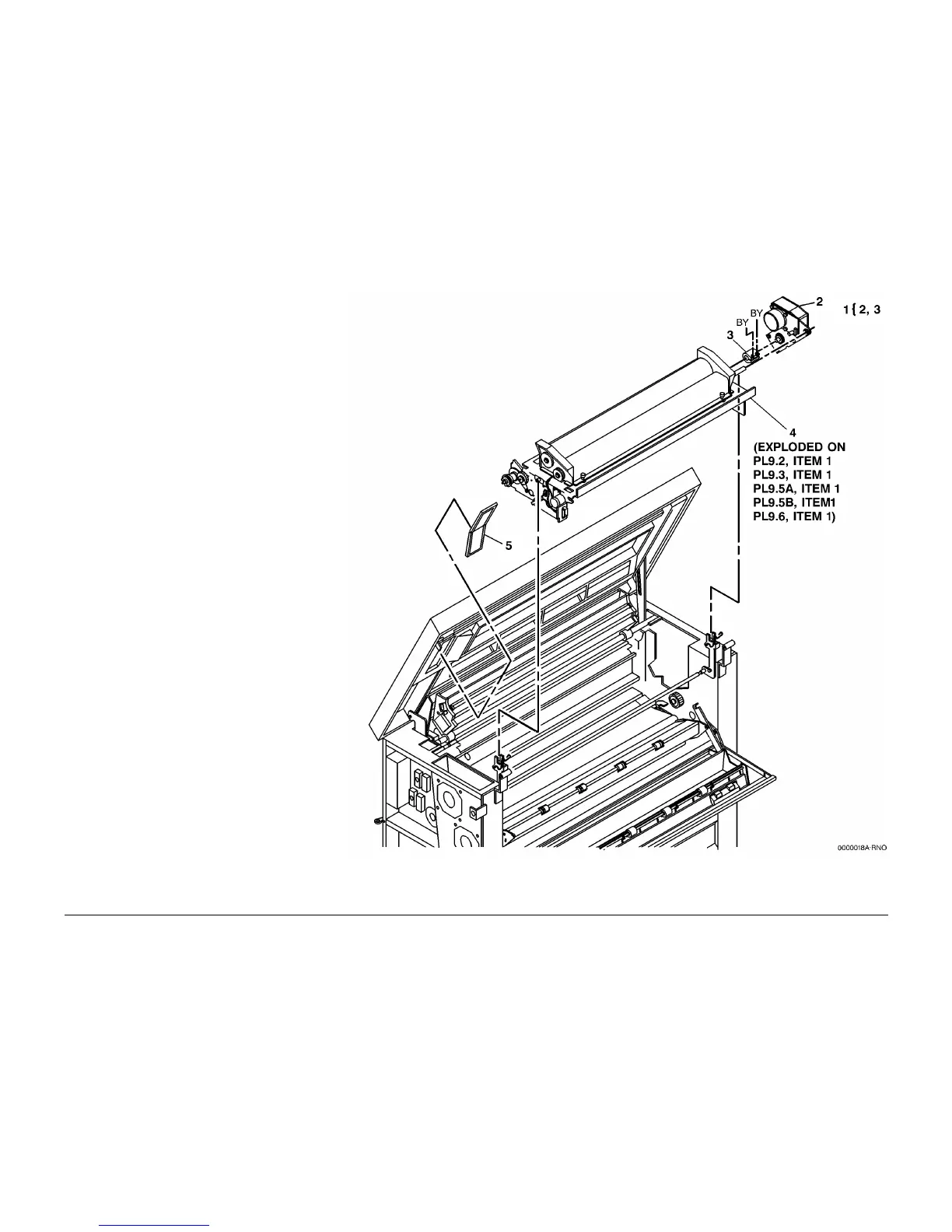

PL 9.1 Xerographic Module Assembly
Item Part Description
1 127K17882 Photoreceptor Drive Assembly
2 – Photoreceptor Drive (P/O PL 9.1
Item 1)
3 005K04151 Coupling
4 126K05992 Xerographic Module Assembly (60
Hz) (REP 9.1)
– 126K07152 Xerographic Module Assembly (50
Hz) (REP 9.1)
5 053E04750 Ozone Filter
