8825/8830 Printer

PL 10.3

Parts Lists

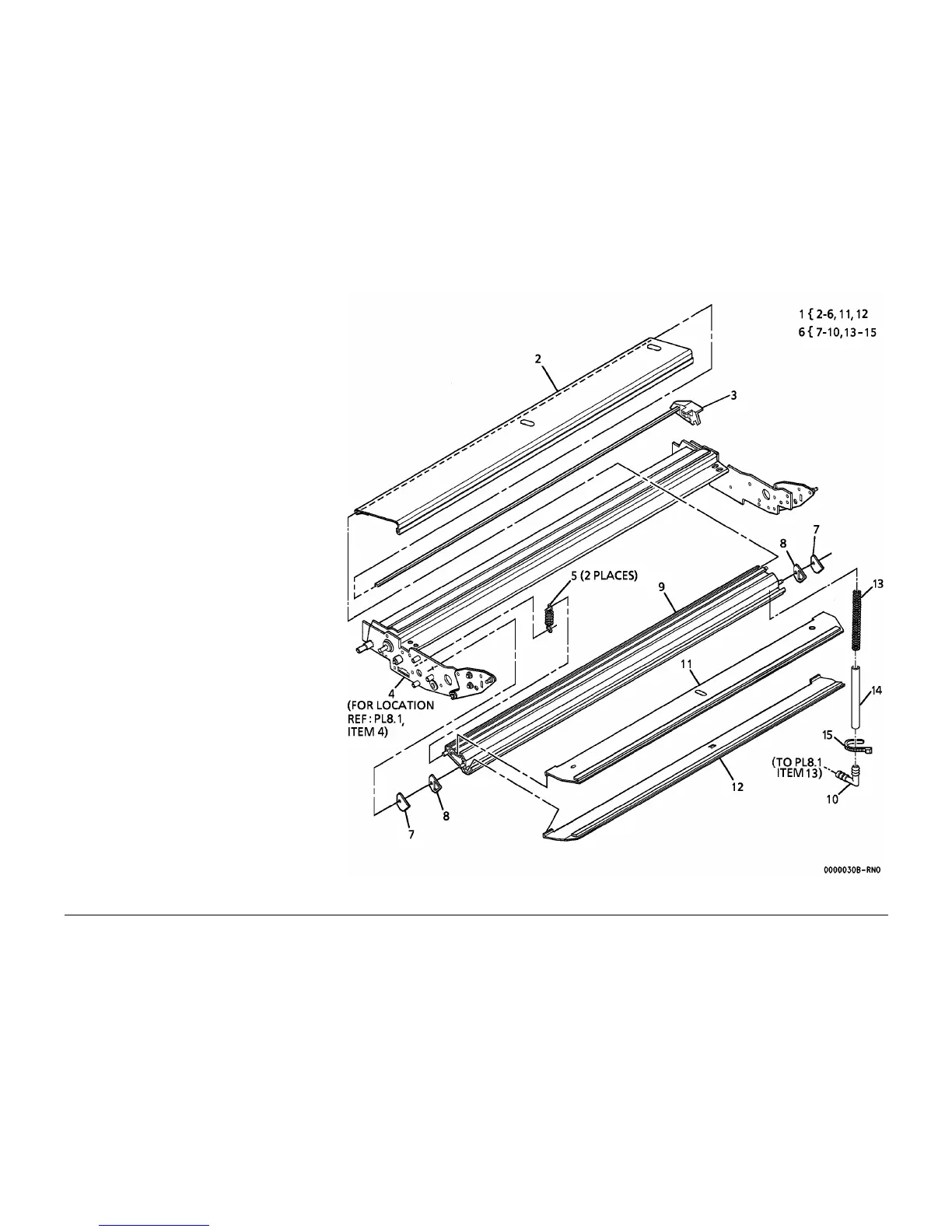

PL 10.3 Fuser Pressure Components

And Moisture Collection

Item Part Description

1 – Part of Media Transport Assembly

(REF: PL 8.1 Item 4)

2 023K00942 Fabric Guide (REP 8.9)

3 003K09130 Fabric Guide Retainer Handle

4 – Transport Frame (P/O PL 10.3

Item 1)

5 009E32490 Spring

6 – Housing Assembly (P/O PL 10.3

Item 1)

7 – End Cap (P/O PL 10.3 Item 6)

8 – Gasket (P/O PL 10.3 Item 6)

9 – Housing (P/O PL 10.3 Item 6)

10 – Adapter (P/O PL 10.3 Item 6)

11 033K02430 Pressure Plate A (REP 8.5)

12 033K02040 Pressure Plate B (REP 8.5)

13 009E46870 Drain Tube Spring

14 052E07900 Moisture Drain Tube

15 420W10201 Cable Tie
