01/02
4-34
8825/8830 Printer
REP 8.11, REP 8.12
Repairs and Adjustments
REP 8.11 Sheet Feed Switch - 8830 and 8825 with Tag/MOD
90
Parts List on PL 8.4
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Remove the Front Pivot Assembly using REP 8.2.
6. Remove the Sheet Drive Roll (REP 8.6).
7. (Figure 1): Remove the Sheet Feed Switch.

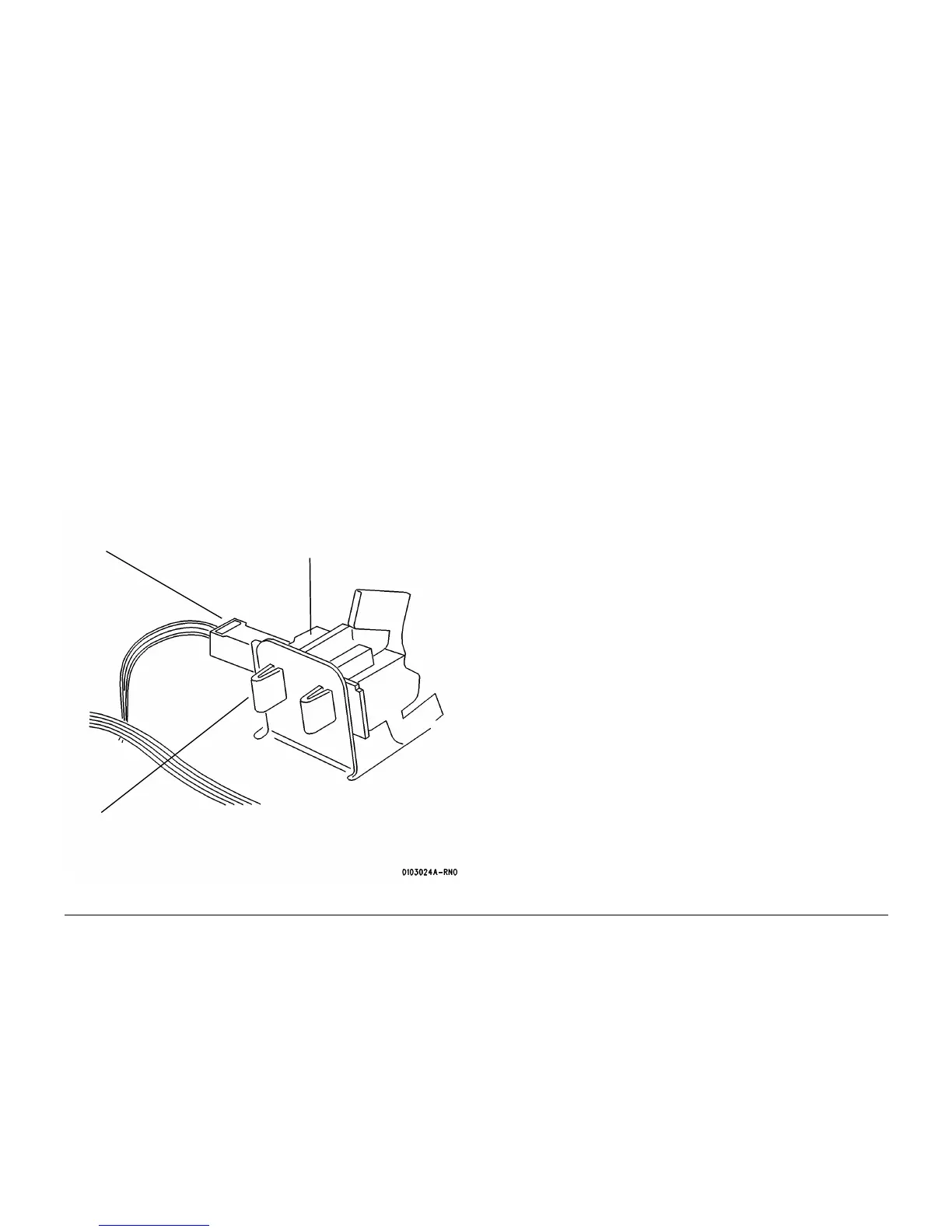

Figure 1 Removing the Sheet Feed Switch
REP 8.12 Registration Pinch Rolls
Parts List on PL 8.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
1
Disconnect the con-
nector
3
Remove the Sheet
Feed Switch
2
Squeeze the tabs
To Next Page
