01/02
4-72
8825/8830 Printer
REP 9.12, REP 9.13
Repairs and Adjustments
4. (Figure 3): Reinstall the Top Shield, taking care not to overtighten the screws.

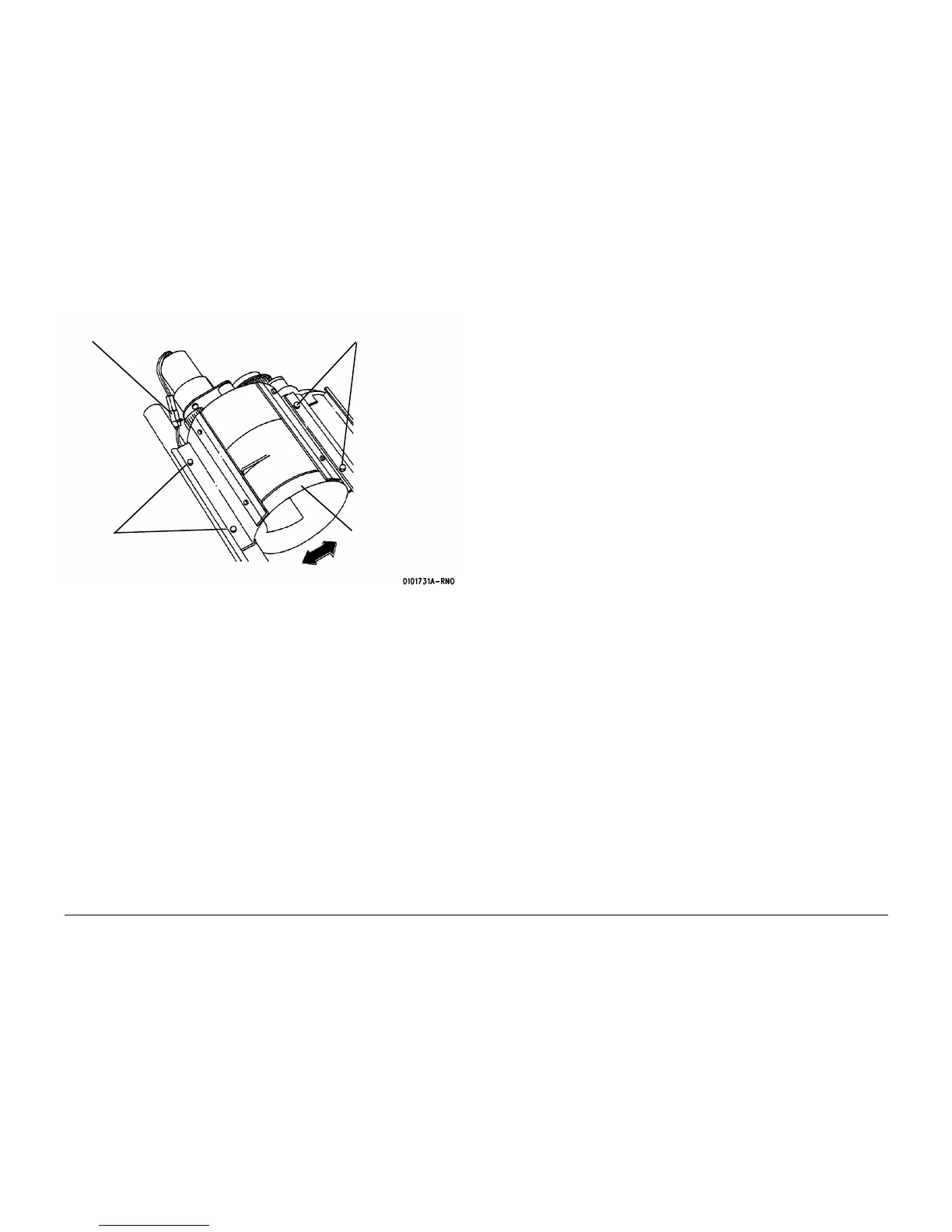

Figure 3 Reinstalling the Top shield
5. Reinstall the Developer Module (REP 9.5).
REP 9.13 Sump Shield
Parts List on PL 9.9
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Remove the Developer Module (REP 9.5).
4
Connect M1
1
Reinstall the Top Shield
2
Reinstall the
screws (2)
3
Tighten the screws (2)
To Next Page
