Xerox 8825 - Job Accounting

01/02
4-71
8825/8830 Printer
REP 9.12
Repairs and Adjustments
CAUTION
To avoid damage to the Drive Plate Seal, always rotate the drive plate in the direction shown in
Figure 2.
3. (Figure 2): Reinstall the Cartridge Drive Plate.

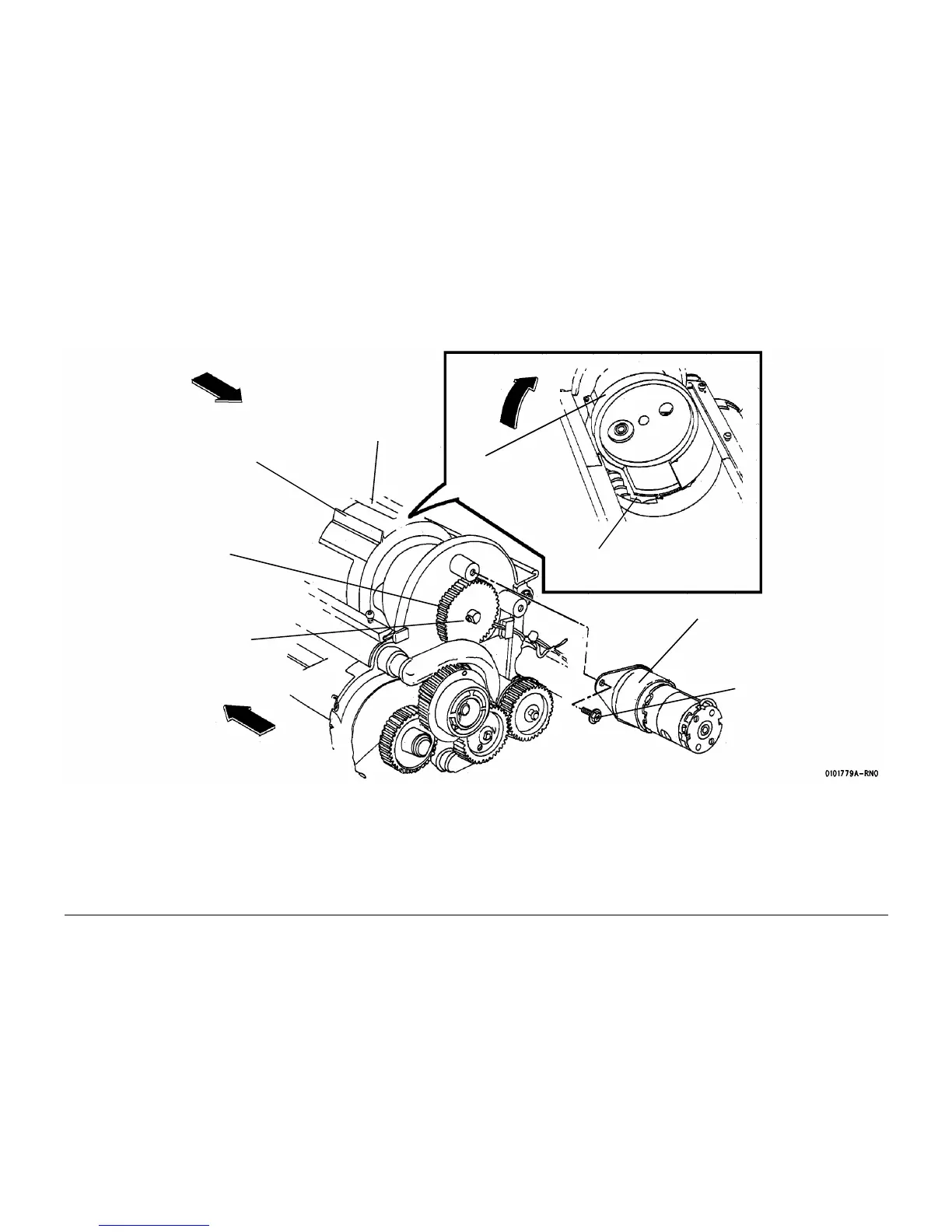

Figure 2 Reinstalling the Cartridge Drive PLate
1
Reinstall the Cartridge
Drive Plate with the
seal up
4
Position the tab at the
bottom
3
Rotate while per-
forming step 4
2
Reinstall the gear
Seal
5
Reinstall the retainer
7
Reinstall the screws (2)
and the Ground Wire
6
Reinstall the motor
