01/02
4-92
8825/8830 Printer
REP 10.2, REP 10.3
Repairs and Adjustments
REP 10.2 Heat Roll
Parts List on PL 10.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord. Allow the Fuser Assem-
bly to cool before the procedure is performed.
NOTE: The art used for this procedure was developed for previous products and may not
match the 8825/8830 configuration exactly.
Removal
1. Remove the Stripper Finger Assembly.
2. Perform the Xerographic Module procedure (REP 9.1) through Step 11. This will leave the
Xerographic Module at the Service Position, handles installed, and the Drum Assembly
removed.
3. Remove the Heat Rod (REP 10.1).
WARNING
Wear protective gloves when handling parts with silicone oil on them. Do not allow sili-
cone oil to contact your eyes. Silicone oil can cause severe eye irritation. Wash your
hands immediately after handling any component covered with silicone oil.
4. (Figure 1): Remove the Heat Roll.

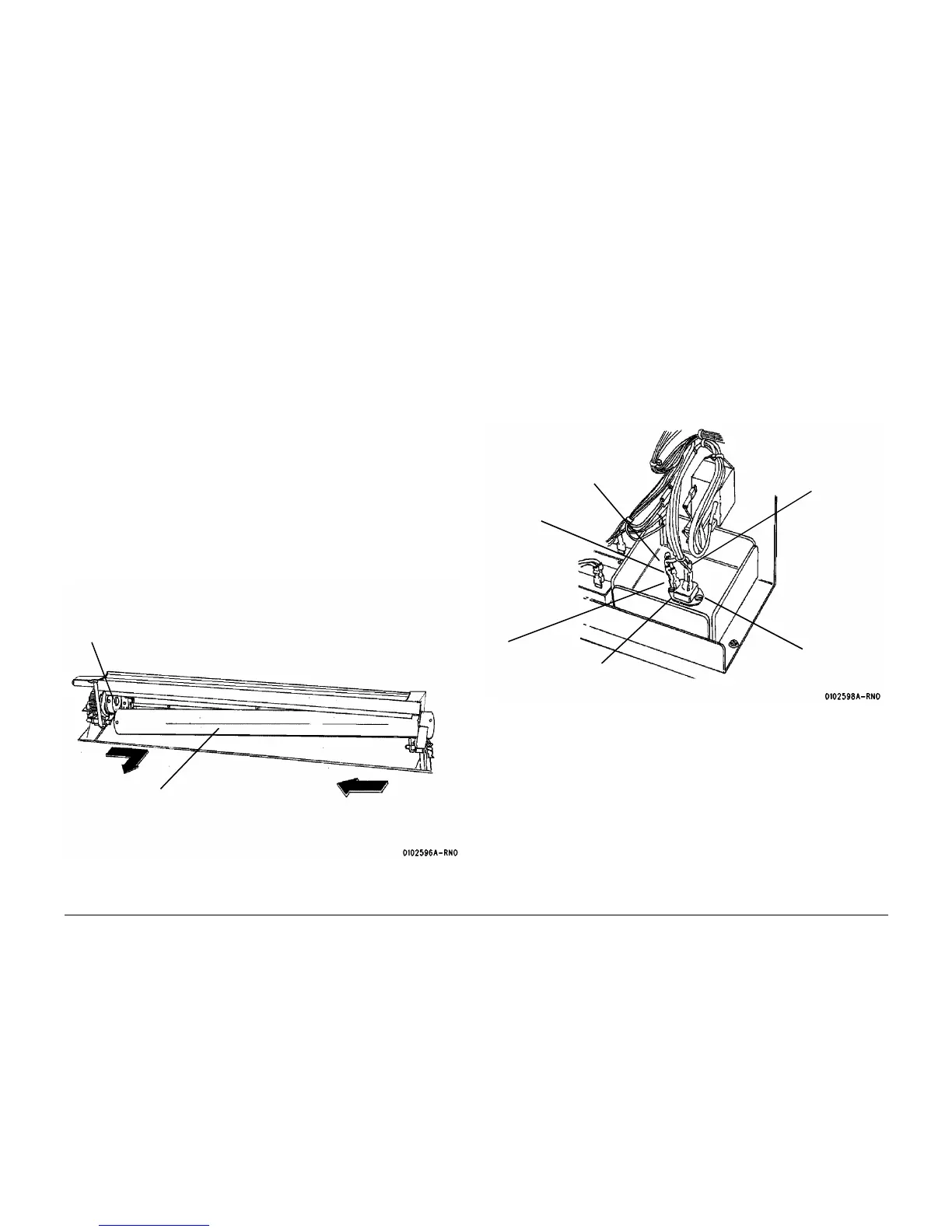

Figure 1 Removing the Heat Roll
REP 10.3 Fuser Triac
Parts List on PL 1.2A
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove the two Right Side Covers.
2. (Figure 1): Remove the Fuser Triac.
Figure 1 Removing the Fuser Triac
Replacement
1. Cover the entire surface where the Fuser Triac mounts to the frame with a film of thermal
compound or install a new Thermal Insulator.
1
Push the pin while
removing the Heat Roll
from the Hub Assembly
2
Remove the Heat Roll
View from Right Side of Printer,
Top Cover removed for clarity
3
Remove the
Fuser Triac
2
Disconnect the
connectors (3)
1
Remove the
screws (2)
White
Thermal
Insulator
Blue
To Next Page
