01/02

5-24

8825/8830 Printer

PL 8.4

Parts Lists

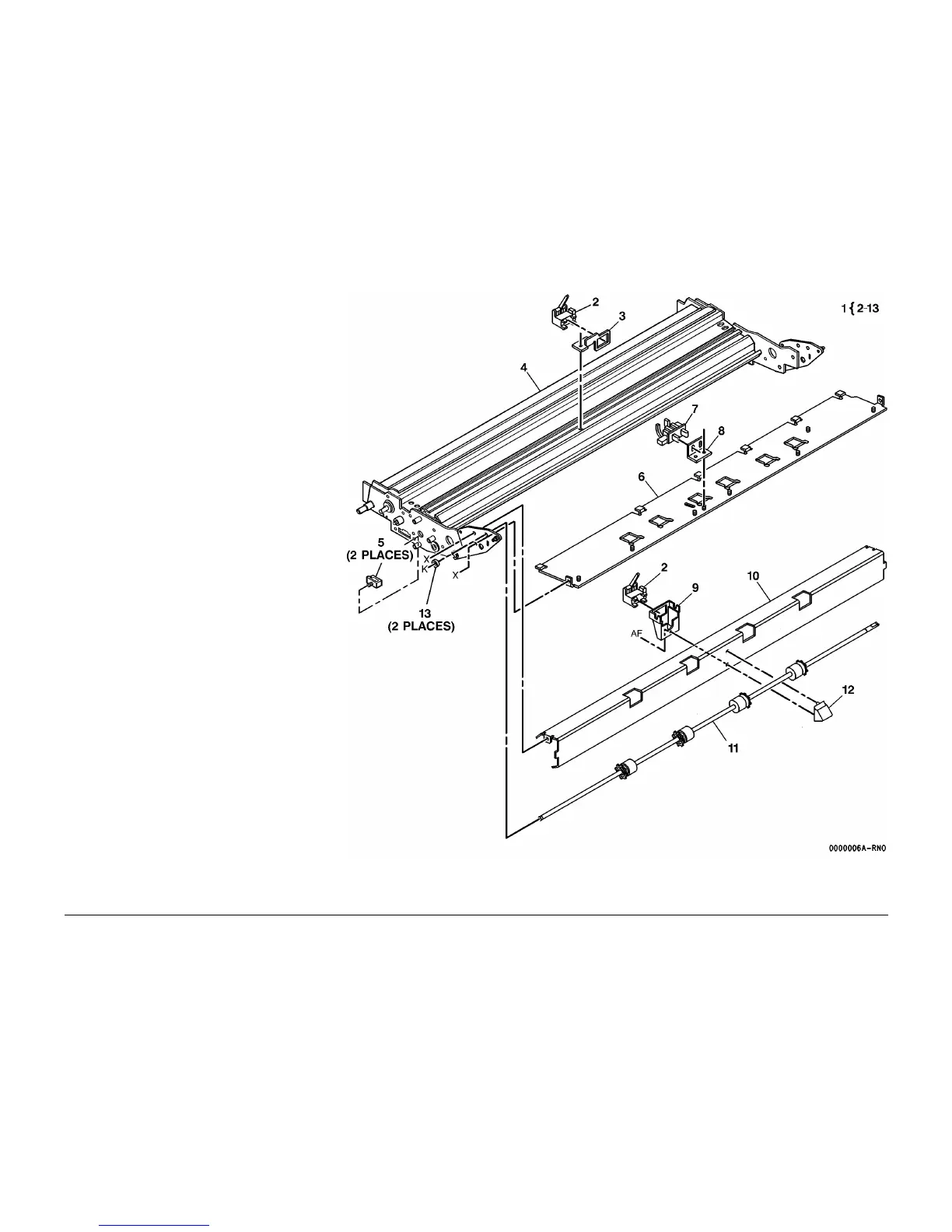

PL 8.4 Media Transport Components

Item Part Description

1 – Part of Media Transport Assembly

(REF: PL 8.1 Item 4)

2 110K08711 Buckle Switch (Upper) (REP 8.4),

Buckle Switch (Lower) (REP 8.2)

3 – Sensor Bracket (P/O PL 8.4 Item

4 – Transport Frame (P/O PL 8.4 Item

5 019E07100 Cable Clip

6 – Sheet Upper Baffle (P/O PL 8.4

Item 1)

7 110K03731 Sheet Feed Switch (8830), Sheet

Feed Switch (8825) (W/TAG 90)

8 – Switch Bracket (P/O PL 8.4 Item 1)

9 049E54980 Sensor Bracket

10 – Exit Support (P/O PL 8.4 Item 1)

11 006K15670 Exit Roll (REP 8.16)

12 032E10830 Stacker Support

13 – Bushing (P/O PL 8.4 Item 1)
