01/02
4-40
8825/8830 Printer
REP 8.16
Repairs and Adjustments
REP 8.16 Exit Roll
Parts List on PL 8.4
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Latch the Xerographic Module at the Service Position (REP 9.2).
2. Remove the Media Transport Assembly (REP 8.1).
3. Remove the Media Exit Switch (REP 8.2).
4. (Figure 1): Remove the Exit Roll from the Front Pivot Assembly.

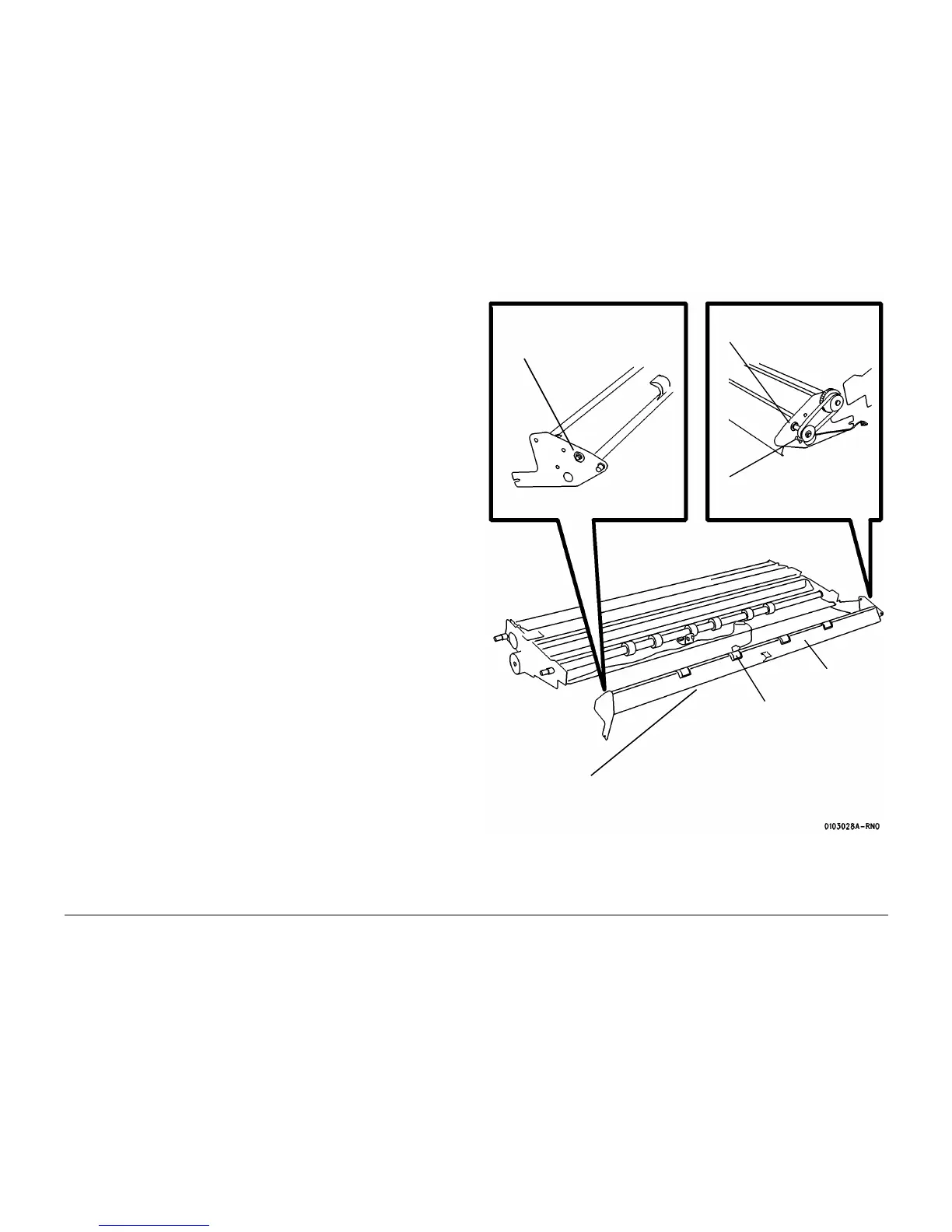

Figure 1 Removing the Exit Roll
1
Remove the E-ring
3
Remove the E-ring
2
Remove the belt, the E-ring and
the pulley
4
Remove the Exit Roll by moving it to the
right until it is free of the bushing on the
left side, then lift the roll out of the Front
Pivot Assembly
Exit Roll
Front Pivot
Assembly
Left Side
To Next Page
