Xerox 8825 - PL 7.6 Roll Supply Drawer Components (Part 4 of 4)

01/02
5-18
8825/8830 Printer
PL 7.6
Parts Lists

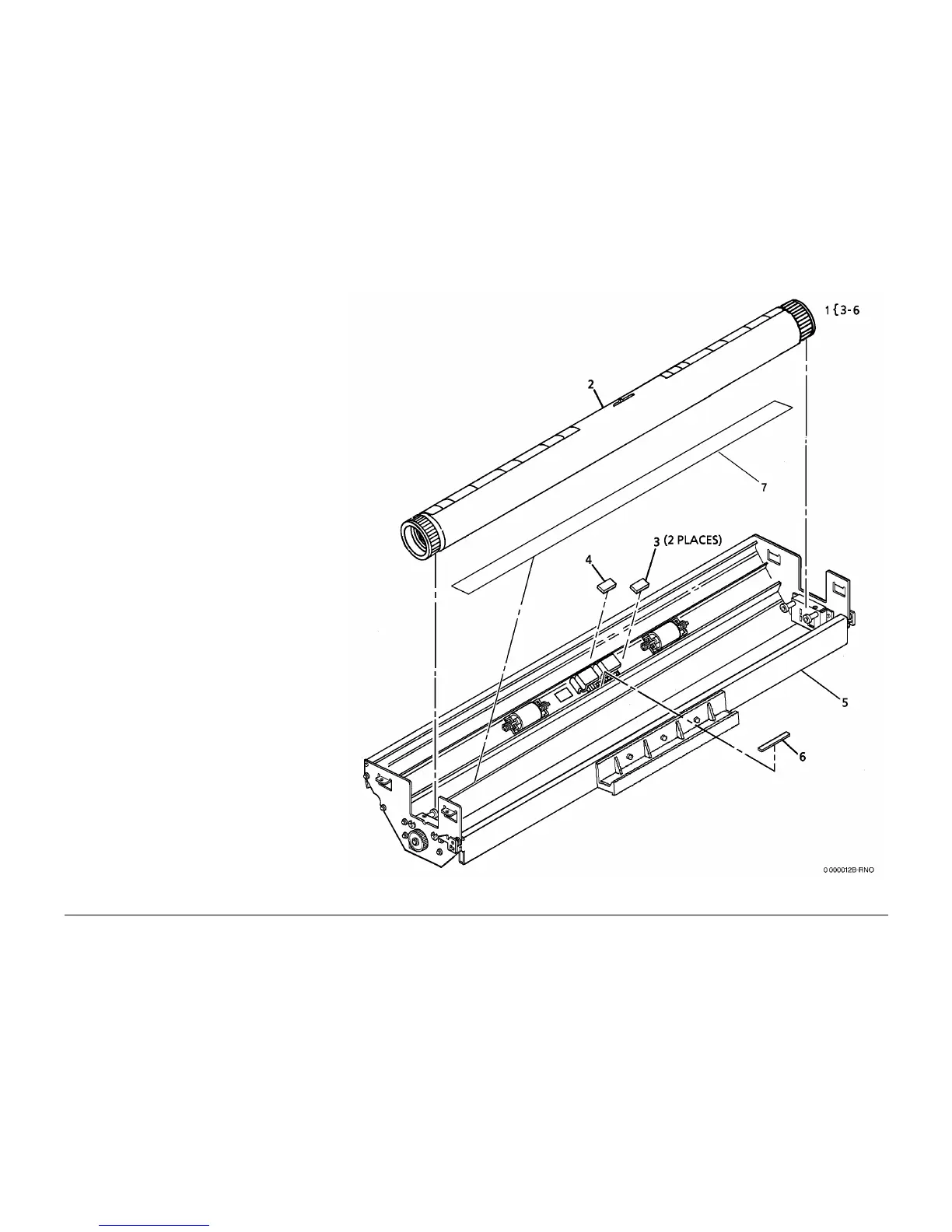

PL 7.6 Roll Supply Drawer
Components (Part 4 of 4)
Item Part Description
1 – Part of Roll Supply Drawer
Assembly (REF: PL 7.1 Item 3)
2 052K03580 Roll Support Tube Assembly
3 092E22541 Label (Push Here)
4 092E36431 Label (Media Lead)
5 – Drawer Frame (P/O PL 7.6 Item 1)
6 092E22560 Label (Pinch Arrows)
7 600K89510 Mylar baffle Extension Kit (W/TAG
31)
